DXP DVI, DXP DVI Pro, and DXP HDMI Series • Matrix Software 90
• Mute-Output settings — Displays the Channel Mute Settings window. On this
screen, use the slider bar to select an output to mute, then select the Video check
box in the Mute field. To mute all outputs at once, select the All check box.

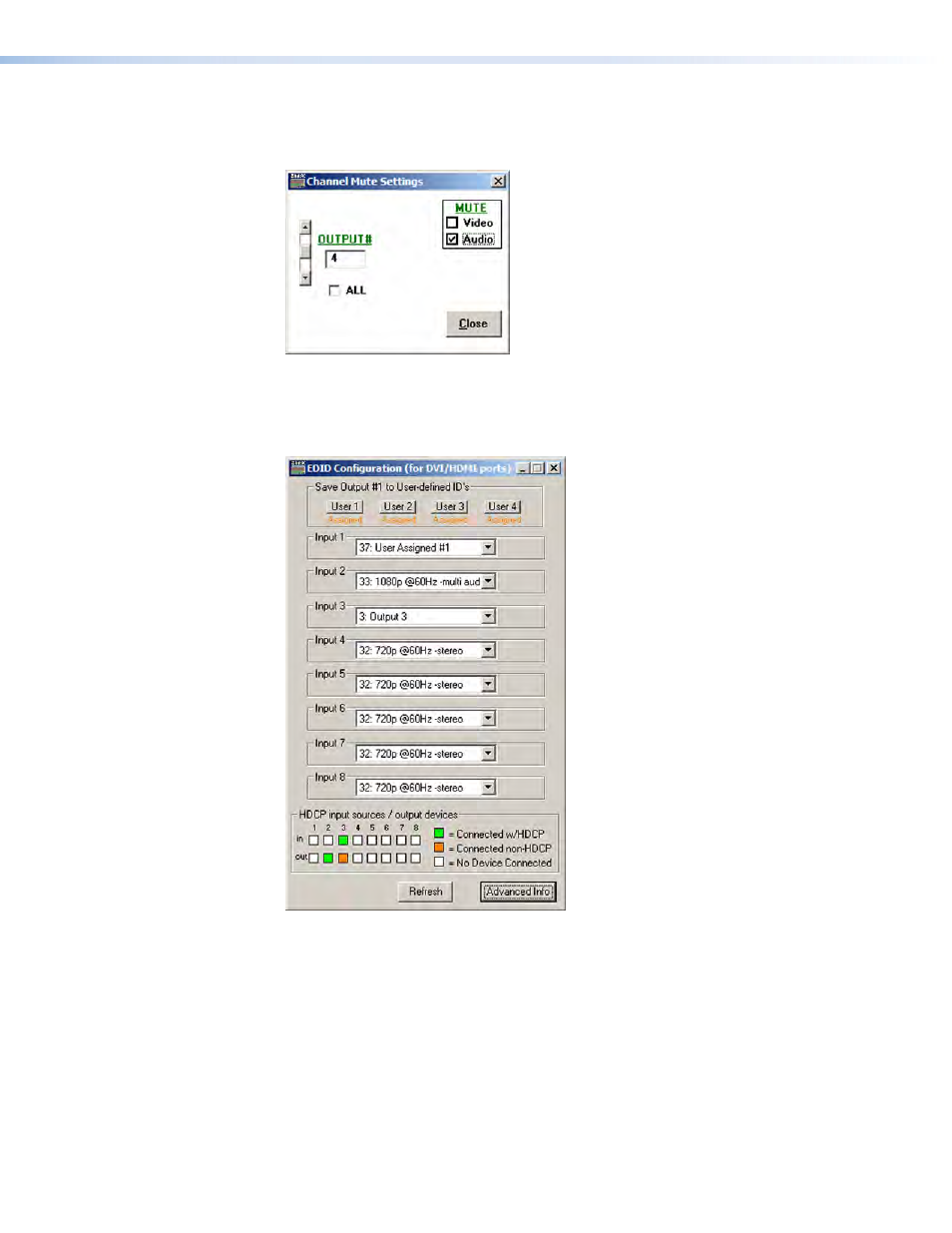

Figure 86. Channel Mute Settings Window
• EDID settings — Opens the EDID Configuration window (shown below), which
enables you to set the EDID for selected inputs, and to save Output 1 to any of four
user defined outputs.
Figure 87. EDID Configuration Window
