• Room configuration — Allows you to assign outputs to rooms or delete outputs
from rooms.
1. Drag one or more of the small boxes representing outputs to one of the Room
boxes.
2. Repeat step 1 as desired to form additional rooms.
3. Click Take to establish the rooms.
NOTE: A room is a subset of outputs that are logically related to each other, as
determined by the operator. The DXP switcher supports up to 10 rooms,
each of which can consist of from 1 to 8 outputs.

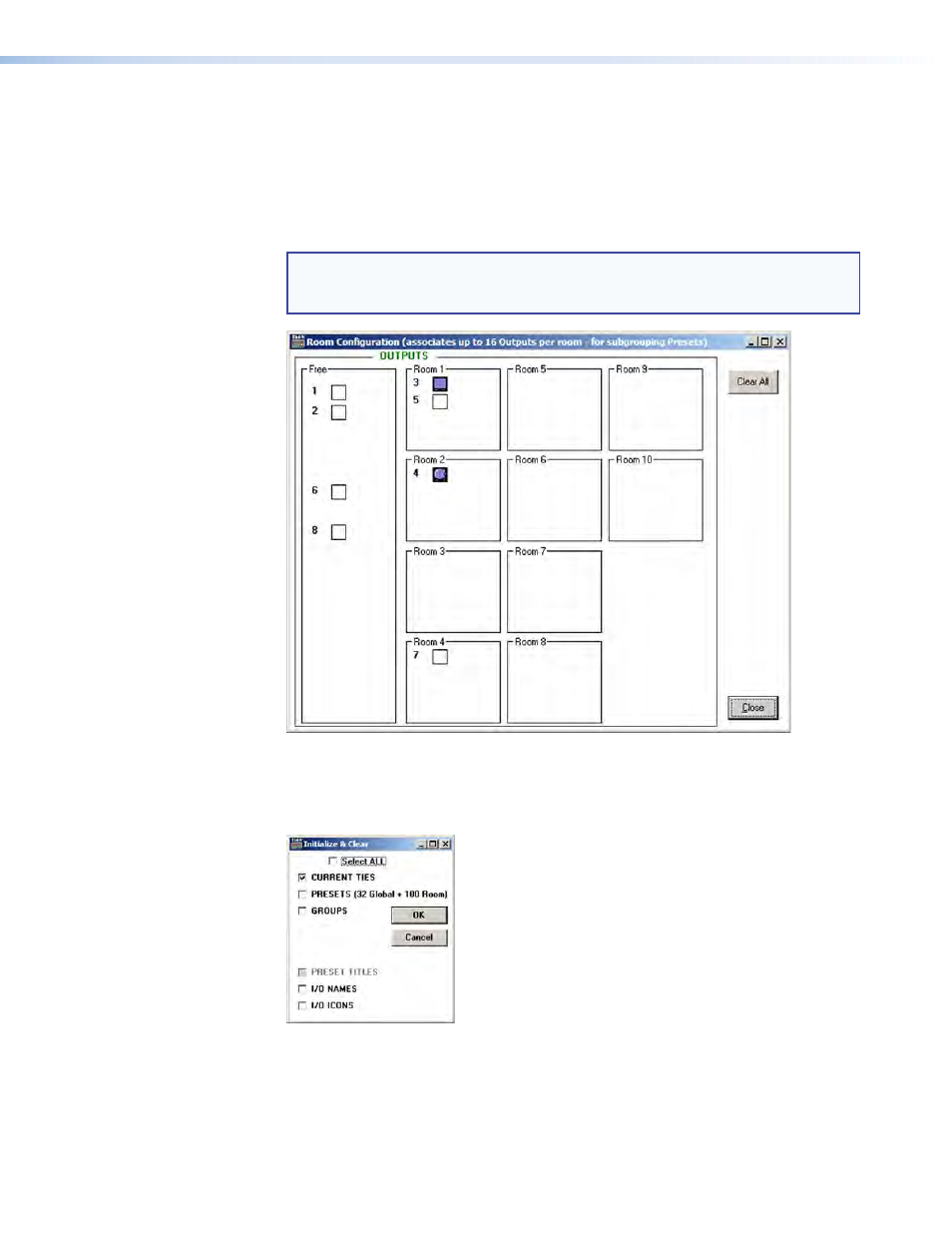

Figure 94. Room Configuration Window
• Initialize — Displays the Initialize & Clear window, on which you can select,
initialize, and clear any or all of the following: ties, presets, groups, preset titles, I/O
icons, and I/O icon names.
Figure 95. Initialize & Clear Window
