DXP DVI, DXP DVI Pro, and DXP HDMI Series • Operation

34

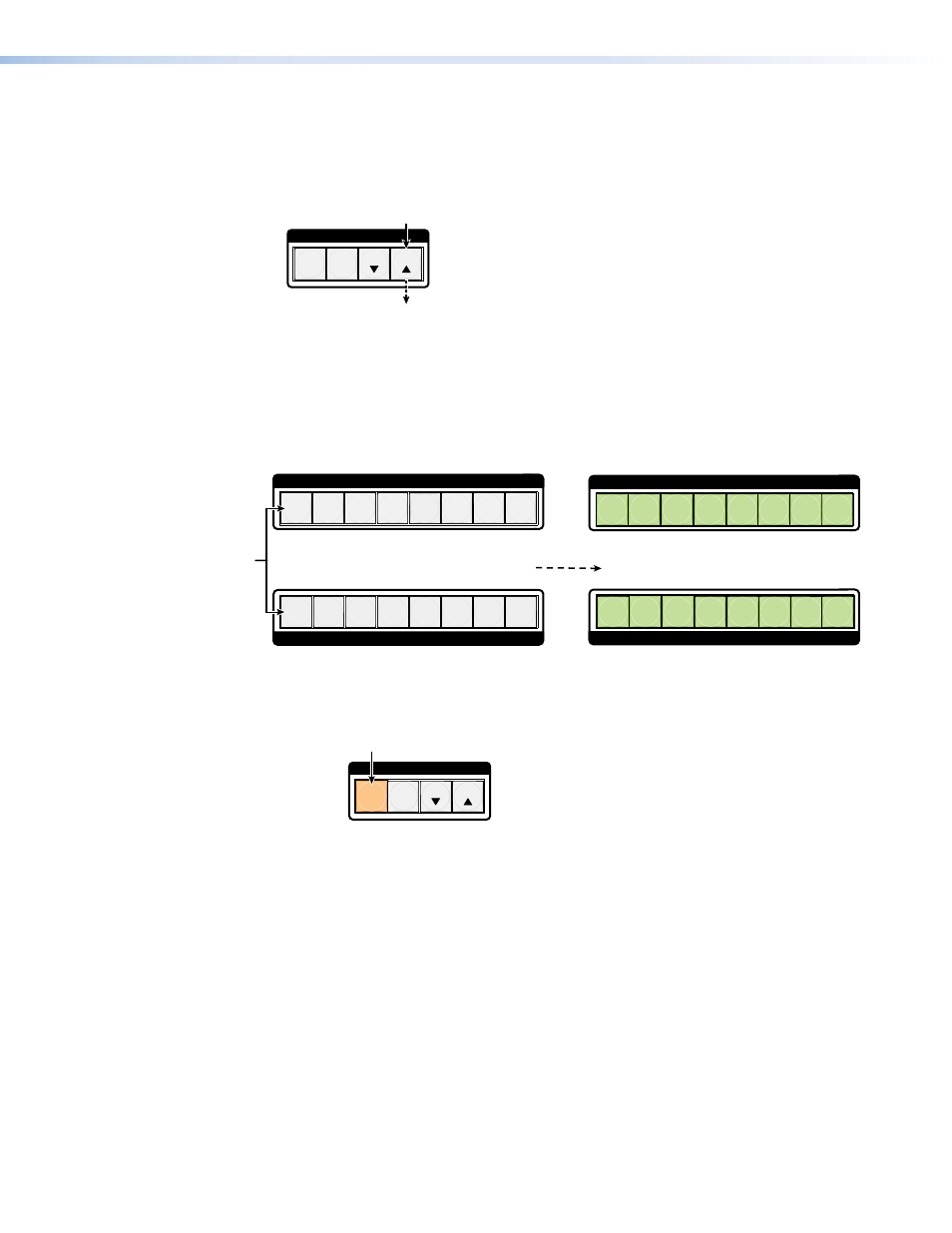

Example 7: Grouping Inputs and Outputs

In the following example, several switcher inputs and outputs are assigned to groups. The
steps show the front panel indications that result from your actions.

1.

Press and release the Esc button.

C O N T R O L

PRESET

ENTER

ESC

VIEW

Press the Esc button to clear all selections.

The button blinks once.

Figure 47.

Clear All Selections

2.

To enter I/O group mode, press and

hold the Input 1 and Output 1 buttons until all

buttons that are not grouped light green (approximately 2 seconds).

1 2 3 4 5 6 7 8

OUTPUTS

1 2 3 4 5 6 7 8

INPUTS

OUTPUTS

INPUTS

1 2 3 4 5 6 7 8

Release the Input 1 button
and Output 1 button.

Ungrouped input and
output buttons light.

2 seconds

Press and

hold

the Input 1 and
Output 1 buttons.

1 2 3 4 5 6 7 8

Figure 48.

Select I/O Group Mode

3.

Press and release the Enter button to select group 1.

C O N T R O L

PRESET

ESC

VIEW

1

3

2

4

Press and release the Enter button to select group 1.
The button lights to indicate the selection.

Group #:

ENTER

Figure 49.

Select I/O Group 1
