DXP DVI, DXP DVI Pro, and DXP HDMI Series • HTML Operation

119

Control Tab

Use the

Control

tab to access the Set and View Ties page (click the

User

Control

link)

and the Global Presets page (click the

Presets

link).

Set and View Ties Page

On the Set and View Ties page, you can create and undo ties, mute and unmute outputs,
and assign EDID values to inputs (see figure

115). To access the Set and View Ties page,

select the

Control

tab, then click

User

Control

in the left sidebar menu.

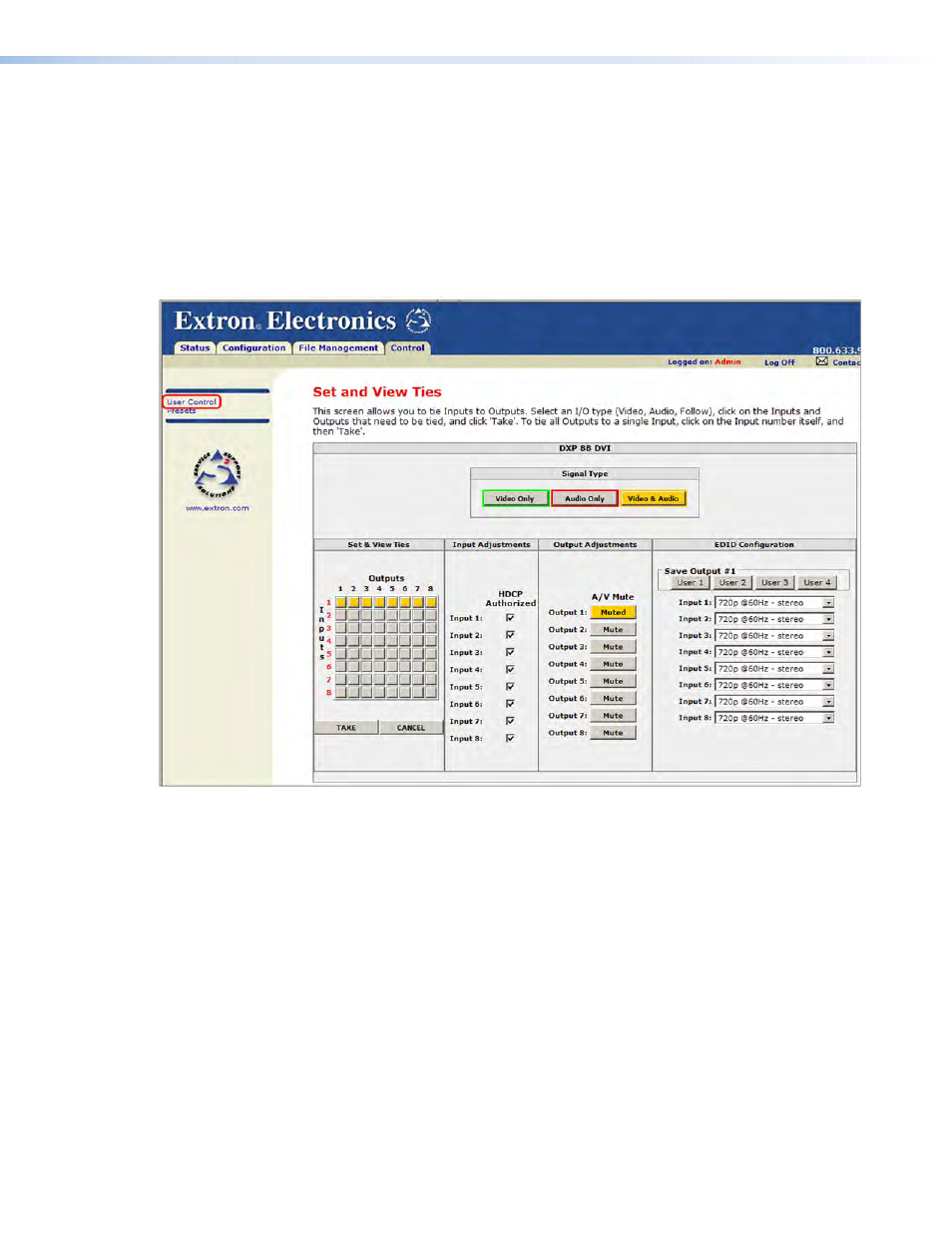

Figure 115.

Set and View Ties Page

The Set and View Ties screen consists of the following major sections:

Set & View Ties — Consists of a matrix of input (rows) and output (columns)
selection buttons.
To create a tie using this screen:

1.

Move the mouse over the matrix of input and output selection buttons. Click on
a square to create a preliminary tie of the input and output associated with that
button (if they are not already tied) or a preliminary untie (if the input and output
are tied). A “

P

” (for preliminary) appears on the button.

If you lose track of the input and output associated with a specific button, let
the mouse rest over one of the tie buttons for a moment. A field pops up (as
shown in

figure 116

on the next page) that identifies the input and output for

that button.
