DXP DVI, DXP DVI Pro, and DXP HDMI Series • Operation

35

4.

Press and release the desired input and output buttons for the group you are creating.
(In the example below, inputs and outputs 1 through 4 will comprise group 1.)

Press and release the Input 1 through Input 4 buttons.
The selected buttons light.

Press and release the Output 1 through Output 4 buttons.
The selected buttons light.

5 6 7 8

OUTPUTS

5 6 7 8

INPUTS

1 2 3 4

1 2 3 4

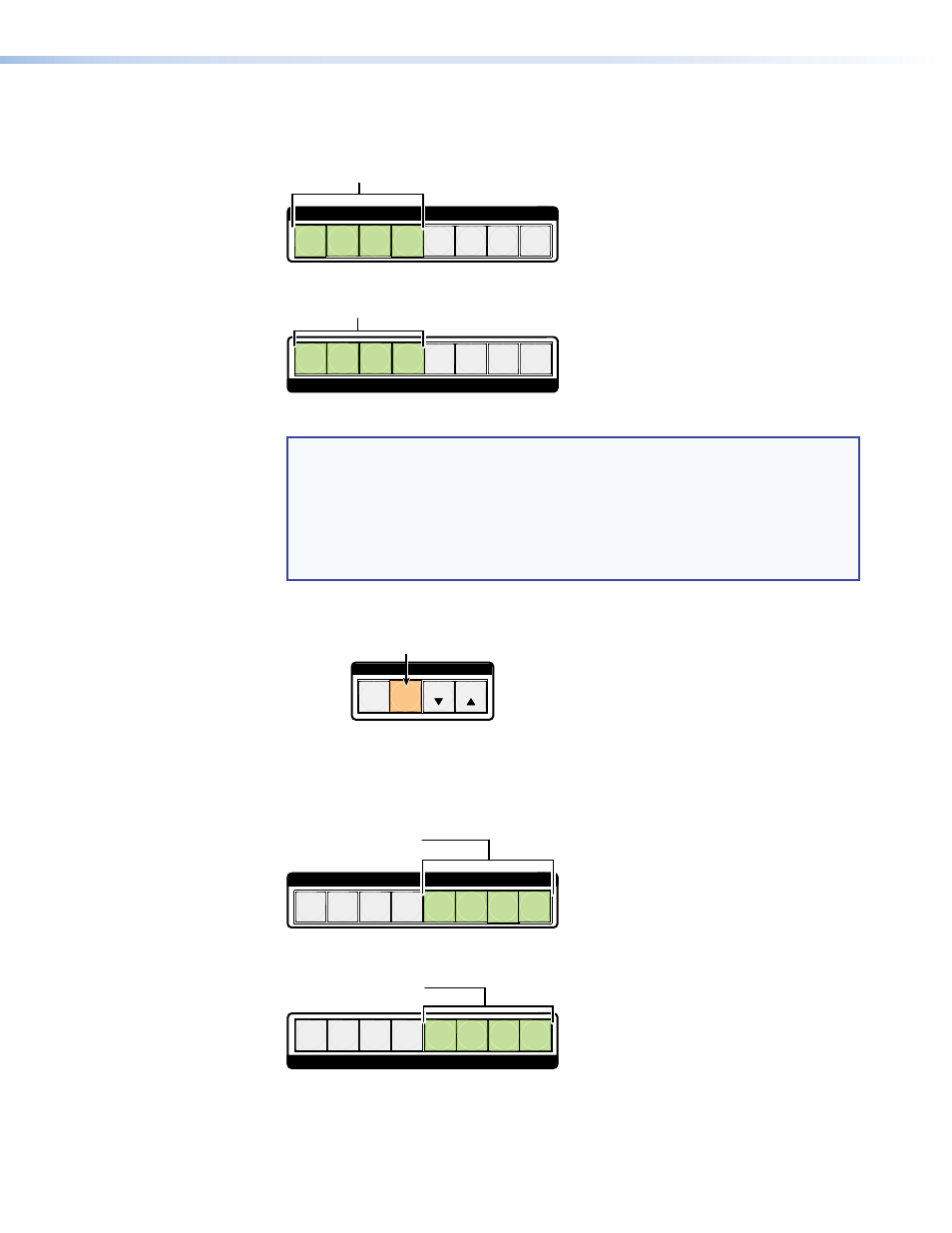

Figure 50.

Assign Inputs and Outputs to Group 1

NOTES:

I/O groups are protected when front panel lock mode 2 is selected.

You can view the groups in lock mode 2, but you cannot change them
from the front panel (see “

Locking and Unlocking the Front Panel

(Executive Modes)

on page

39).

If front panel lock mode 2 is selected and you try to perform this step,
the button presses are ignored and the Enter, Video, and Audio buttons
blink.

5.

Press and release the Preset button to select group 2.

C O N T R O L

PRESET

ENTER

ESC

VIEW

1

3

2

4

Press and release the Preset button to select group 2.
The button lights to indicate the selection.

Group #

Figure 51.

Select I/O Group 2

6.

Press and release the desired input and output buttons for group 2. (In the example
below, inputs and outputs 5 through 8 will comprise group 2.)

Press and release the Input 5 through Input 8 buttons.
The selected buttons light.

Press and release the Output 5 through Output 8 buttons.
The selected buttons light.

1 2 3 4

OUTPUTS

1 2 3 4

INPUTS

5 6 7 8

5 6 7 8

Figure 52.

Assign Inputs and Outputs to Group 2
