DXP DVI, DXP DVI Pro, and DXP HDMI Series • Operation

46

Configuration Worksheets

Instead of trying to remember the configuration for each preset, use worksheets to record
this information. Make copies of the

blank worksheet

on page

48, and use one sheet

for each preset configuration. Cross out all unused or inactive inputs and outputs. The
worksheet is generic for all models of DXP. Disregard or cross out boxes for inputs and
outputs that your switcher does not have.

Worksheet Example 1: System Equipment

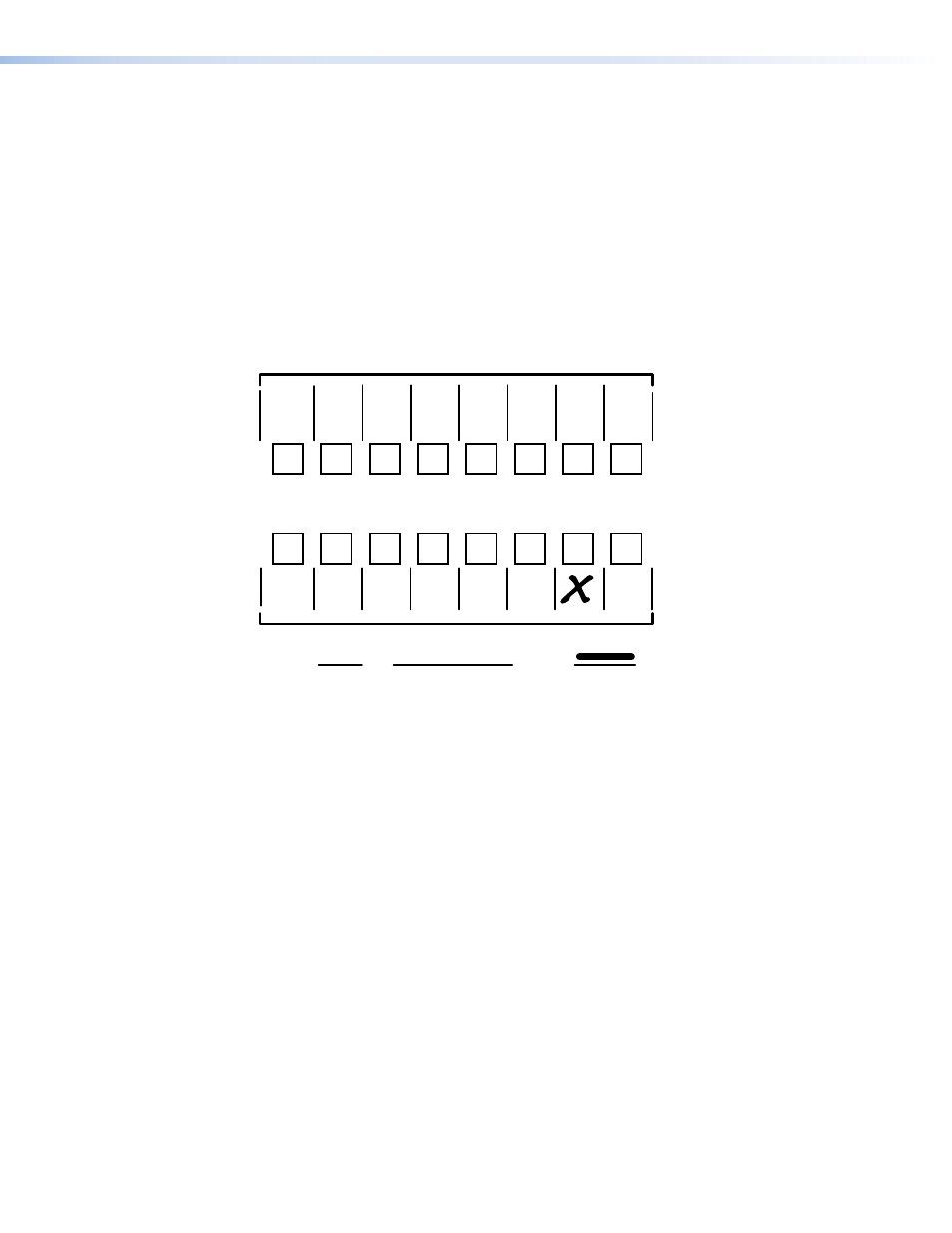

Figure

67 shows a worksheet for a DXP in a fictional organization with the system

hardware annotated. Output 7 has no connection in this organization, so it has been
crossed out on the worksheet.

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

Preset #

Title:

Video ties:

Fill in the preset number and use colors, dashes, and so forth to make connecting lines.

VTG

400DVI

VTR

#2

VTR

#1

Weekly status mtg

3

DVI PRO/

HDMI

Camera

#2

DVI PRO/

HDMI

Camera #1

Main

podium

Main hall

#1

Main hall

#2

Podium

monitor

#1

Conf.

Room

Podium

monitor

#2

Demo

Room

Lobby

monitor

Editing

Station

#1

1

Input Sources

Output Destinations

DVI PRO/

HDMI

Camera

#3

Editing

Station

#2

Figure 67.

Worksheet Example 1: System Equipment

Inputs include VTRs, editing stations, DVI Pro/HDMI cameras, and an Extron VTG 400DVI.
Output devices include various DVI Pro/HDMI monitors.
The VTG 400DVI video test generator connected to input 6 enables a video test pattern
to be sent to one, several, or all output devices for problem isolation or adjustment
purposes.
