Single Port KVM over IP
5 / 88
1. The quick installation guide
IP-KVM switch redirects local keyboard, mouse and video data to a remote administration
console. All data is transmitted via IP. IP-KVM switch can be used in a multi administrator
and multi server environment as well. Besides, IP-KVM switch is a KVM switch, which can
also be used with a local console.
Package contents
Base unit - Single port IP-KVM Switch 1 PC
User’s manual 1 PC
CD-ROM (software utilities and User’s manual) 1 PC
AC to DC Power Adapter (DC 5V / 2.5A) 1 PC
Power Cord cable (6 feet) 1 PC
Rack Mount Kit 1 SET
Null modem cable (6 feet) 1 PC
USB A-to-B cable (6 feet) 1 PC
3-to-3 KVM cable (3 feet) 1 PC
IP-KVM switch Diagrams

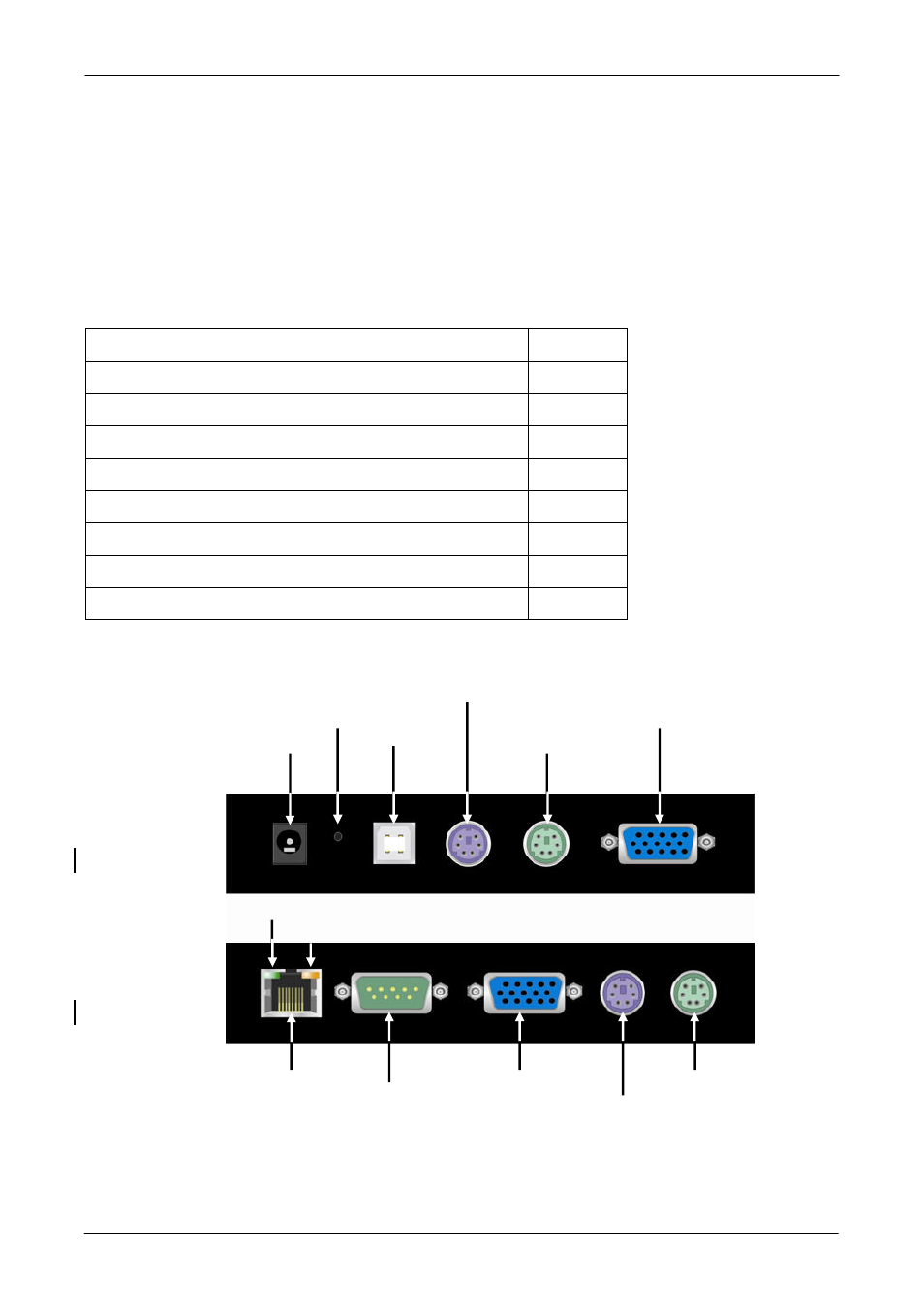

Figure 1-1 The connectors of single port IP-KVM switch host and console side
Console side
Power
Reset
USB
Host keyboard
Host mouse
Host VGA
LAN
Serial Port
Console VGA
Console keyboard
Console mouse
Green LED ：Display Link Status
Orange LED：Display Speed Status (10/100Mbps)
Host side
