Single Port KVM over IP
43 / 88
• Click “Browse” button and select the image file.

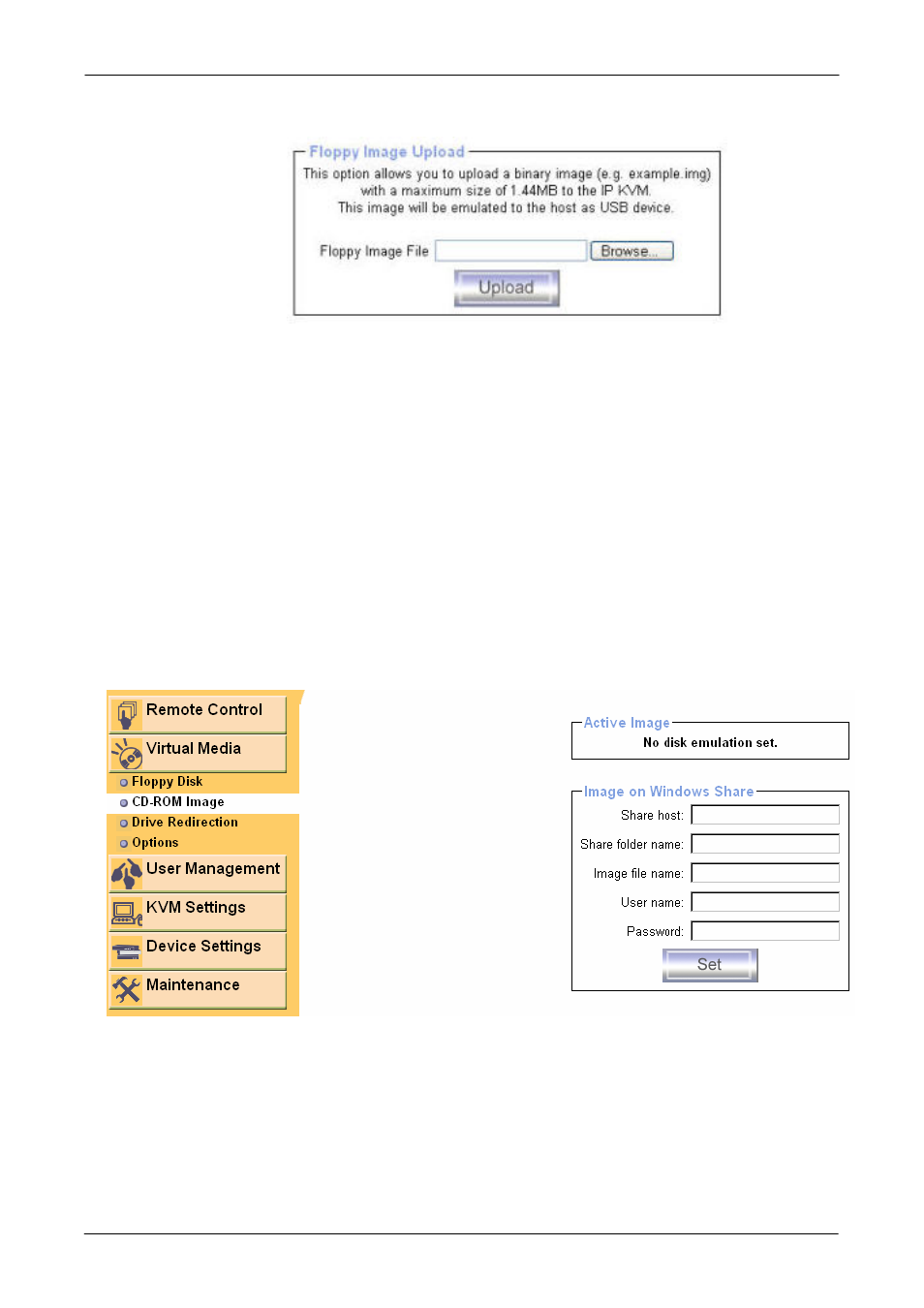

Figure 6-7. Select Image File
The maximum image size is limited to 1.44MB. To user a larger image see
section 6.3.2.
• Click “Upload” button to upload the chosen image file into the IP-KVM switch’s
onboard memory. This image file is kept in the onboard memory of the IP-KVM
switch until the end of the current session, as you logged out, or initiated a
reboot of the IP-KVM switch.
6.3.2 CD–ROM Image
Use Image on Windows Share (SAMBA)
To include an image from a Windows share, select “CD-ROM” from the submenu.
Figure 6-8. Selecting CD ROM
