Video Settings through the remote console

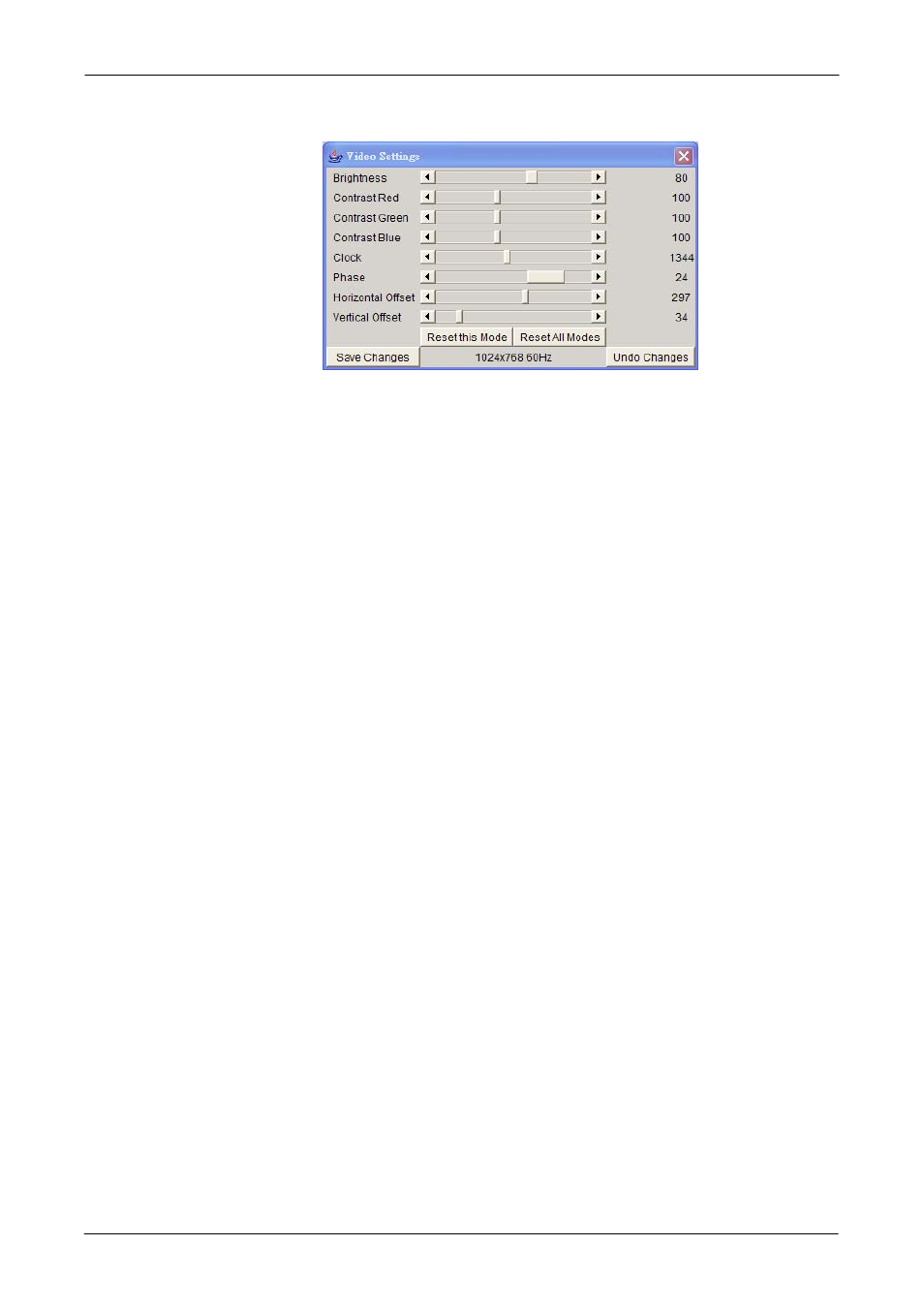

Figure 5-10. Video Settings Panel
Brightness Controls the brightness of the picture
Contrast Controls the contrast of the picture
Clock Defines the horizontal frequency for a video line and depends
on the video mode. Different video card types may require different
values here. The default settings in conjuction with the auto
adjustment procedure should be adequate for all common
configurations. If the picture quality is still bad after auto
adjustment you may try to change this setting together with the
sampling phase to achieve a better quality.
Phase Defines the phase for video sampling, used to control the
display quality together with the setting for sampling clock.
Horizontal Position Use the left and right buttons to move the picture
in horizontal direction while this option is selected.
Vertical Position Use the left and right buttons to move the picture in
vertical direction while this option is selected.
Reset this Mode Reset mode specific settings (Clock , Phase and
Position) to the factory-made defaults.
Reset all Modes Reset all settings to the factory-made defaults.
Save changes Save changes permanently
Undo Changes Restore last settings
• Refresh Video
Click to run this menu item for retrieving the whole video again from the
controlled host and displayed on Remote Console. In normal situation, only
changed parts of video will be packed and sent from IP-KVM switch, for
