Single Port KVM over IP

45 / 88

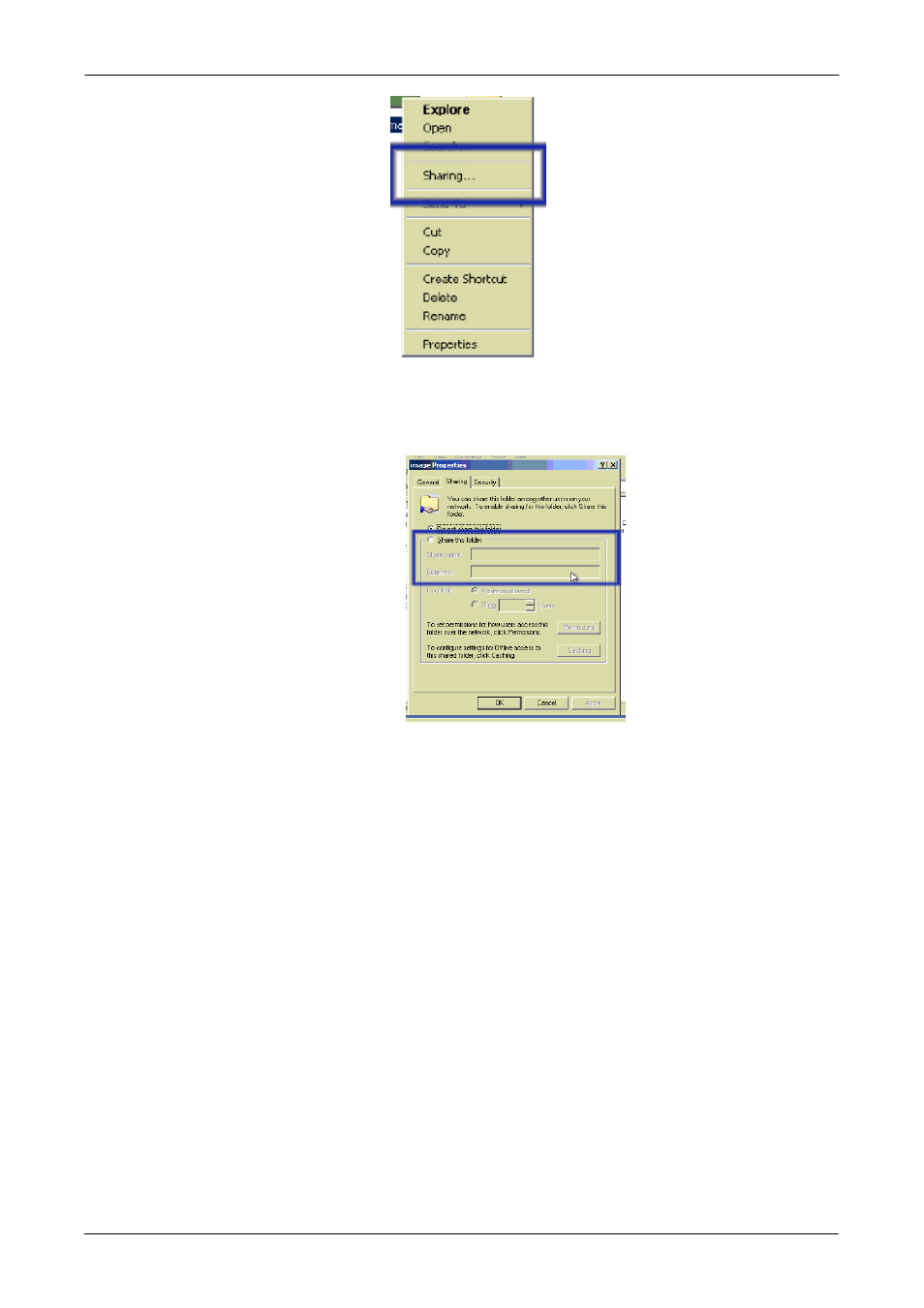

Figure 6-10. Explorer context menu

Select “Sharing” to open the configuration dialog.

Figure 6-11. Share configuration dialog

Adjust the settings for the selected directory.

• Activate the selected directory as a share. Select “Sharing this folder”.

• Choose an appropriate name for the share. You may also add a short

description for this folder (input field “Comment”).

• If necessary, adjust the permissions (button “permissions”).

• Click “OK” to set the options for this share.

UNIX and UNIX-like OS (Sun Solaris, and Linux)

If you like to access the share via SAMBA, SAMBA has to be set up properly.
You may either edit the SAMBA configuration file /etc/samba/smb.conf, or use
the Samba Web Administration Tool (SWAT) or WebMin to set the correct
parameters.
