DC OEM MODULE FOR USE WITH GERAPID CIRCUIT BREAKERS
APPENDIX G Accessories and Installation Drawings.
40 Design and specifications are subject to change without notice S47183Ee rev.01 2011-04-26
APPENDIX G – Accessories & Installation Drawings
Accessories

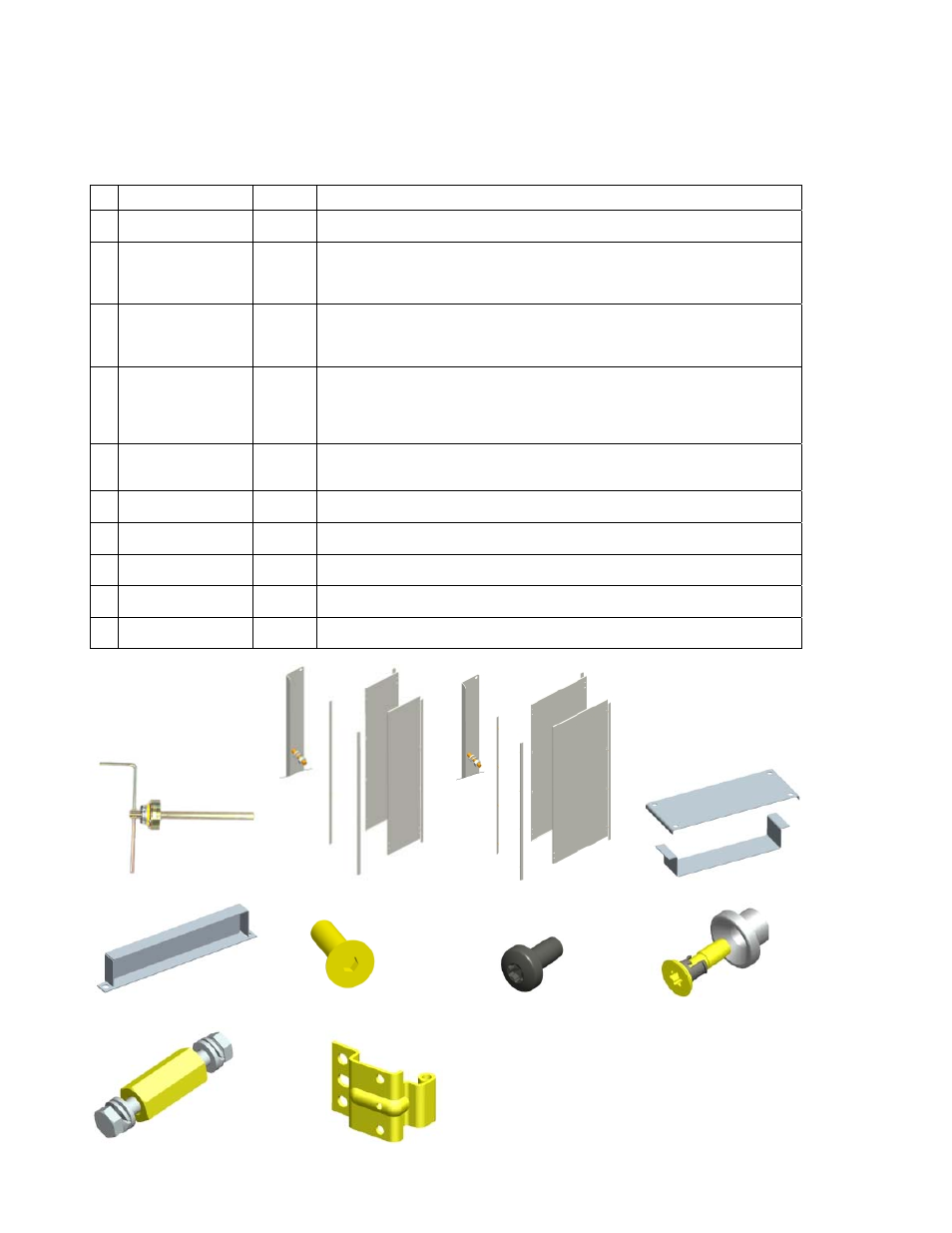

Table G-1 List of accessories for DC OEM Module
Catalogue Name Cat No. Description
A
DCOEMCRANK 700695
Crank handle for manual racking. Consists of:
 1 pc of crank handle.
B
DCOEMCOVER15 700696
Side cover kit for 450 mm depth cable compartment. Consists of:
 2 pcs of side cover
 4 pcs of edge trim strip
 16 pcs of bolting sets like in 289160.
C
DCOEMCOVER18 700697
Side cover kit for 750 mm depth cable compartment. Consists of:
 2 pcs of side cover
 4 pcs of edge trim strip
 20 pcs of bolting sets, like in 289160.
D
DCOEMCONNECTOR 700698
Cable channel connector for connecting top cable channels. Sufficient for
connecting eleven (11) OEM modules side-by-side. Attachment requires four (4)
screws M6x12 (289158) per single cable duct connector. Consist of:
 10 pcs of cable duct connector
 10 pcs of cable duct connector cover
E
DCOEMCHANCOVER 700699
End covers for top cable channels. Fixation requires four (4) screws M6x12 (289158)
per single cover. Consist of:
 10 pcs of cable channel covers
F
DCOEMM8x25KIT 700701
Screws for fixation of the single Gerapid breaker to the single Trolley. Consist of:
 4 pcs of countersunk screws M8x25
G
DCOEMM6x12KIT 289158
Screws M6x12 use for fixation of user components to the skeleton frame. Consist of:
 500 pcs of screws M6x12
H
DCOEMCOVERFIX 289160
Side covers fixing kit. Consist of:
 100 fixing sets for side covers installing..
I
DCOEMCOUPLINGS 289169
Module coupling kit. Consist of:
 12 bolting sets for connecting two adjacent Module frames.
J
DCOEMHINGES 289709
Hinges kit. Single hinge requires one screw M6x12 (289158). Consist of:
 12 pcs of hinges for doors.
“A” – DCOEMCRANK “B” - DCOEMCOVER15 “C” - DCOEMCOVER18 “D” - DCOEMCONNECTOR
“E” – DCOEMCHANCOVER “F” – single M8x30 screw “G” – single M6x12 screw “H” – single side cover
connector
“I” – single frame bolting connector “J” – single hinge
