EtherNet/IP 23
Set Attribute Single Example
This example shows how to set the “LED Monitor (Function)” (E43) to show the output current on the LED
display, by explicit messaging.

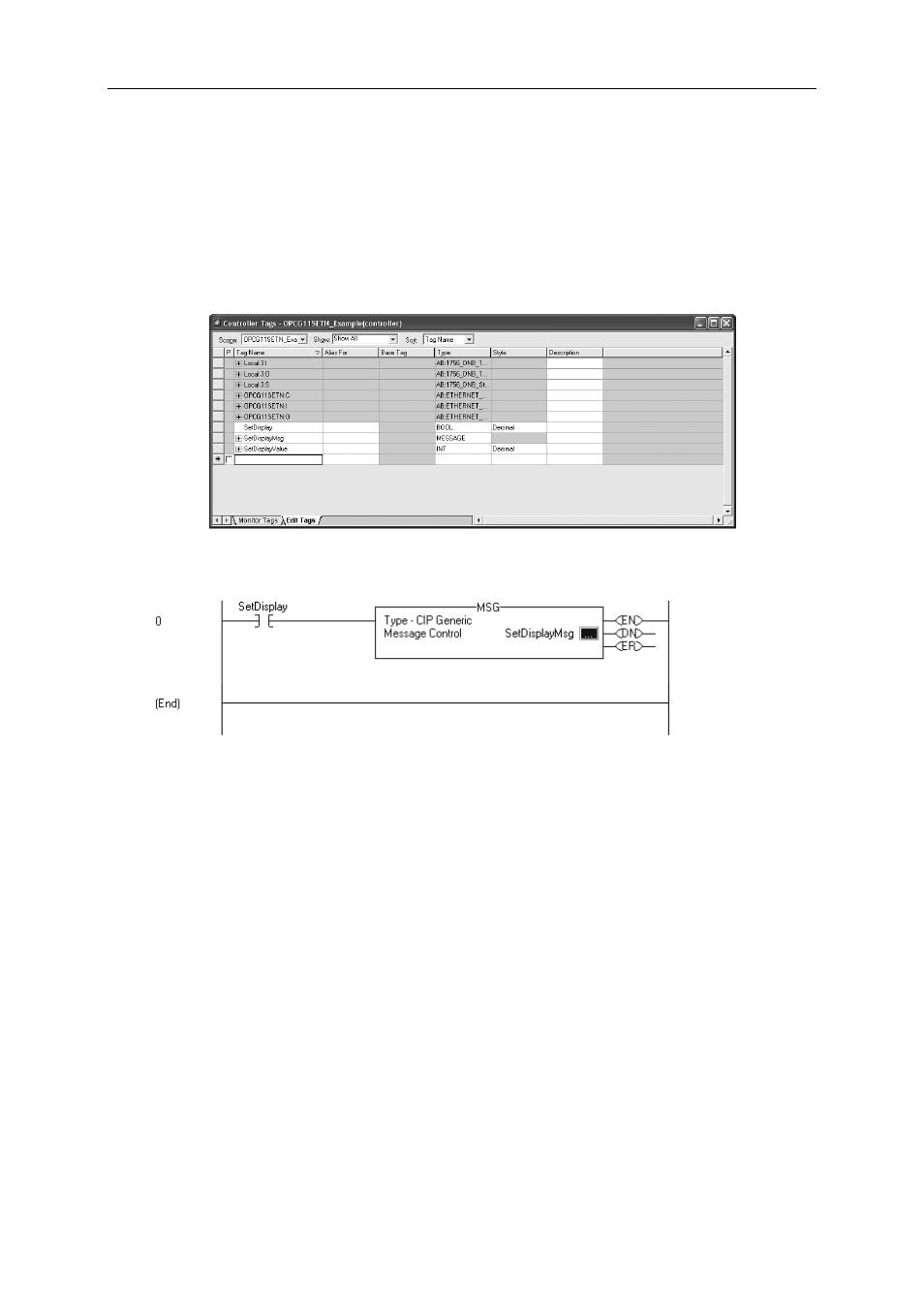

In Controller tags, create a tag of MESSAGE type for the write instruction and create a tag of INT type for
the value to send.
1. In Controller tags, create a tag of MESSAGE type for the write instruction and create a tag of INT
type for the value to be sent. Set the value tag to 3 for “Output current”.
2. Add the message instruction (MSG) to a rung and use the created tag as value for the “Message
Control” field.
