Example using hicp – GE Industrial Solutions AF-300 P11_G11 Ethernet Interface User Manual
Page 17
Installation and Configuration
11
Example Using HICP
Install “Anybus IPconfig” software on a PC with MS Windows. The software is located on the diskette
delivered with the module and can also be downloaded from the web at http://www.hms-networks.com.

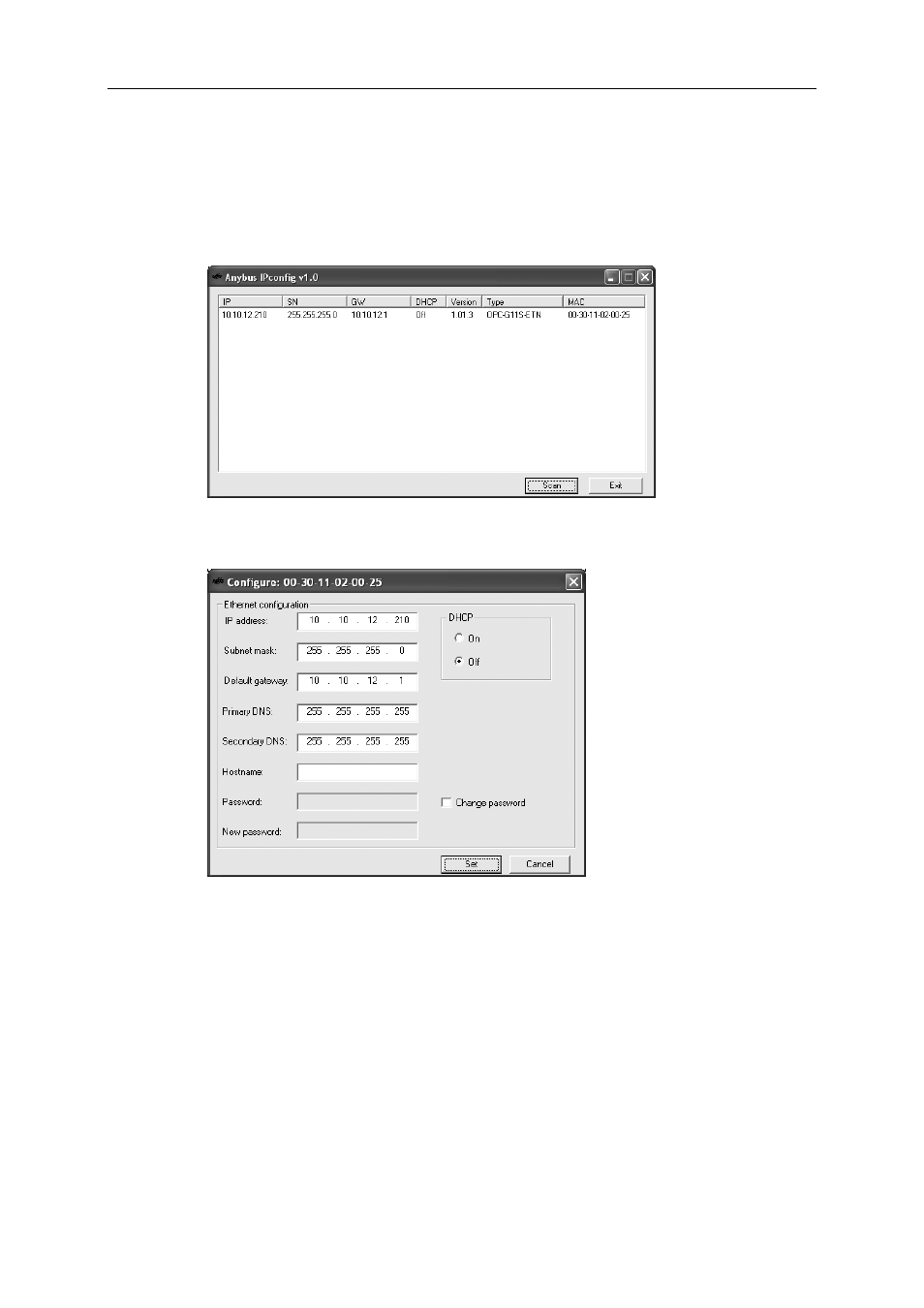

1. Start the configuration program and hit the Scan button, the module(s) shall appear in the window: If
the module does not appear, make sure that it is connected to the same network and that it has link.
2. Double click on the line with the module you want to configure. If you have several nodes connected
to the network, the MAC address shall match the MAC address that is printed on the side of the
module. The following window will open:
3. Enter the desired settings and turn DHCP off. The settings can optionally be protected by a
password. Hit set and the module is configured. The DNS settings are not used in this product.
