Galaxy Pulsar Edge Power System Controller
Issue 3 October 2011
84
Shunt
Type
System Configuration Proposed Controller Operation
monitored is enabled, then the total
battery current shall be calculated as
follows:
I
battery
= Unavailable
I
Load
= Σ I
Load shunt monitors
Recharge current feature shall also be
made unavailable.

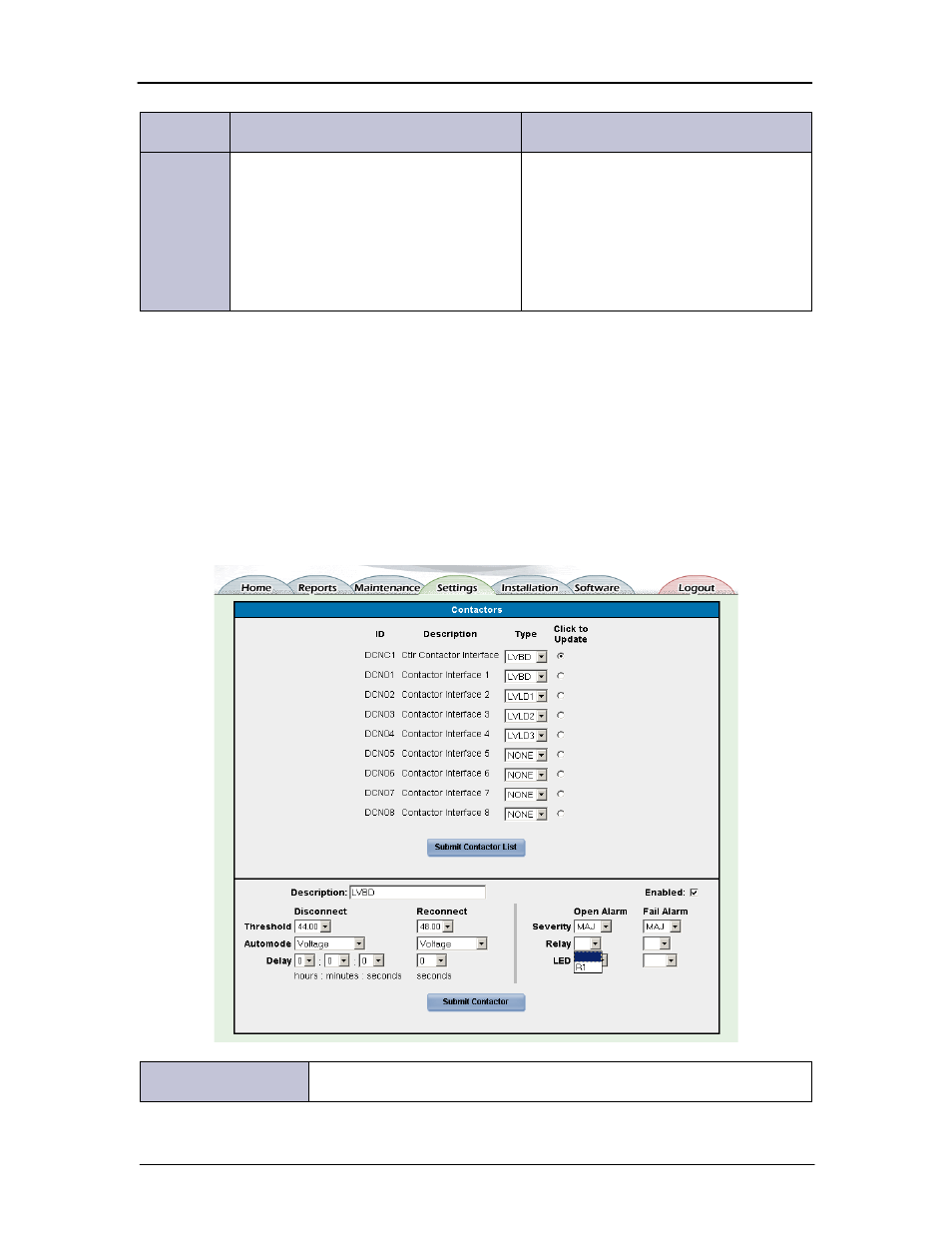

System-Contactor Configuration Page
Items in this web page are used to define the different parameters and thresholds for managed
Low Voltage Disconnect (LVD) contactors. Clicking on a specific “Click to update” position will
provide the associated parameters for the selected LVD type. The Pulsar Edge controller utilizes
distribution monitoring and control boards to control contactors. These boards include the QS871
and NE872 modules. Each of the boards in the system must be assigned to LVD contactor control
by appropriately configuring a unique board ID on the board and associating it to a specific
contactor function at the controller.
ID1-8 Associates the ID numbers set on the distribution monitoring boards
(NE872/QS871) to one of four independent set of contactor controls.
