GE Industrial Solutions Galaxy Pulsar Edge User Manual
Page 28
Galaxy Pulsar Edge Power System Controller
Issue 3 October 2011
28

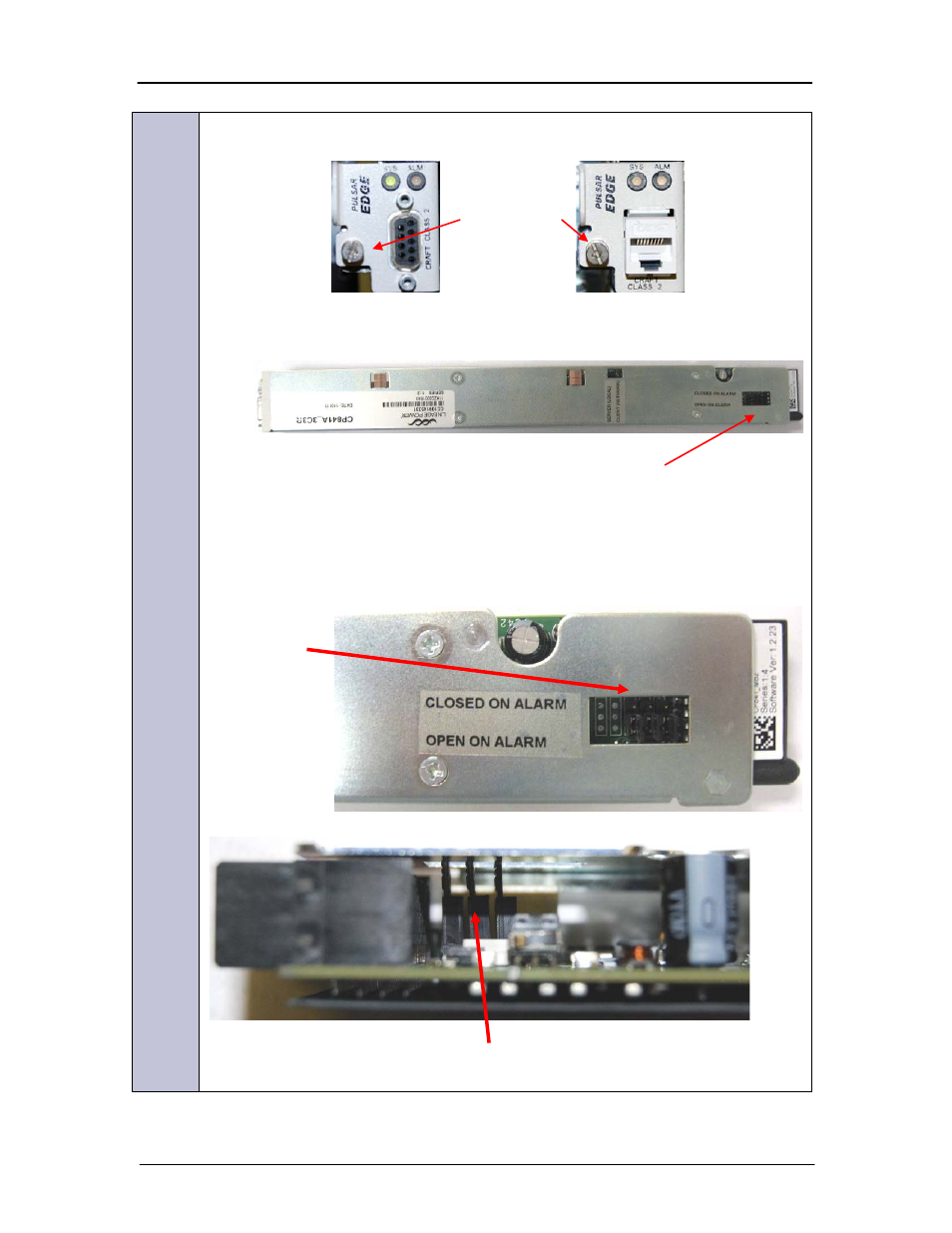

Locate configuration jumpers for alarm relays on Edge-mounted controller.
Loosen the chassis captive securing fastener and remove the controller from the shelf.
Carefully remove the control unit from the shelf and locate the small opening in the
chassis that allows external access to configuration jumpers.
Locate the jumpers for the alarm relays. The number of jumpers present equals the
number of output alarms contacts available for the respective controller. The
maximum number of jumpers possible is six while the minimum is zero. The figure
below shows three jumpers for the CP841_3C3R controller. Similar openings and
jumpers are used in controller configurations for other power systems.
Three Alarm Configuration Jumpers
Captive
Fastening
Screw
Alarm Output Configuration Jumpers
Alarm
Configuration
Jumpers
