Galaxy Pulsar Edge Power System Controller
Issue 3 October 2011
12

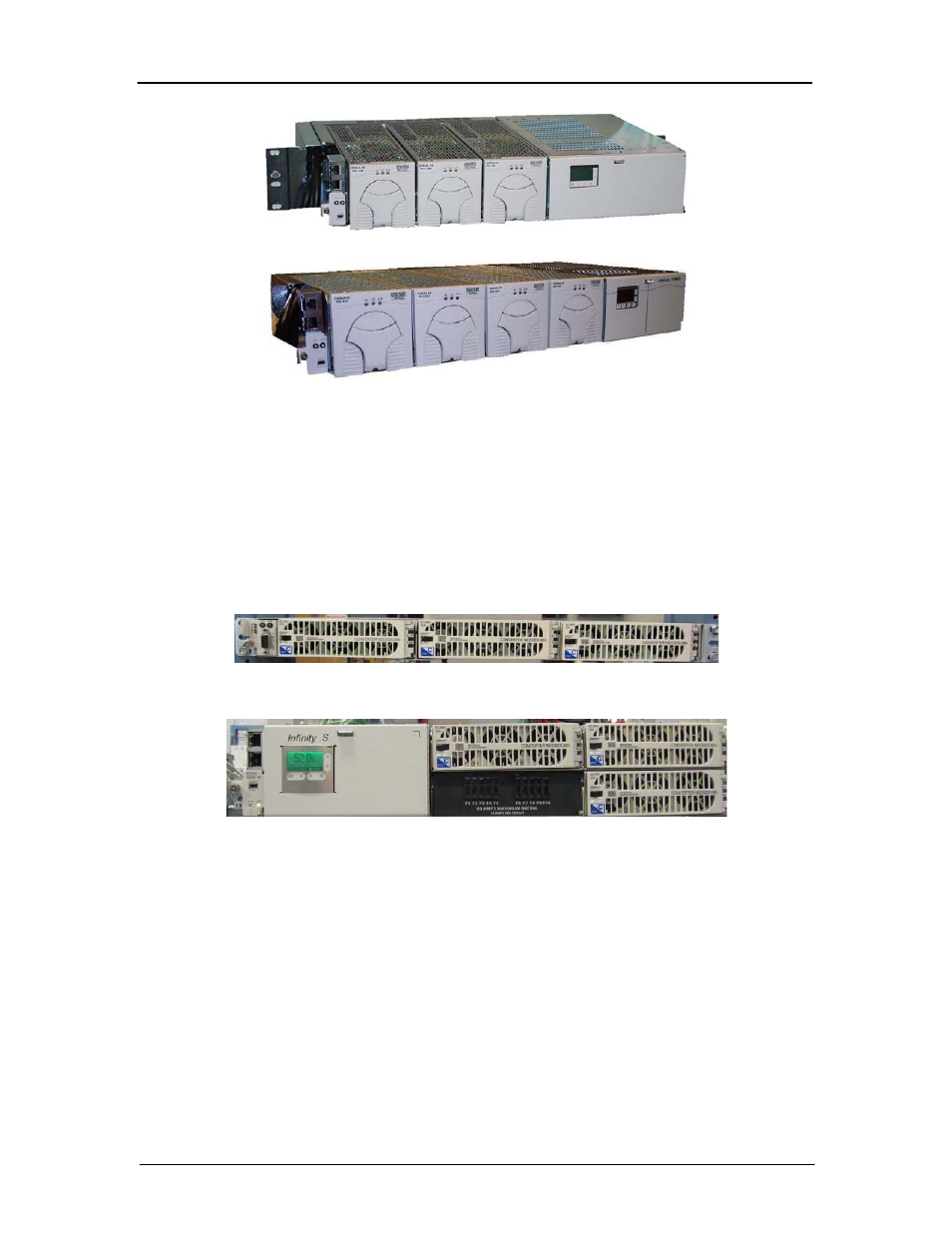

Figure 1-3: CPS6000 Series II Power System (QS) Line Shelves- QS841E Family of
Controllers
Figure 1-4: Infinity NE Converter Power Shelves- QS841E and NE841A Family of
Controllers
Systems that utilize the Pulsar Edge controller provide a dedicated location for the controller that
allows the maximum number of power modules to be used per shelf. Present systems locate the
controller to a dedicated position located to the left of the left most power position in the shelf.
The Pulsar Edge controller is typically pre-installed into the power shelf at the factory. However,
it can be ordered separately for spares, installed in the field, or integrated into custom systems.
Access to the controller inputs/outputs is typically located on one or two connectors located at the
rear of the shelf. There are front access shelf designs that locate these connectors to the front of
