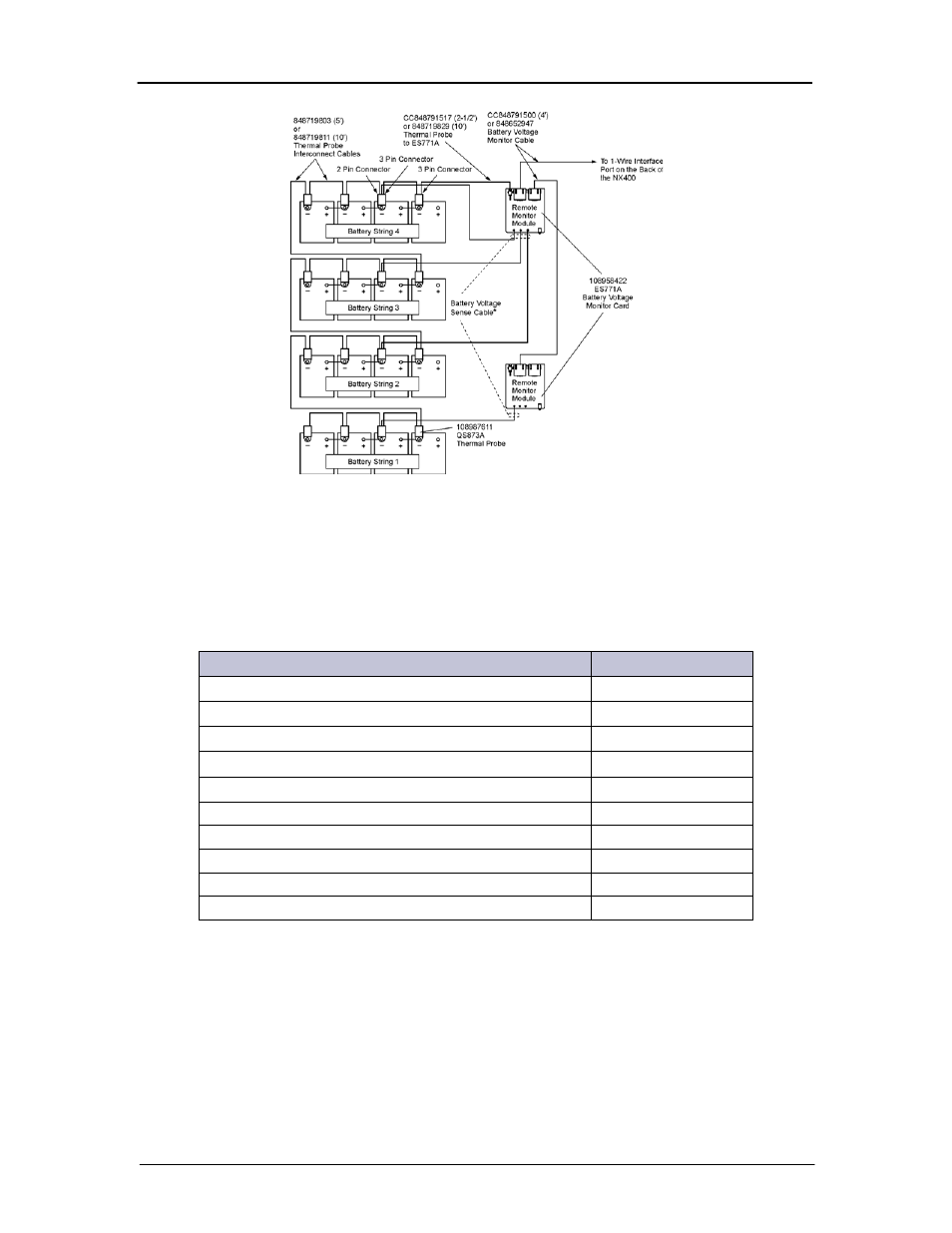

Figure 6-5: Same System Monitored For Imbalance with VT Probe on Every
Battery
Following is a summary of the parts utilized in the 1-Wire management system. Consult quick
start guides for the latest information.
Probe And Cable Descriptions Comcode
QS873A battery thermal probe 108987611
QS873A_K4 battery thermal probe CC109142980
10-ft Probe to Infinity NE interconnect 848719795
5-ft Probe to probe interconnect 848719803
10-ft Probe to probe interconnect 848719811
ES771A Voltage Monitoring Module 108958422
2.5-ft Probe to ES771A interconnect CC848791517
10-ft Probe to ES771A interconnect 848719829
4-ft ES771A to ES771A/Infinity NE interconnect CC848791500
10-ft ES771A to ES771A/Infinity NE interconnect 848652947
