Galaxy Pulsar Edge Power System Controller
Issue 3 October 2011
40
DHCP Client mode and the controller can be simply accessed by typing in its correct IP address.
To access the system using the LAN as the Craft Port, follow the following basic procedures:
1 To use the Ethernet port locally as a Craft port the controller needs to be configured as a
DHCP Server. First remove the controller from the shelf to place the controller into

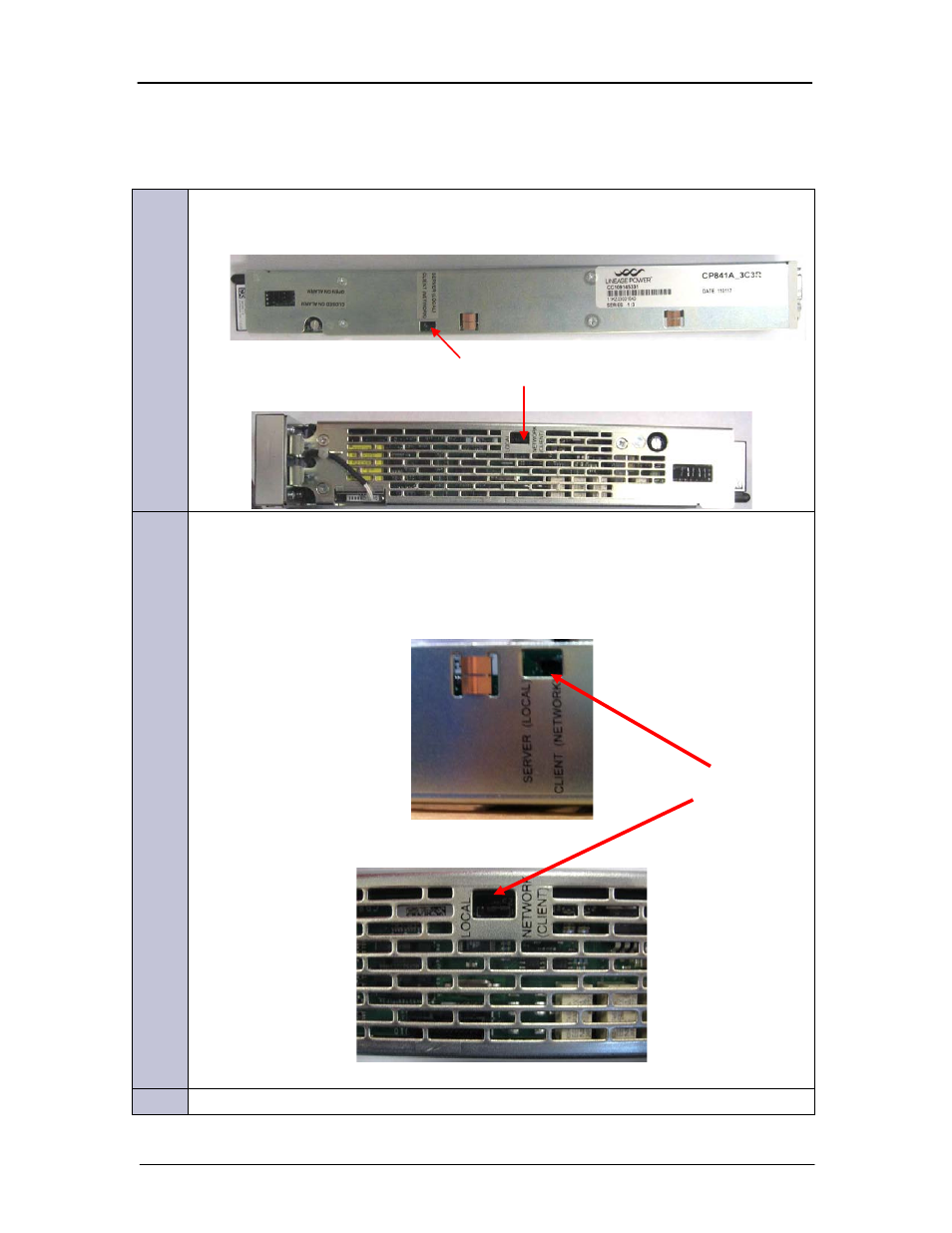

DHCP server mode. Locate the Port configuration jumper portal
2 Place the controller in appropriate location and set jumper J25 into to the DHCP Server
position which is the “local” position. DHCP Server mode of operation is from pins 2 to
pin 3. Connecting the controller to the intranet J25 must be set to the Network (Client)
position which is from pins 1 to pin 2. Network (Client) is the factory default
configuration. Use of an insulated tool to set the jumper is preferred.
3 Reinsert the controller back into system shelf. The controller must be rebooted when
J25
Network Port Configuration Portal
SPS841A
CP841A
