Galaxy Pulsar Edge Power System Controller
Issue 3 October 2011
45

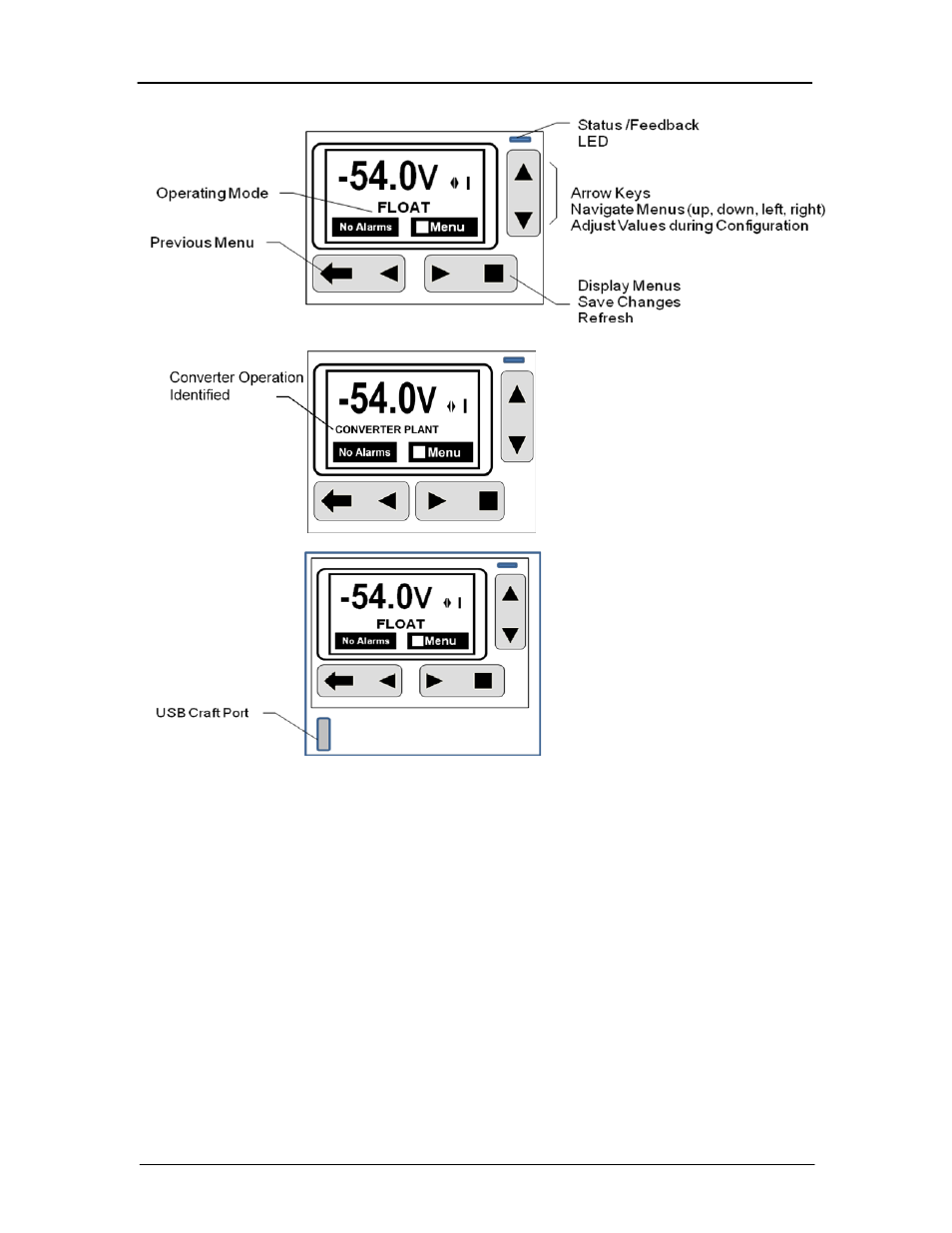

Figure 5-1: Galaxy Pulsar Edge Front Panel Display Assembly
The previous s figure shows depictions of the front panel display in a 48V CPS6000 Series II
rectifier system, a 48V Infinity NE-S converter output system, and a 48V SPS rectifier system.
The display defaults with the system voltage (V) displayed on the main menu. Total system load
(I) can be easily obtained by toggleling the display using either
◄► keys.
The text area
underneath the voltage and current numbers provide the overall operating mode of the system. In
converter only systems, this text will be fixed and say “converter plant”.
Menu Navigation Buttons
The Galaxy Pulsar Edge family of controllers has six capacitive touch buttons to use to navigate
through a structured menu system. The buttons serve multiple purposes depending on the screen a
user is at. These functions are summarized below.
