Galaxy Pulsar Edge Power System Controller
Issue 3 October 2011
57

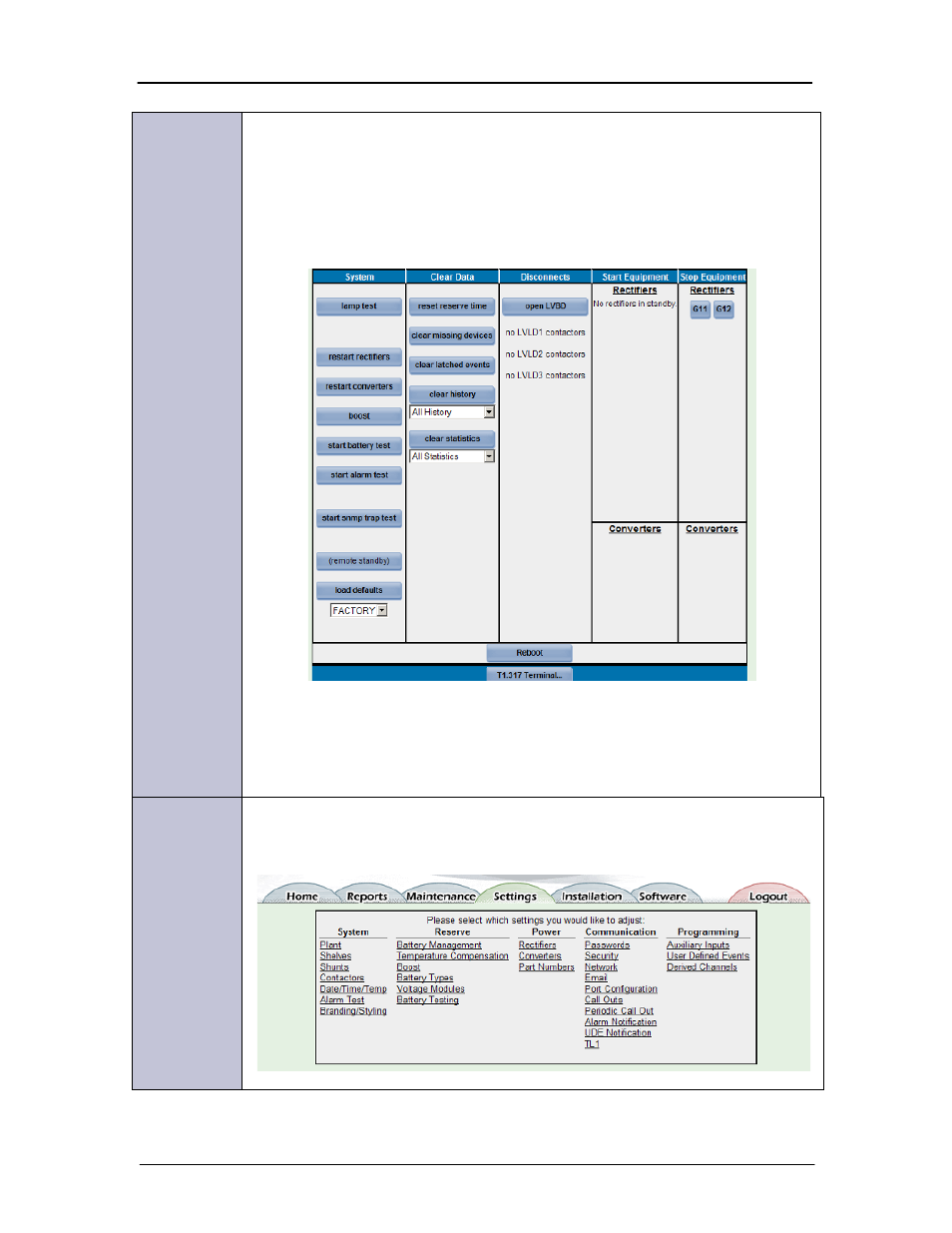

Maintenance
Allows access to common operations performed during the maintenance or
installation of the system or its components. Operations include restarting
rectifiers/converters, starting alarm or battery tests, asserting boost, clearing
history and statistics, clearing latched events and missing equipment, placing
rectifiers/converters in and out of Standby, Reboot, and performing an SNMP
Trap test. A T1.317 Terminal button establishes a quick Telnet session to the
controller where the T1.317 command interface can be utilized.
The “Load Defaults” button loads the factory configuration defaults installed in
the controller. All previous configurations will be overridden using this
command. Standard controller configurations will use the standard factory
defaults. Custom controllers utilize specific customer driven configurations.
Settings
Items in this menu are used to configure all the individual system parameters,
features, and thresholds. Configuration items are arranged by System, Reserve,
Power, Communication, and Programming categories.
