Galaxy Pulsar Edge Power System Controller
Issue 3 October 2011
109

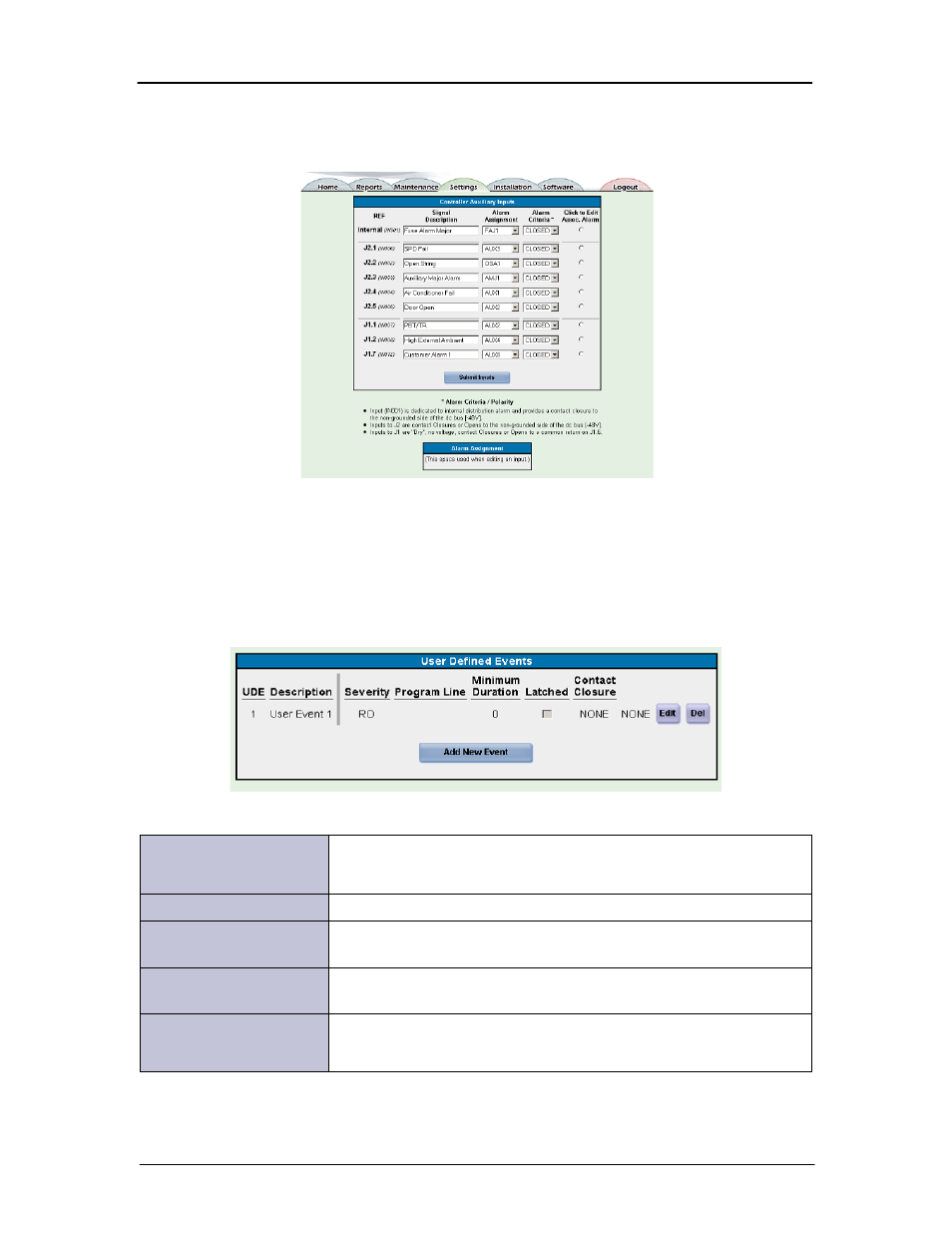

Following is a sample screen of a CP841A_3C3R.
User Defined Events
This page provides the ability to create specific events using the T1.317 variables and the
basic mathematical operators to create a User Defined Event by creating a specific
program line. Once the event is created it has the very similar configurable attributes as
other basic controller alarms. Following is a sample screen.
Program Line Sets the condition upon which the alarm will be asserted. The
program line can have total of 40 characters having a total of 12
operators and operands
Logical operators are: & AND, | OR, ^ XOR and ! NOT
Binary mathematical
operators are: + plus, - minus, * times and / divide
Unitary mathematical
operators are + Positive, - Negative
Comparator operators
are:
= equal, < less than and > greater than. Parentheses are accepted
