Car2912te series front-end, Preliminary data sheet, Features

GE
Preliminary Data Sheet
October 21, 2013
©2013 General Electric Company. All rights reserved.

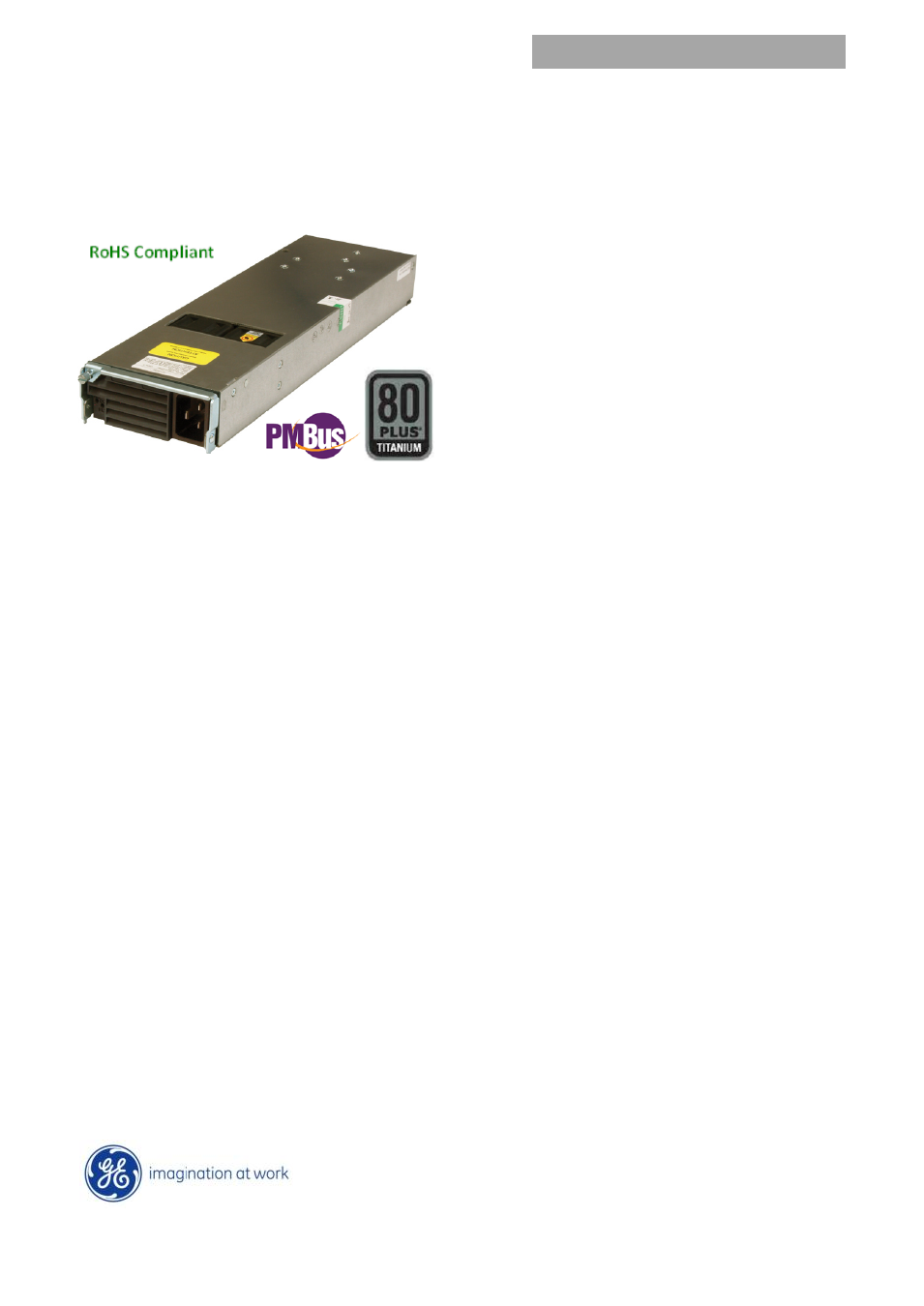

CAR2912TE series front-end
Input: 90Vac to 264Vac; Output: 12Vdc @ 2900W; 3.3 or 5Vdc @ 4A Standby
Features
•
Efficiency: meets 80plus “Titanium” criteria
•
Universal input with PFC
•
Constant power characteristic
•
2 front panel LEDs: 1-input;2-[DC_OK, fault, warning]
•
ON/OFF control of the 12Vdc output
•
Remote sense on the 12Vdc output
•
No minimum load requirements
•
Active load sharing (single wire)
•
Hot Plug-ability
•
Standby orderable either as 3.3Vdc or 5Vdc @ 4A
•
Auto recoverable OC & OT protection
•
Operating temperature: -10 - 70°C (de-rated above 50°C)
•
Digital status & control: dual/redundant PMBus™ serial
bus
•
EN/IEC/UL60950-1 2
nd
edition; UL, CSA, VDE , and CCC
•
EMI: class A FCC docket 20780 part 15, EN55022
•
Meets EN6100 immunity and transient standards
•
Shock & vibration: NEBS GR-63-CORE, level 3
Applications
•
12Vdc distributed power architectures
•
Routers/ VoIP/Soft and other Telecom Switches
•
Mid to high-end Servers, ATE Equipment
Targeted Countries
China, Taiwan, Japan, South Korea, Singapore
EU Countries
Brazil, Canada, Mexico, Argentina, USA
Description
The CAR2912TE Front-End provides highly efficient isolated power from worldwide input mains in a compact 1U
industry standard form factor. This power supply is ideal for applications where mid to light load efficiency is of key
importance in order to reduce system power consumption during ‘typical’ operational conditions.
The high-density, front-to-back airflow is designed for minimal space utilization and is highly expandable for future
growth. Dual/redundant, industry standard, PMBus™ compliant I
2
C communications busses offer a full range of
control and monitoring capabilities with sequential control from two independent sources
*
UL is a registered trademark of Underwriters Laboratories, Inc.
†
CSA is a registered trademark of Canadian Standards Association.
‡
VDE is a trademark of Verband Deutscher Elektrotechniker e.V.
§
Intended for integration into end-user equipment. All the required procedures for CE marking of end-user equipment should be followed. (The CE mark is placed on selected products.)
** ISO is a registered trademark of the International Organization of Standards.
+ PMBus name and logo are registered trademarks of the System Management Interface Forum (SMIF)
Document Outline
- Features
- Applications
- Targeted Countries
- Description
- Absolute Maximum Ratings
- Electrical Specifications
- General Specifications
- Feature Specifications
- Digital Interface Specifications
- Environmental Specifications
- Control and Status
- Control Signals
- Status signals
- Serial Bus Communications
- Digital Feature Descriptions
- If the SMBAlert line is still asserted, the host should send out an ARA request again and find out who else asserted SMBAlert. This process needs to continue until the SMBAlert is released which is a clear indication that all power supplies that asse...
- PMBusTM Commands
- Standard instruction: Up to two bytes of data may follow an instruction depending on the required data content. Analog data is always transmitted as LSB followed by MSB. PEC is optional and includes the address and data fields.
- Standard features
- The commands below are ‘read only’. They cannot be modified.
- Read_Status_state (0xD1): This command returns the STATUS-2 and STATUS-1 register values using the standard ‘read’ format.
- Status-2
- Status-1
- Alarm-2
- Alarm-1
- Read_Fan_speed (0 x D3) : Returns the commanded speed in percent and the measured speed in RPM. Up to 3 fans are supported. If a fan does not exist, or if the command is not supported the unit return 0x00.
- General performance descriptions
- Default state: Power supplies are programmed in the default state to automatically restart after a shutdown has occurred. The default state can be reconfigured by changing non-volatile memory (Store_default_code).
- Information only alarms: The following alarms are for information only, they do not cause a shutdown
- LEDs
- Alarm Table
- Outline Drawing
