4 How to Program
4.1 The Graphical Keypad
The easiest programming of the frequency converter is performed by the Graphical Keypad.
4.1.1 How to Program on the Graphical Keypad
The following instructions are valid for the graphical Keypad:

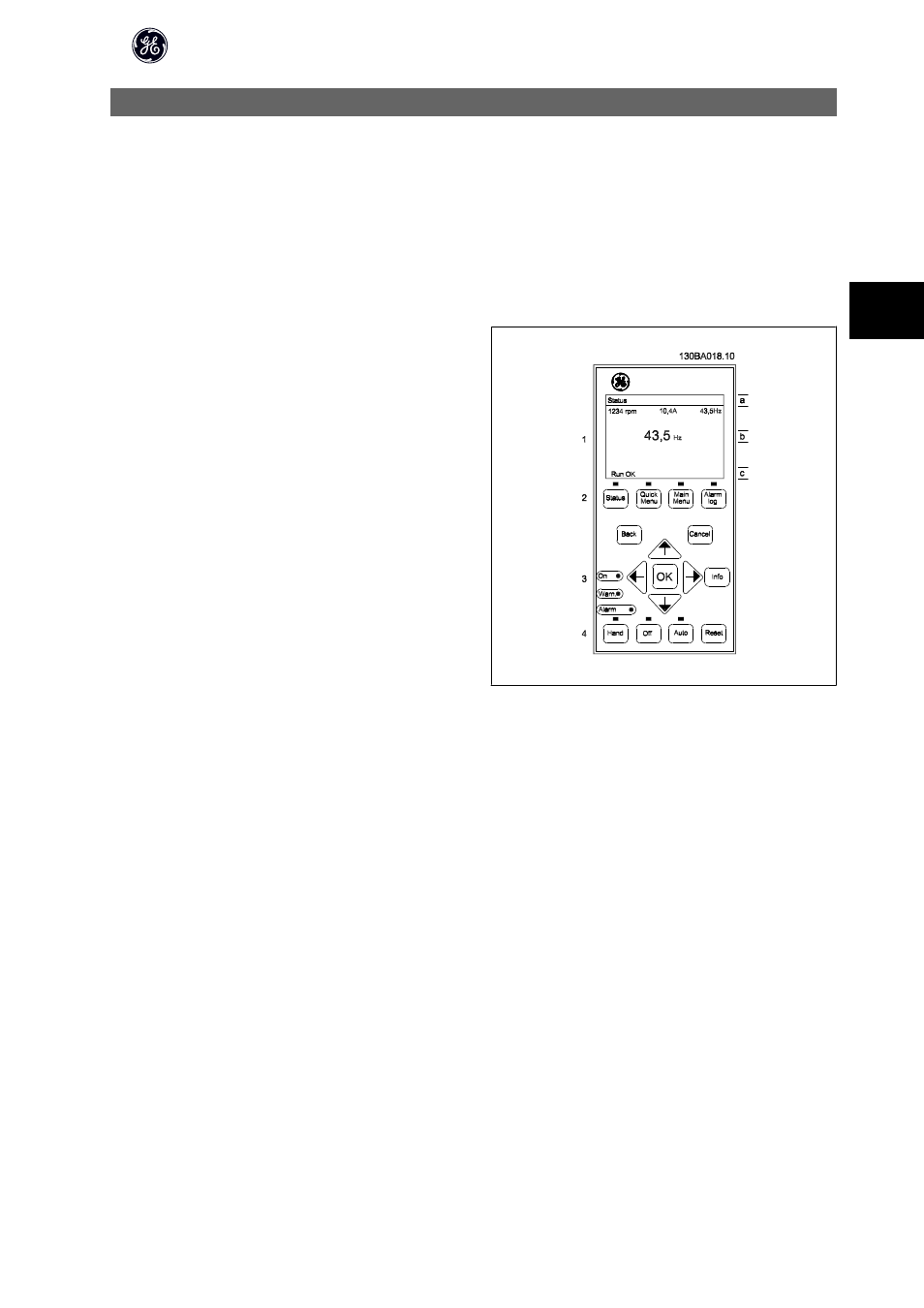

The keypad is divided into four functional groups:
1. Graphical display with Status lines.
2. Menu keys and indicator lights - changing parameters and switch-
ing between display functions.
3. Navigation keys and indicator lights (LEDs).
4. Operation keys and indicator lights (LEDs).
All data is displayed in the display, which can show up to five items of oper-
ating data while displaying [Status].
Display lines:
a. Status line: Status messages displaying icons and graphic.
b. Line 1-2: Operator data lines displaying data defined or chosen by
the user. By pressing the [Status] key, up to one extra line can be
added.
c. Status line: Status messages displaying text.
