GE Industrial Solutions AF-650 GP General Purpose Drive (460_575_690V 125HP and above) User Manual
Page 68
3.8.2 Switches S201, S202, and S801
Switches S201 (A53) and S202 (A54) are used to select a current (0-20 mA) or a voltage (-10 to 10 V) configuration of the analog input terminals 53 and 54 respectively.
Switch S801 (BUS TER.) can be used to enable termination on the RS-485 port (terminals 68 and 69).
See drawing Diagram showing all electrical terminals in section Electrical Installation.
Default setting:
S201 (A53) = OFF (voltage input)
S202 (A54) = OFF (voltage input)
S801 (Bus termination) = OFF

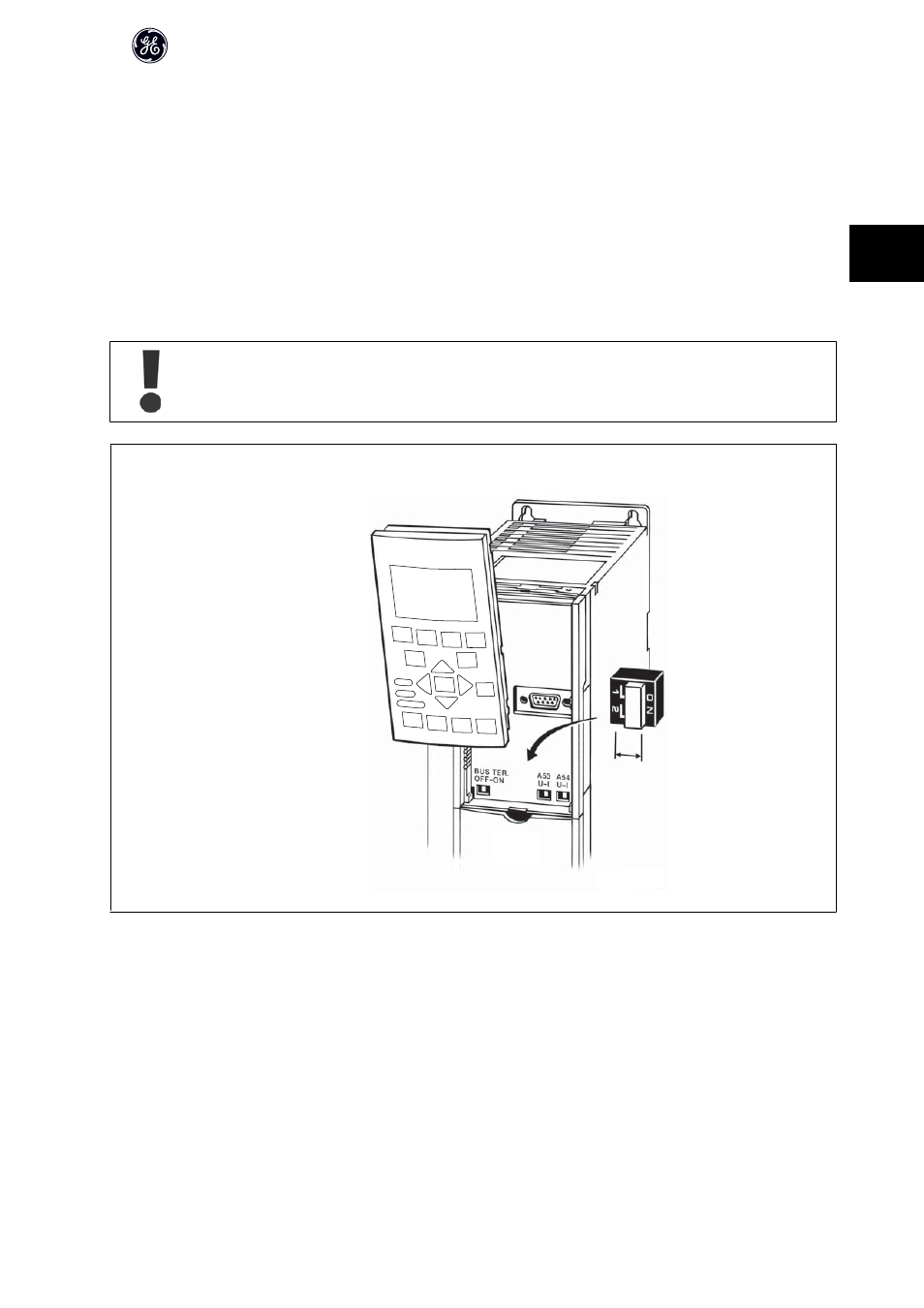

When changing the function of S201, S202 or S801 be careful not to use force for the switch over. It is recommended to remove the Keypad
fixture (cradle) when operating the switches. The switches must not be operated with power on the frequency converter.
130BT310.10
AF-650 GP High Power Operating Instructions
67
3
