GE Industrial Solutions AF-650 GP General Purpose Drive (460_575_690V 125HP and above) User Manual
Page 25

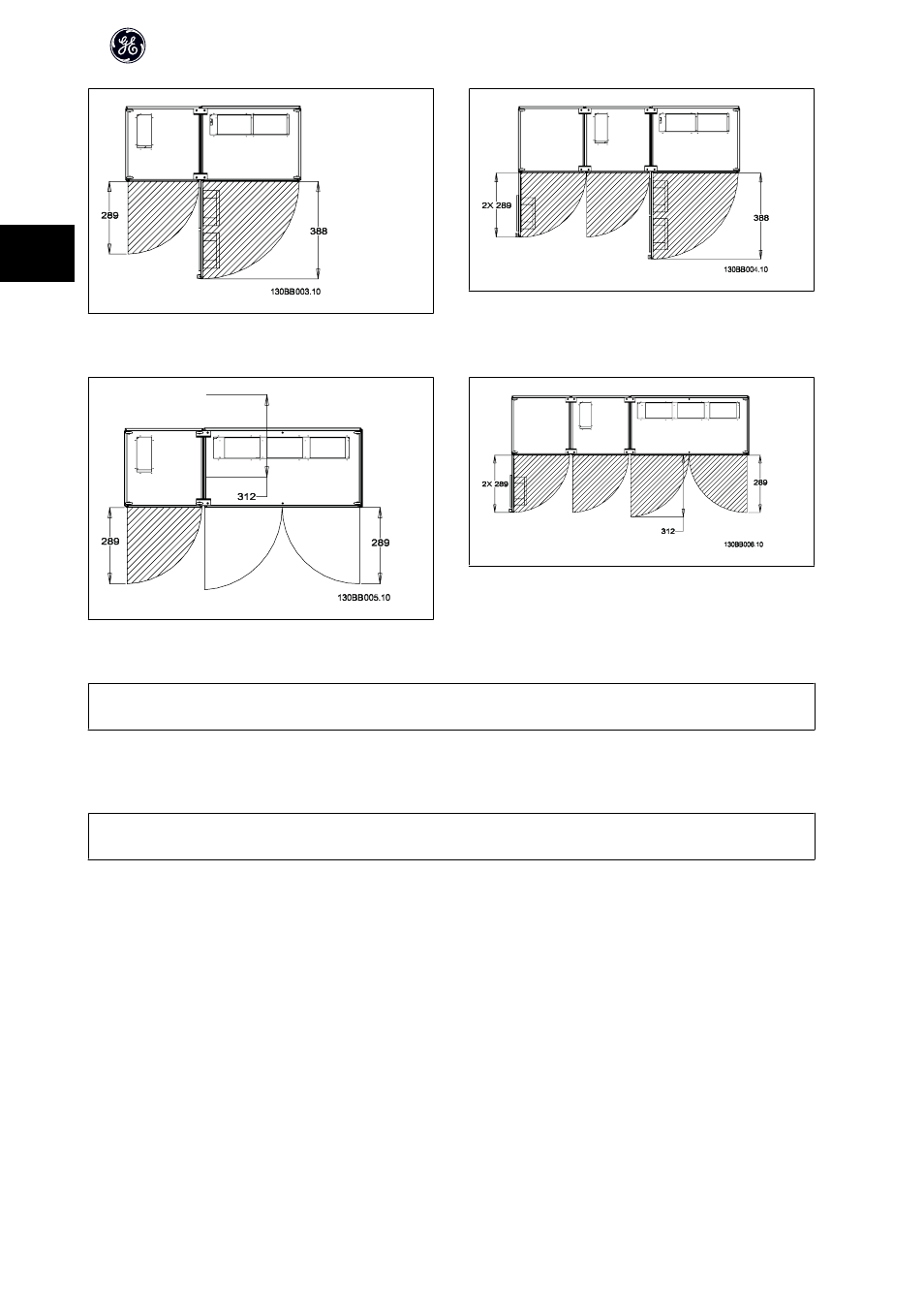

Illustration 3.10: Space in front of IP21/Nema 1 and IP54/Nema 12 drive
type, for unit size 61.
Illustration 3.11: Space in front of IP21/Nema 1 and IP54/Nema 12 drive
type, for unit size 63.
Illustration 3.12: Space in front of IP21/Nema 1 and IP54/Nema 12 drive
type, for unit size 62.
Illustration 3.13: Space in front of IP21/Nema 1 and IP54/Nema 12 drive
type, for unit size 64.
NB!
Airflow direction, see Mechanical Dimensions on previous pages
Wire access
Ensure that proper cable access is present including necessary bending allowance. As the IP00 Open Chassis drive type is open to the bottom cables must be
fixed to the back panel of the Unit where the frequency converter is mounted, i.e. by using cable clamps.
NB!
All cable lugs/ shoes must mount within the width of the terminal bus bar
AF-650 GP High Power Operating Instructions
24
3
