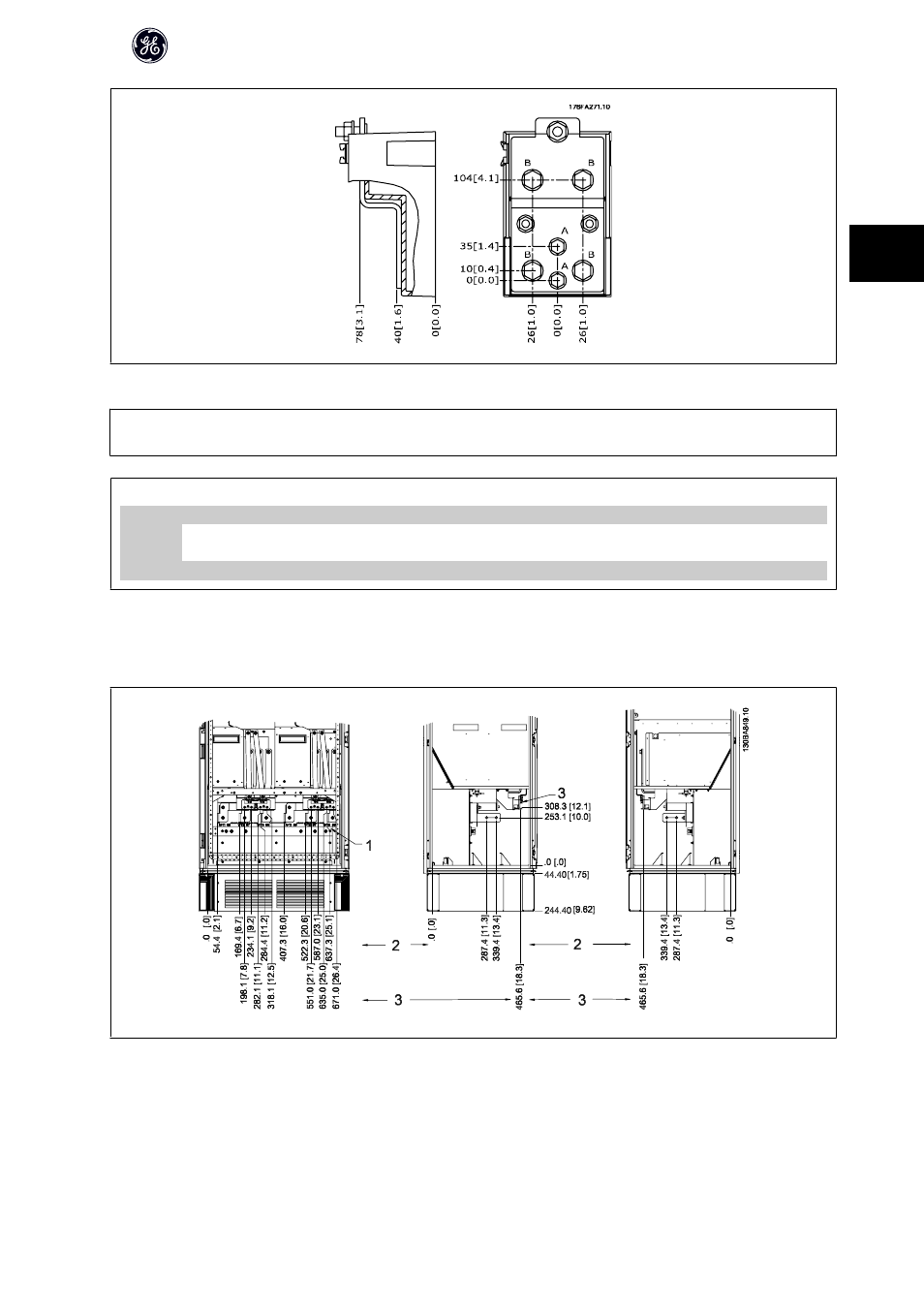

Illustration 3.22: Terminal in details
NB!
Power connections can be made to positions A or B
Unit Size UNIT TYPE DIMENSION FOR DISCONNECT TERMINAL
52
IPOO/CHASSIS A B C D E F
250/315 kW (400V) AND 355/450-500/630 KW
(690 V)
381 (15.0) 245 (9.6) 334 (13.1) 423 (16.7) 256 (10.1) N/A
315/355-400/450 kW (400V) 383 (15.1) 244 (9.6) 334 (13.1) 424 (16.7) 109 (4.3) 149 (5.8)
3.3.5 Terminal Locations - Unit Sizes 6X
Terminal locations - Unit Sizes 61 and 63
Illustration 3.23: Terminal locations - Inverter Cabinet - 61 and 63 (front, left and right side view)
1) Ground bar
2) Motor terminals
3) Brake terminals
AF-650 GP High Power Operating Instructions
29
3
