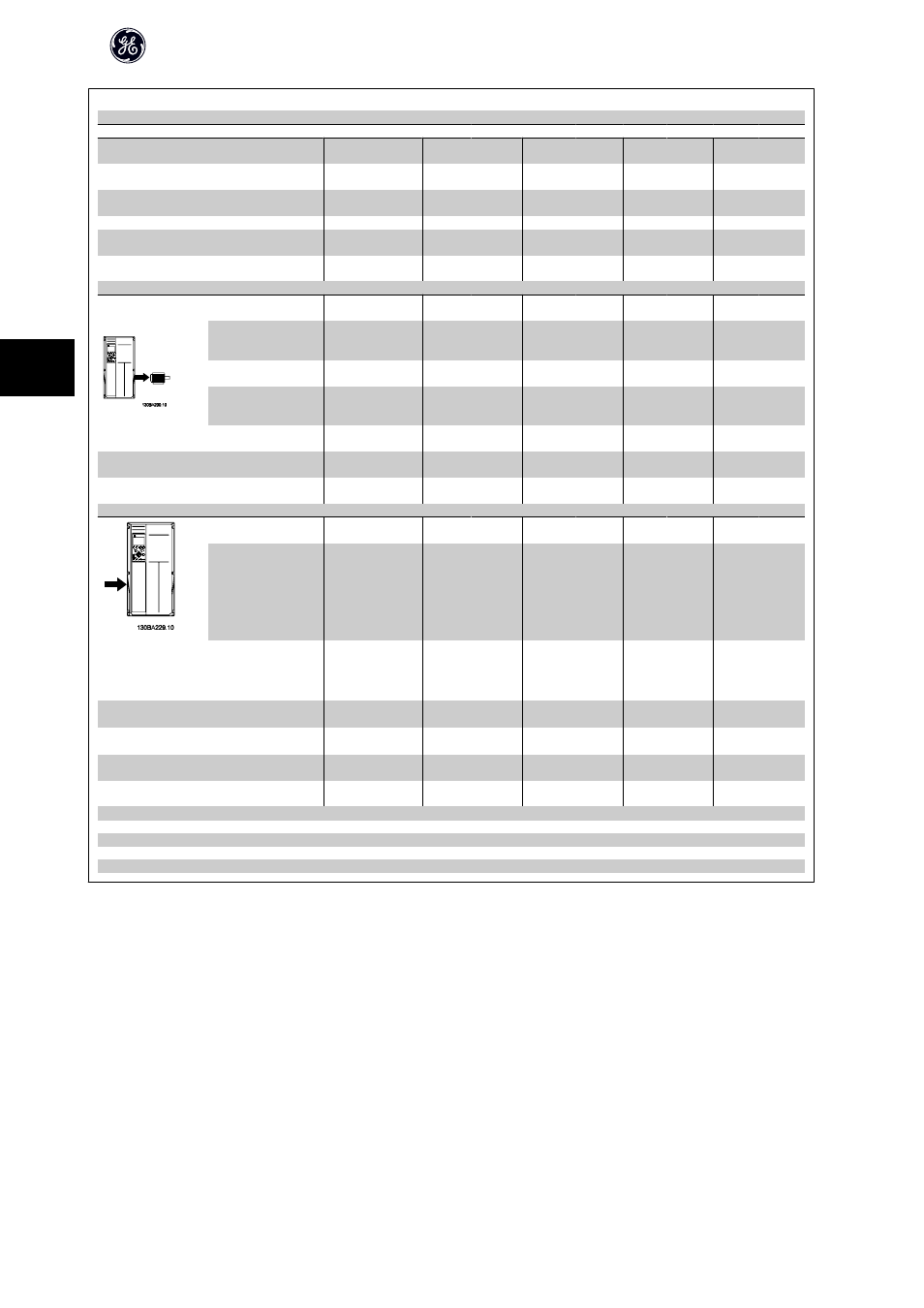

Mains Supply 3 x 380 - 500 VAC
AF-650 GP
125 HP 150 HP 200 HP 250 HP 300 HP
Heavy Duty/Light Duty* HD LD HD LD HD LD HD LD HD LD
Typical Shaft output at
400 V [kW]
90 110 110 132 132 160 160 200 200 250
Typical Shaft output at
460 V [HP]
125 150 150 200 200 250 250 300 300 350
Typical Shaft output at
500 V [kW]
110 132 132 160 160 200 200 250 250 315
IP21/Nema 1 Drive Type 41 41 42 42 42
IP54/Nema 12 Drive
Type
41 41 42 42 42
IP00 Open Chassis Drive
Type
43 43 44 44 44
Output current
Continuous
(at 400 V) [A]
177 212 212 260 260 315 315 395 395 480
Intermittent (60 sec
overload)
(at 400 V) [A]
266 233 318 286 390 347 473 435 593 528
Continuous
(at 460/ 500 V) [A]
160 190 190 240 240 302 302 361 361 443
Intermittent (60 sec
overload)
(at 460/ 500 V) [A]
240 209 285 264 360 332 453 397 542 487
Continuous KVA
(at 400 V) [KVA]
123 147 147 180 180 218 218 274 274 333
Continuous KVA
(at 460 V) [KVA]
127 151 151 191 191 241 241 288 288 353
Continuous KVA
(at 500 V) [KVA]
139 165 165 208 208 262 262 313 313 384
Max. input current
Continuous
(at 400 V ) [A]
171 204 204 251 251 304 304 381 381 463
Continuous
(at 460/ 500 V) [A]
154 183 183 231 231 291 291 348 348 427
Max. cable size, mains
motor, brake and load
share [mm
2 (AWG 2) )]
2 x 70
(2 x 2/0)
2 x 70
(2 x 2/0)
2 x 185
(2 x 350 mcm)
2 x 185
(2 x 350 mcm)
2 x 185
(2 x 350 mcm)
Max. external pre-fuses
[A]
1
300 350 400 500 600
Estimated power loss
at rated max. load [W]
4)
2641 3234 2995 3782 3425 4213 3910 5119 4625 5893
Weight,
Unit Size IP21, IP 54 [kg]
96 104 125 136 151
Weight,
Unit Size IP00 [kg]
82 91 112 123 138
Efficiency 4) 0.98
Output frequency 0 - 800 Hz
Heatsink overtemp. trip 85 °C 90 °C 105 °C 105 °C 115 °C
Power card ambient trip 60 °C
* Heavy Duty = 160% torque during 60 s, Light Duty = 110% torque during 60 s
