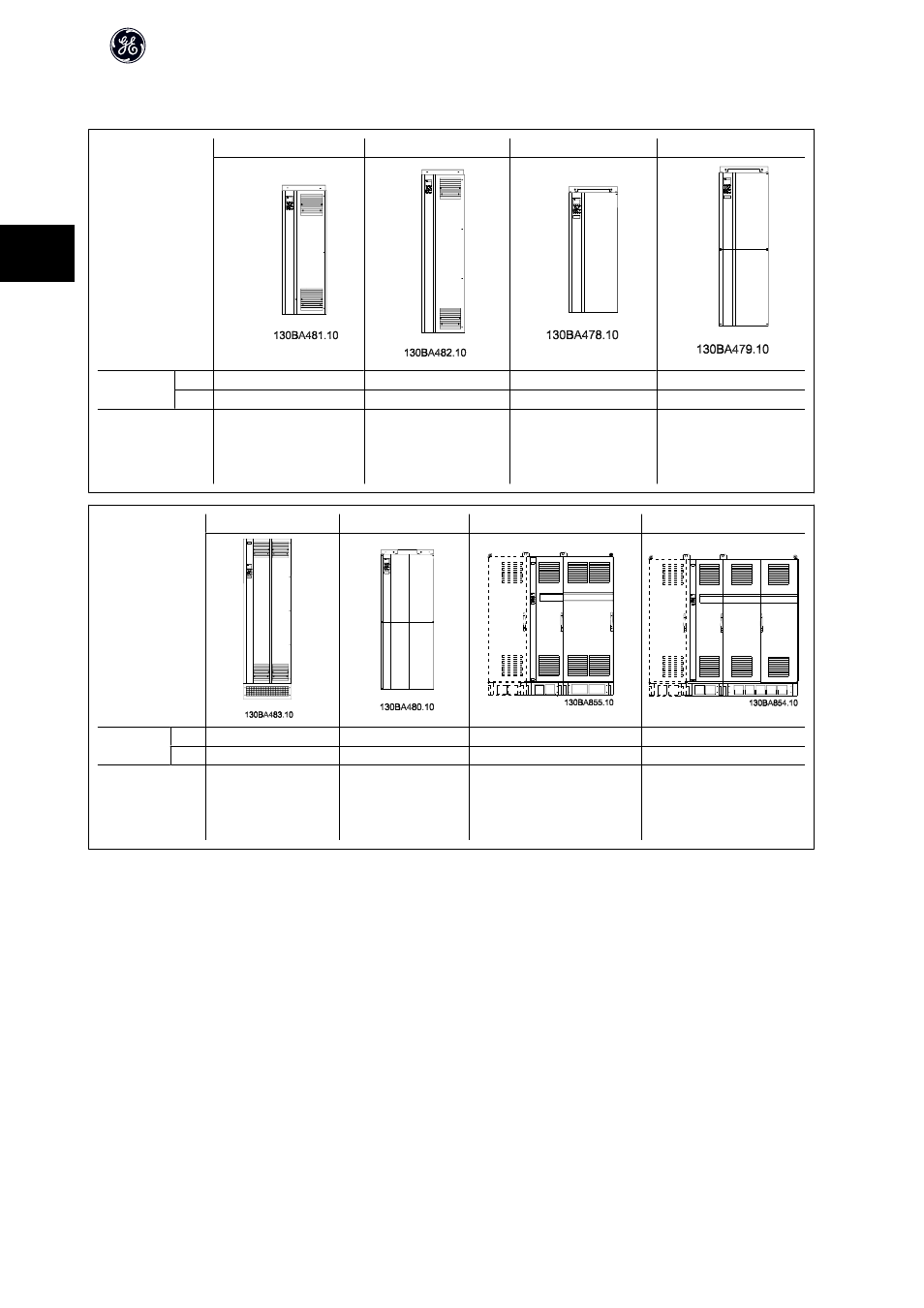

3.2.6 Rated Power
Unit type
41 42 43 44
Unit
protection IP 21/54 21/54 00 00
NEMA Type 1/ Type 12 Type 1/ Type 12 Chassis Chassis
High overload rated
power - 160% overload
torque
90 - 110 - kW at 400 V
(380 - 500 V)
37 - 132 kW at 690 V
(525-690 V)
132 - 200 kW at 400 V
(380 - 500 V)
160 - 315 kW at 690 V
(525-690 V)
90 - 110 - kW at 400 V
(380 - 500 V)
37 - 132 kW at 690 V
(525-690 V)
132 - 200 kW at 400 V
(380 - 500 V)
160 - 315 kW at 690 V
(525-690 V)
Unit type
51 52 61/63 62/64
Unit
protection IP 21/54 00 21/54 21/54
NEMA Type 1/ Type 12 Chassis Type 1/ Type 12 Type 1/ Type 12
High overload rated
power - 160% over-
load torque
250 - 400 kW at 400 V
(380 - 500 V)
355 - 560 kW at 690 V
(525-690 V)
240 - 400 kW at 400 V
(380 - 500 V)
355 - 560 kW at 690 V
(525-690 V)
450 - 630 kW at 400 V
(380 - 500 V)
630 - 800 kW at 690 V
(525-690 V)
710 - 800 kW at 400 V
(380 - 500 V)
900 - 1000 kW at 690 V
(525-690 V)
