Chapter 4 Configuring an AV-300i Version 2 Drive
GEH-6412 Toolbox for AV-300i Version 2 Drive
Global Data and Directed Control Data
There are two types of word data that can be set in the Genius configuration:
•
Global Data (Device->Master) is data passed from the drive to the Genius
•
Directed Data (Master->Device) is data passed from the Genius to the drive
Global Data is set in the menus under Communication, within the SBI setting.

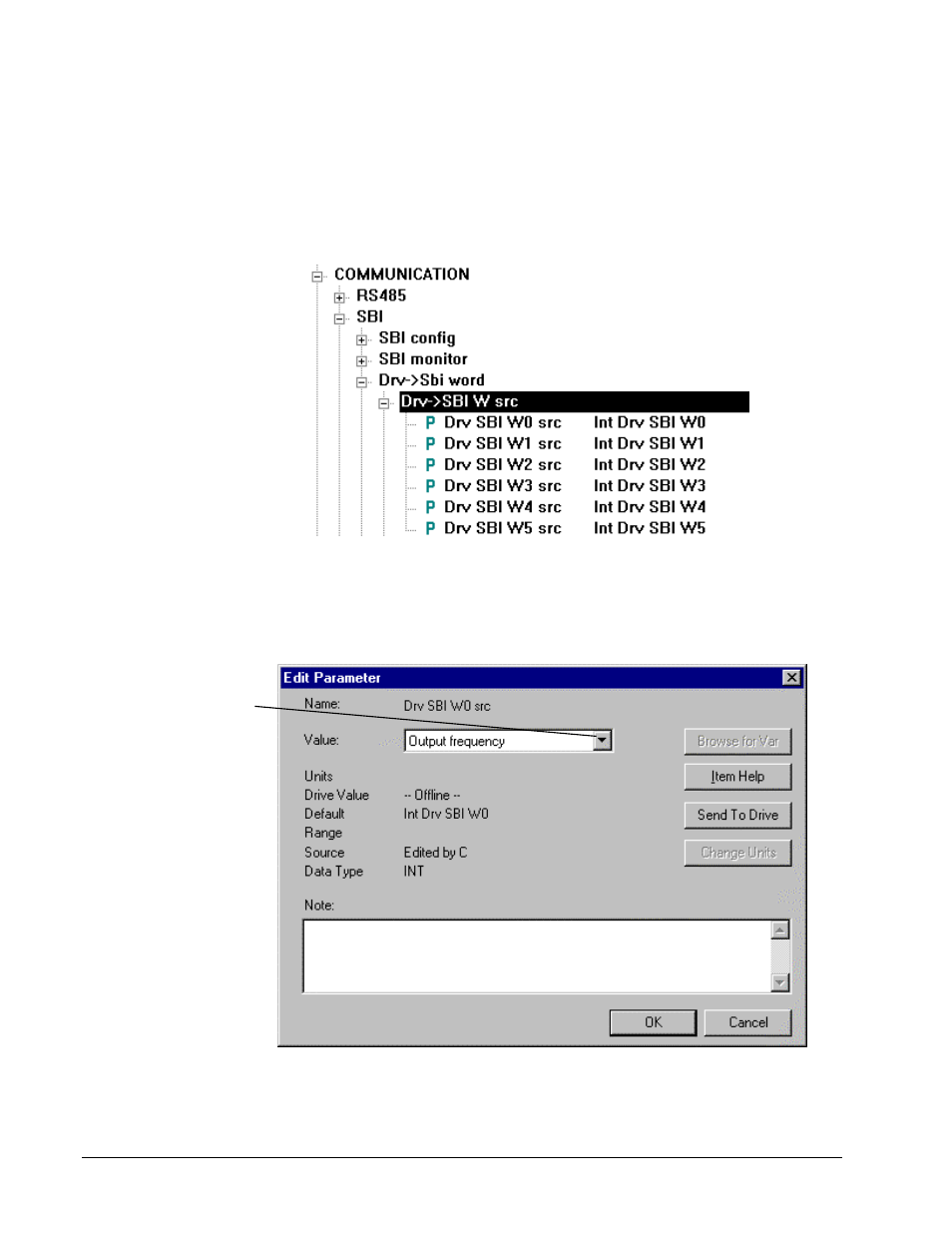

Ø To send a specific variable
Or click the right mouse
button and select Modify.
1. From the Outline View, click on the specific item.
2. From the Edit menu, select Modify. The Edit Parameter dialog box displays.
From the drop-down
list, select the variable
that you want to
exchange.
Click
OK.
