GE Industrial Solutions Control System Toolbox For an AV-300i Version 2 Drive User Manual
Page 57
GEH-6412 Toolbox for AV-300i Version 2 Drive
Chapter 4 Configuring an AV-300i Version 2 Drive
••••
4-27

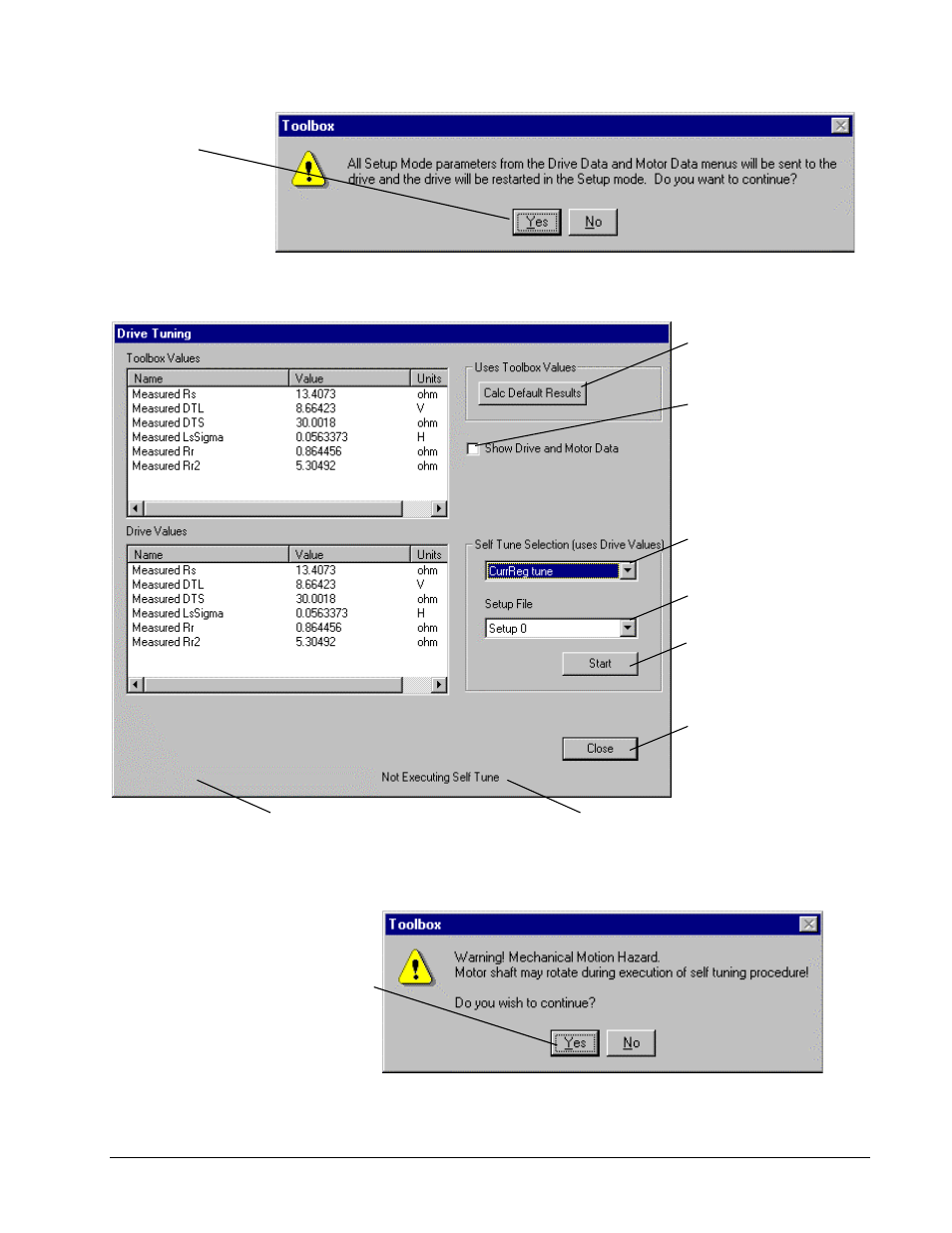

Click Yes.
The drive is restarted
in Setup mode and
the Drive Tuning
dialog box displays.
Select the desired self-tune
from the drop-down list.
Displays the state of the
self-tune displays.
Click to start the self-tune
test process.
Click to complete the
self-tune process.
Displays any problems that were
encountered during the self-tune process.
See GEI-100429 to resolve diagnostic
messages
Check to display the Drive
Motor and Drive data.
Click to send the toolbox
values to the drive and
calculate the default
starting values for
self-tuning.
Select the setup file where
the self-tune results will be
saved.
If you receive this warning
message box when you click
Start, click Yes to continue.
The Executing Self Tune
progress box displays.
