Feedbacks from drive to the isbus – GE Industrial Solutions Control System Toolbox For an AV-300i Version 2 Drive User Manual
Page 64
4-34
••••
Chapter 4 Configuring an AV-300i Version 2 Drive
GEH-6412 Toolbox for AV-300i Version 2 Drive
Feedbacks from Drive to the ISBus
Ø To set a feedback variable
Or click the right mouse
button and select Modify.

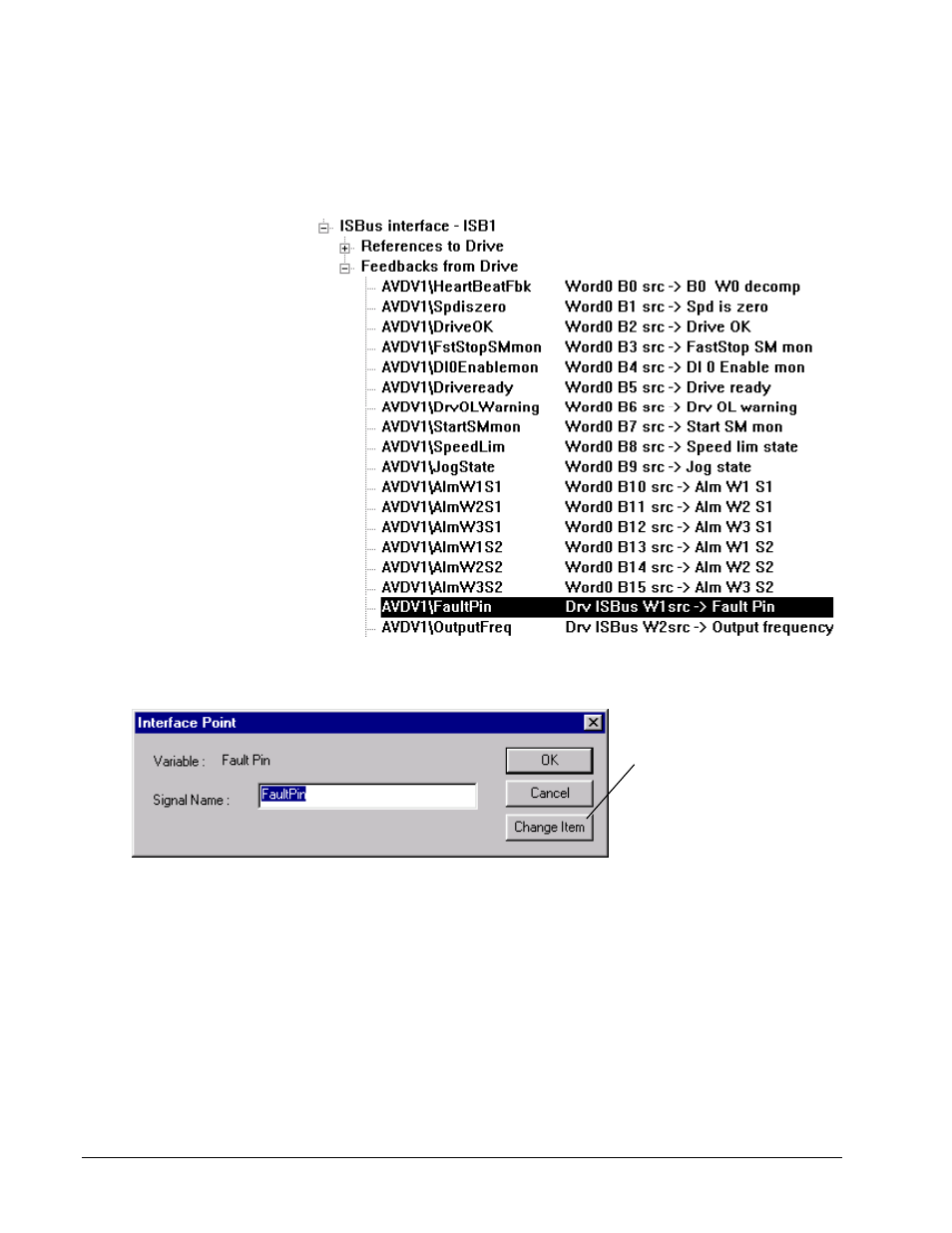

1. From the Outline View, click on the desired item (for example, Drv ISBus
W1src).
2. Click on the item name. From the Edit menu, select Modify. The Interface
Point dialog box displays.
Click to display the
Edit Parameter dialog
box, from where you
can choose another
signal.
This signal name can
also be customized.
If any changes to the map are made, you will be prompted to update the SDB.
