Page 38
4-8
••••
Chapter 4 Configuring an AV-300i Version 2 Drive
GEH-6412 Toolbox for AV-300i Version 2 Drive
Ш
Ш
Ш

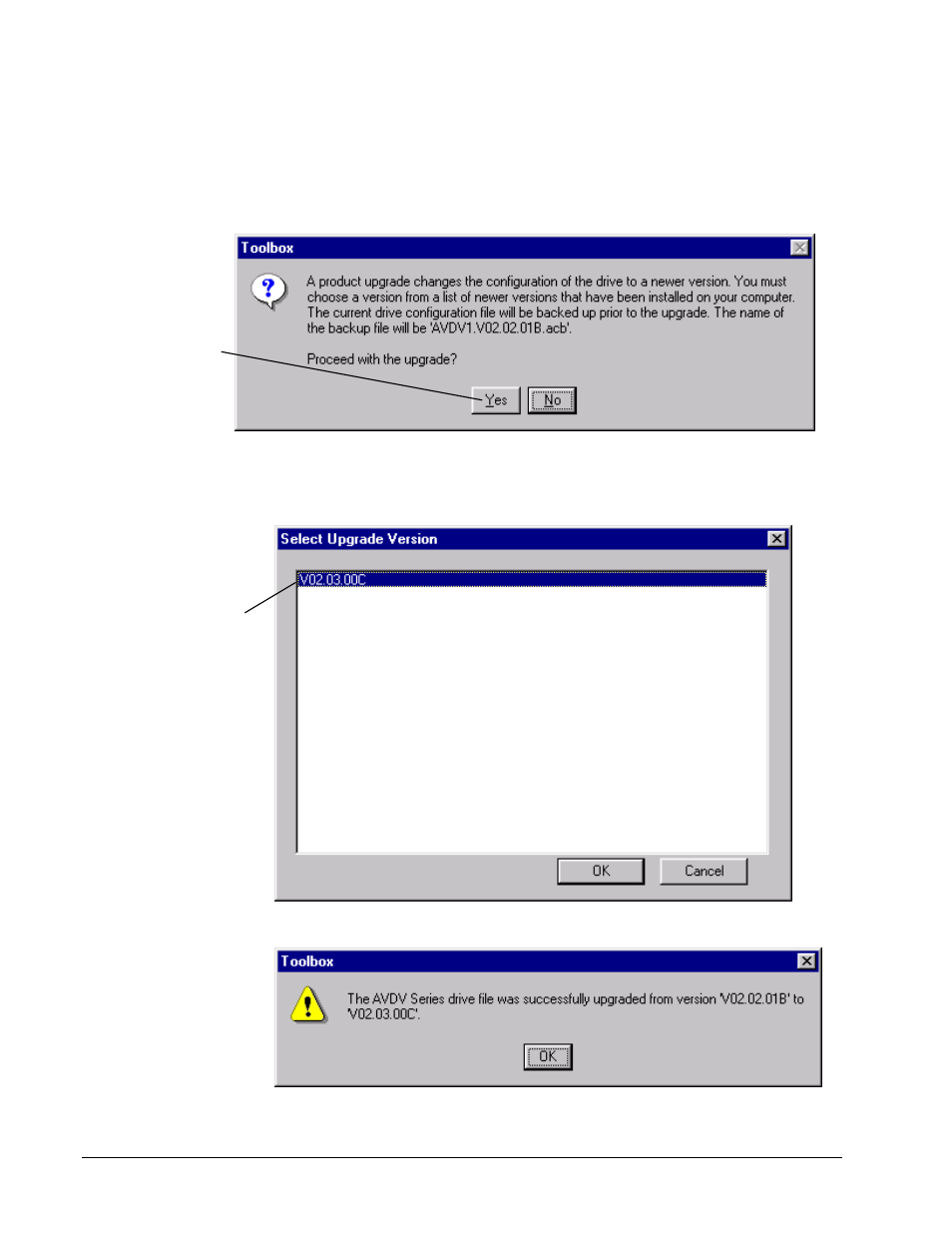

Ш To upgrade a configuration file
1. Make sure the new required version is installed (refer to Chapter 3).
2. From the current drive configuration file, such as version V02.02.01B described
above, from the File menu, select Upgrade…. The following message box
prompts to proceed you with the upgrade.
Click Yes
to upgrade the drive.
The Select Upgrade
Version dialog box
displays.
Selecting the Upgrade Version
When you select to upgrade the drive, the Select Upgrade Version dialog box
displays all of the newer installed versions.
Select the
updated version.
Click OK.
The following dialog box displays, showing that the version upgrade was successful.
