GEH-6412 Toolbox for AV-300i Version 2 Drive Chapter 3 Using the Toolbox •••• 3-3
Starting the Toolbox
To create a device, refer to
Chapter 4.
The toolbox is started from the Windows NT or 95 Workstation.
Ш
Ш Ш Ш To start the toolbox
1. Click Windows button, Programs, GE Control System
Solutions and Control System Toolbox.

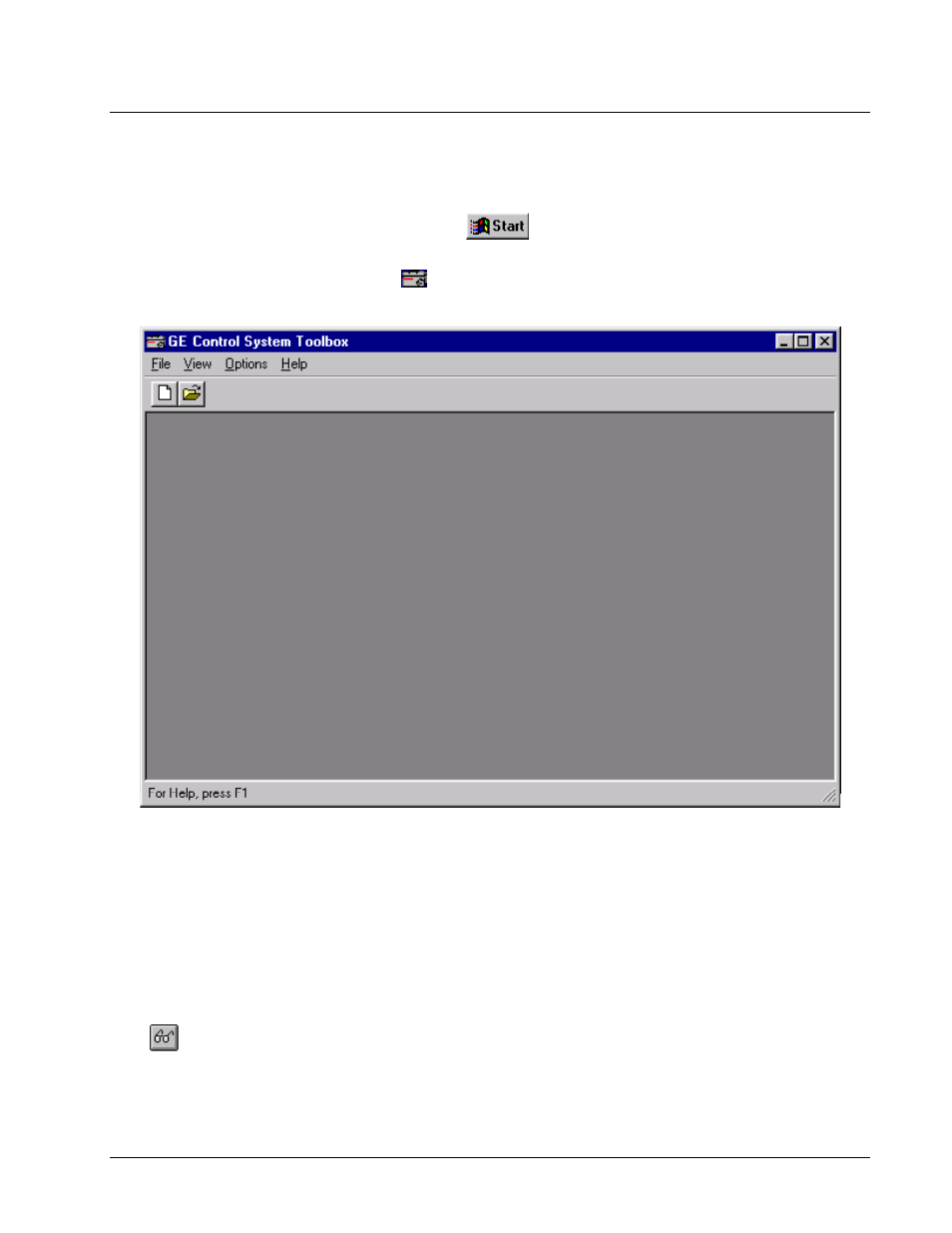

2. Click the toolbox icon. The toolbox Work Area displays. It is blank until a
device is created or opened.
Work Area
If more than one drive is open
in the Work Area, each drive
will have a window with an
Outline View and Summary
View. A drive’s runtime action is configured using the toolbox. From the File menu, begin
a New configuration or Open a previously saved configuration file. The toolbox
Work Area is the main screen and contains the following:
Outline View (left side) displays the configuration in a hierarchy, with the drive
name as the first item and other configuration items listed in levels below it.
Click to display the
Detached Summary View.
Summary View (right side) displays information for the item highlighted in the
Outline View. For example, in a drive configuration, the item Block diagram
displays block diagrams, which can be configured within this view.
Detached Summary View is a separate window from the Work Area window and
displays a copy of the diagram. This window can be sized, configured, and edited.
