Page 59
GEH-6412 Toolbox for AV-300i Version 2 Drive
Chapter 4 Configuring an AV-300i Version 2 Drive
••••
4-29
Self-tune the Speed Regulator
The speed regulator is tuned up in the active regulation mode.
Or click
Ш
Ш
Ш
Ш To self-tune the speed regulator on a drive
1. Create or open an AV-300i Version 2 drive (see the section, Creating an
AV-300i Version 2 Drive).
2. From the Device menu, select Online.
3. From the Device menu, select Self-Tune, and then select Speed Regulator.

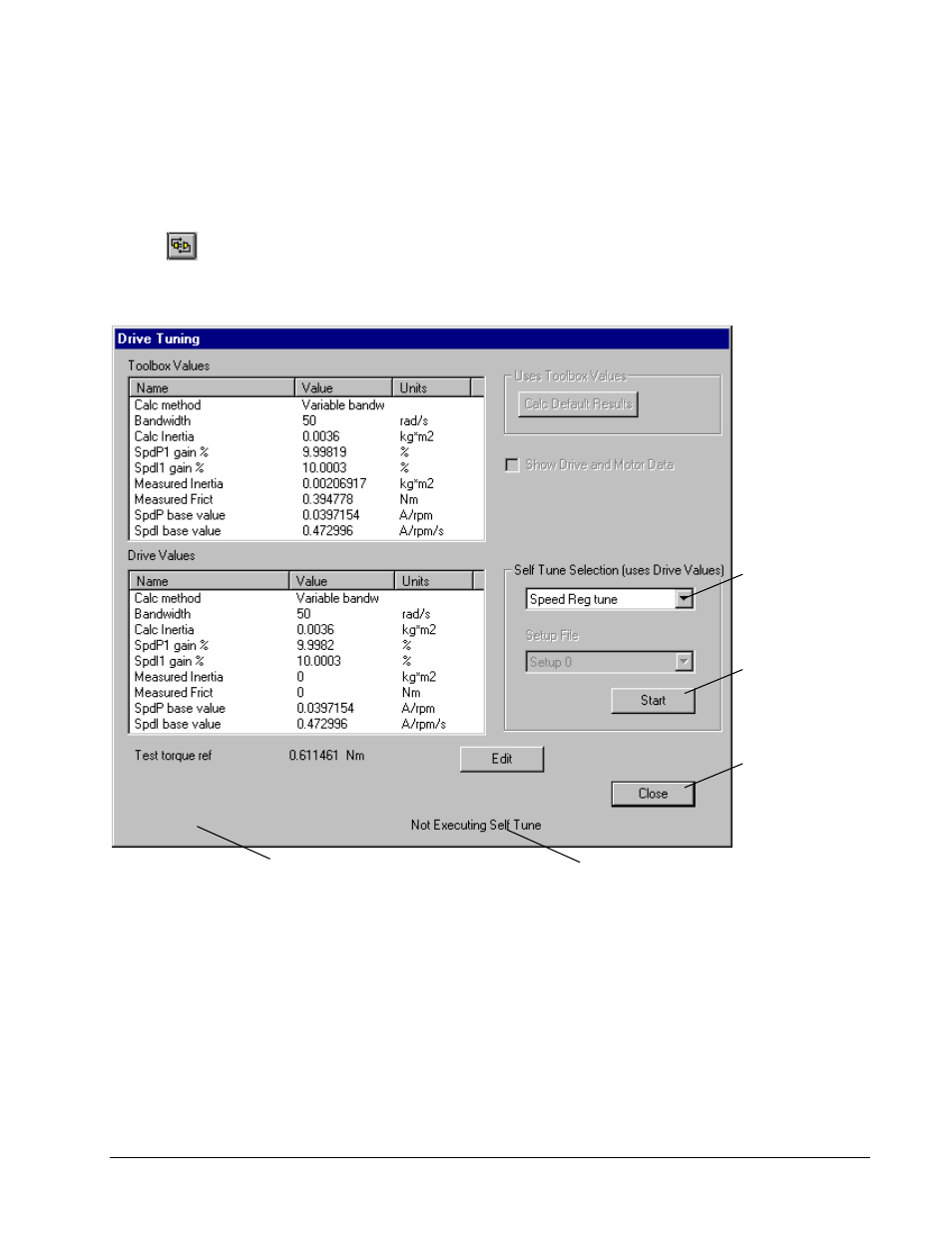

The Drive Tuning dialog box displays.
Select the desired
self-tune from the
drop-down list.
Displays the state of the
self-tune displays.
Click to start the
self-tune test
process.
Click to end the
process.
As the self-tune progresses, additional
messages may display here.
See GEI-100429 to resolve diagnostic
messages
