GEH-6412 Toolbox for AV-300i Version 2 Drive Chapter 4 Configuring an AV-300i Version 2 Drive •••• 4-21

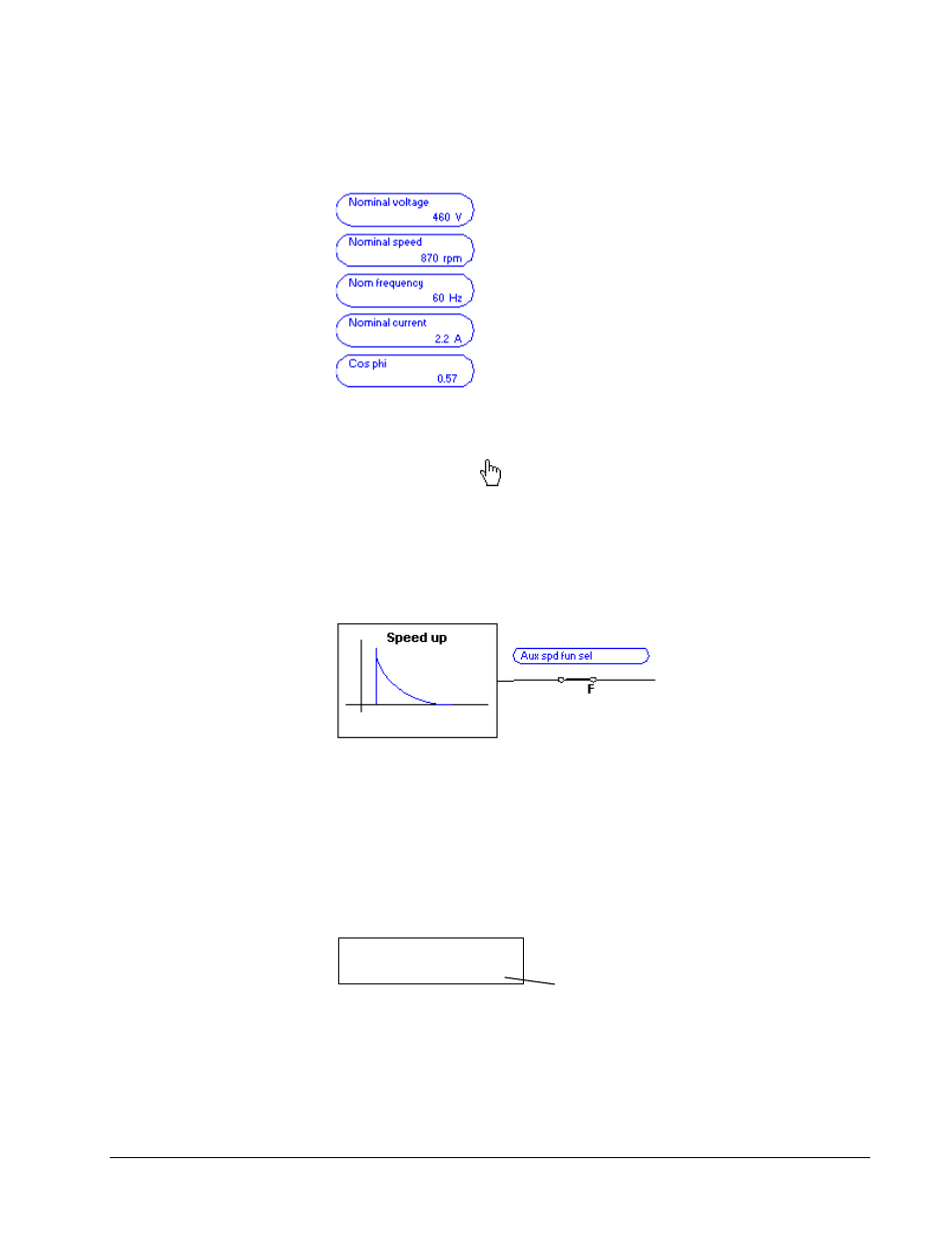

Modify Parameters from Diagram
Parameters can be modified from the diagram. In the diagram, the toolbox displays
parameter names are displayed in blue as follows:
Ш Ш Ш Ш To modify a parameter
w From the block diagram, move the mouse pointer over the parameter until it
changes to a hand . Click on the parameter. The Edit Parameter dialog box
displays (refer to the section, Edit Parameters).
Parameter Jumpers
In the Overview diagrams, parameter jumpers show how different paths of the block
diagram are connected together.
Live Data Display
If the toolbox is connected to the drive, all variables on the diagram display live
values. On the Status bar, the scan rate shows the time it takes to update all the
variables on the currently selected page.
Variables
Green values are valid
numbers received from the
drive. Variables can be monitored by the toolbox. Live values display in green.
Actual spd (rpm)
422 rpm
Live value
