GE Industrial Solutions Control System Toolbox For an AV-300i Version 2 Drive User Manual
Page 58
4-28
••••
Chapter 4 Configuring an AV-300i Version 2 Drive
GEH-6412 Toolbox for AV-300i Version 2 Drive

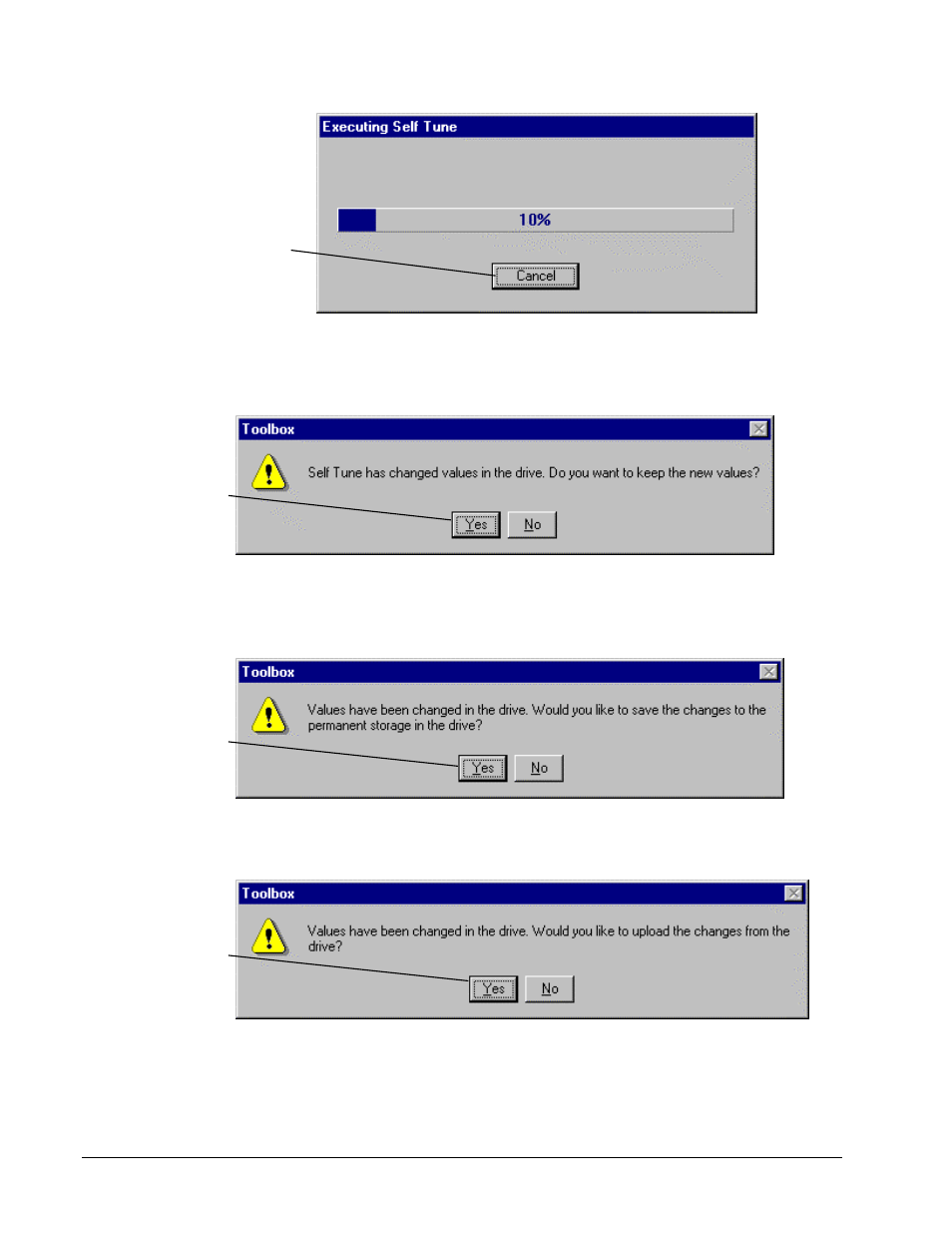

Click to abort the
Self-Tune process.
When tuning is complete, click Close to complete the operation.
If values have changed in the drive, the following dialog box displays, prompting you to
save the new values.
A normal current
tune operation would
include both the
Current Regulator
tune-up and a Flux
Regulator tune-up.
Click to save the
new values.
The Save operation is performed and the drive is restarted in the regulation mode.
Click to save the
new values
permanently.
With one more message box, you are prompted to upload
the changes to configuration file loaded in the toolbox.
Click to upload
the changes.
Another message box displays, prompting you to save the
values to a permanent non-volatile storage in the drive.
