Note: File uploading is supported only in console menu. For more information about file uploading,
please refer to 6.10 User File Uploading section.

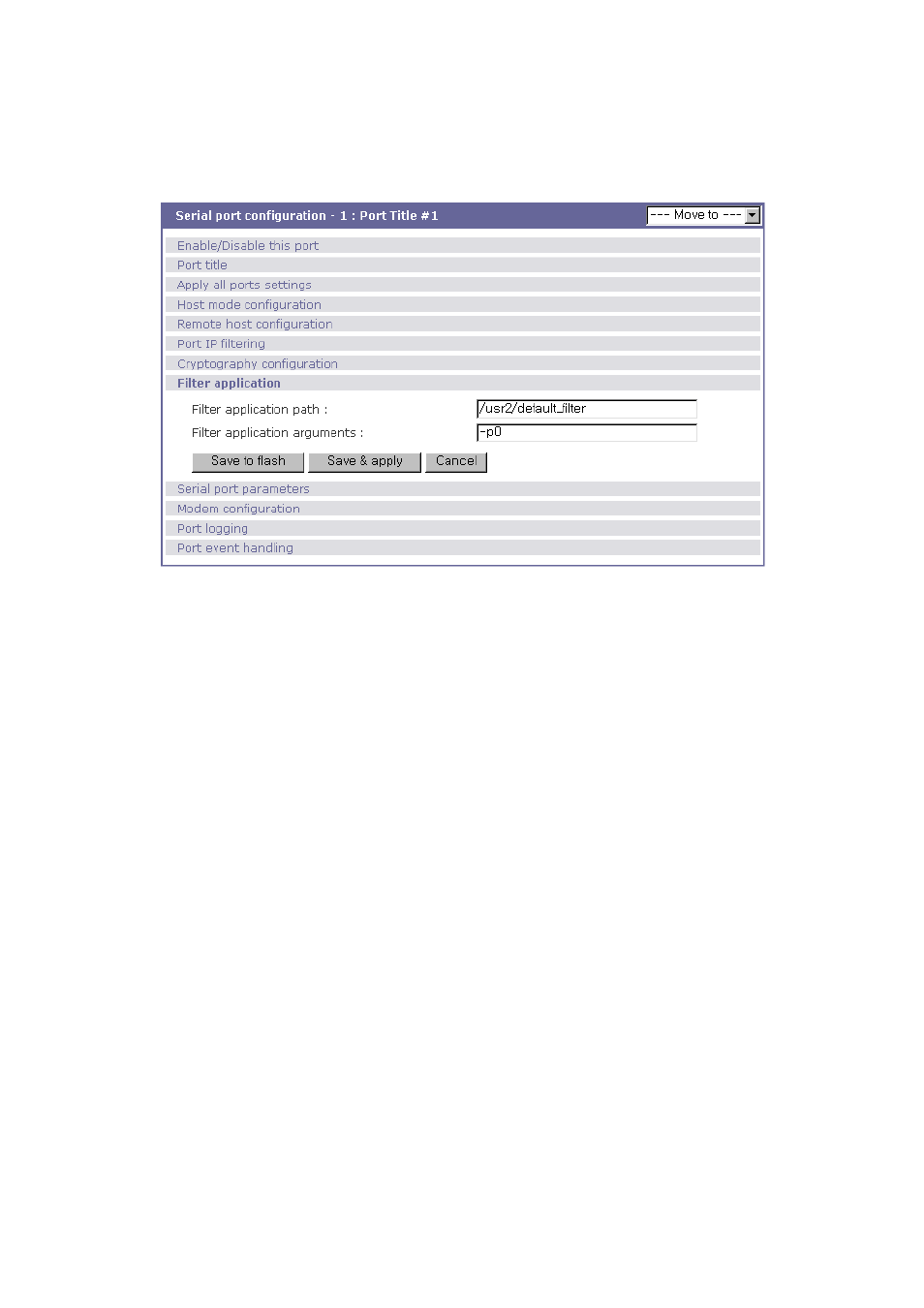

Figure 4-14 Filter application
4.2.9. Serial Port Parameters
To connect the serial device to the STS Series serial port, the serial port parameters of the STS Series
should match exactly to that of the serial device attached. The serial port parameters are required to
match this serial communication. The parameters required for the serial communication are: UART
type, baud rate, data bits, parity, stop bits, flow control DTR/DSR behavior and inter-character timeout.
First of all, the STS Series and the serial device must agree on the serial communication type, which
is RS232 mode. For more information about pin out of serial port and wiring diagram, please refer to 0
Appendix 1. Connections section.
 Baud rate
The valid baud rate for the STS Series is as follows:
75, 150, 200, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, and 230400
The factory default setting is 9600.
 Data bits
Data bits can be between 7 bits and 8 bits. The factory default setting is 8 bits.
