16
The [100Mbps] lamp will not turn on if the current network connection is 10Base-T.

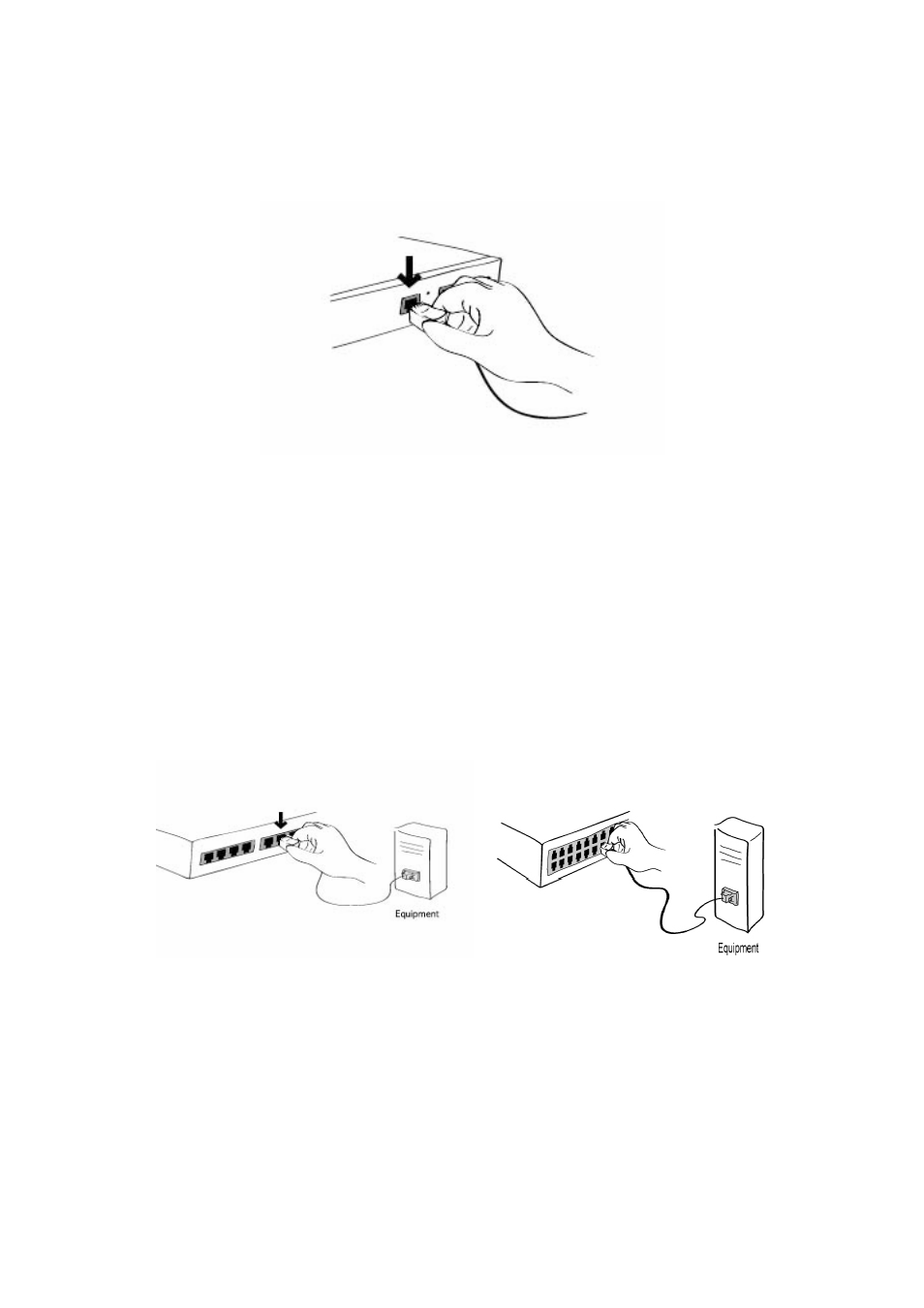

Figure 2-5 Connecting a network cable to the STS400/800/1600
2.2.3. Connecting To The Device
Connect the console cable to the STS Series serial port. To connect to the console port of the device,
the user needs to consider the type of console port provided by the device itself. In the STS Series
cable kit package, plug-in adapters are provided for the easier connectivity to the user’s devices.
Please refer to the Appendix 1. Connections for details.
Figure 2-6 Connecting a equipment to the STS400/800(Left) / STS1600(Right)
2.2.4. Accessing The System Console
There are several ways to access the STS Series. These methods are dependent on whether the user
is located at a local site or a remote site, or whether she requires a menu-driven interface, graphic
