2.2.1. Connecting The Power
Connect the power cable to the STS Series. If the power is properly supplied, the [Power] lamp will
light up green.

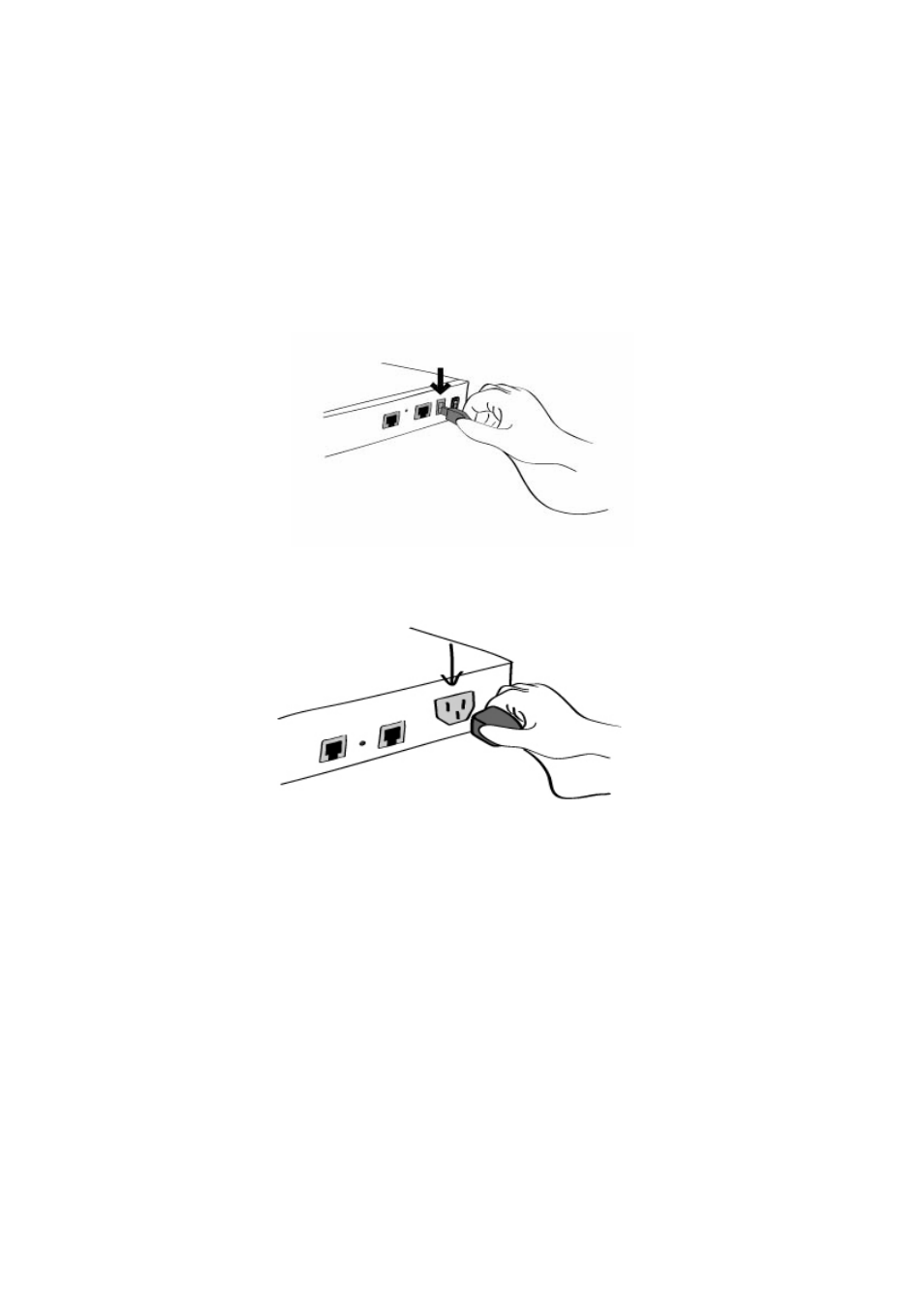

Figure 2-3 Connecting the power to the STS400/800
Figure 2-4 Connecting the power to the STS1600
2.2.2. Connecting To The Network
Plug one end of the Ethernet cable to the STS Series Ethernet port. The other end of the Ethernet
cable should be connected to a network port. If the cable is properly connected, the STS Series will
have a valid connection to the Ethernet network. This will be indicated by:
The [Link] lamp will light up green.
The [Act] lamp will blink to indicate incoming/outgoing Ethernet packets
The [100Mbps] lamp will light up green if the STS Series is connected to 100Base-TX network
