Chapter 5
– 53 – PCI-1710 series User’s Manual Advantech Co., Ltd.
www.advantech.com
Step 3: According to the difference between the output voltage from
D/A channel and the value in the multimeter, adjust the gain,
bipolar offset and unipolar offset registers (Fig. 5-19)

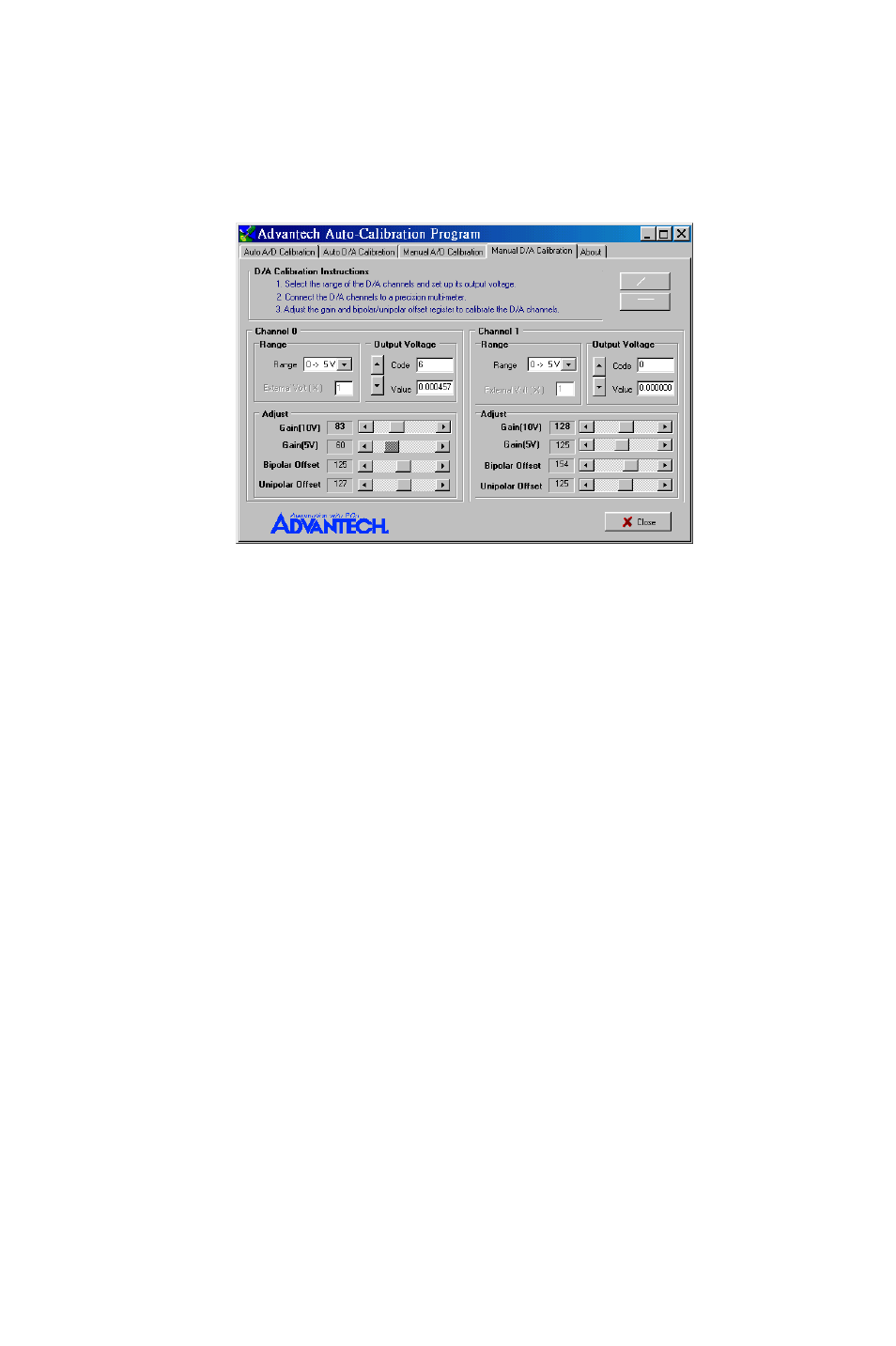

Figure 5-19: Adjusting registers
Step 4: Adjust registers until they fall between the output voltage
from the D/A channel and the value in the multimeter.
