Chapter 5

– 46 –

PCI-1710 series User’s Manual

Advantech Co., Ltd.
www.advantech.com

A/D channel Auto-Calibration

Step 4: Click the Auto A/D Calibration tab to show the A/D channel

auto-calibration panel (Fig. 5-6). Press the start button to
calibrate A/D channels automatically.

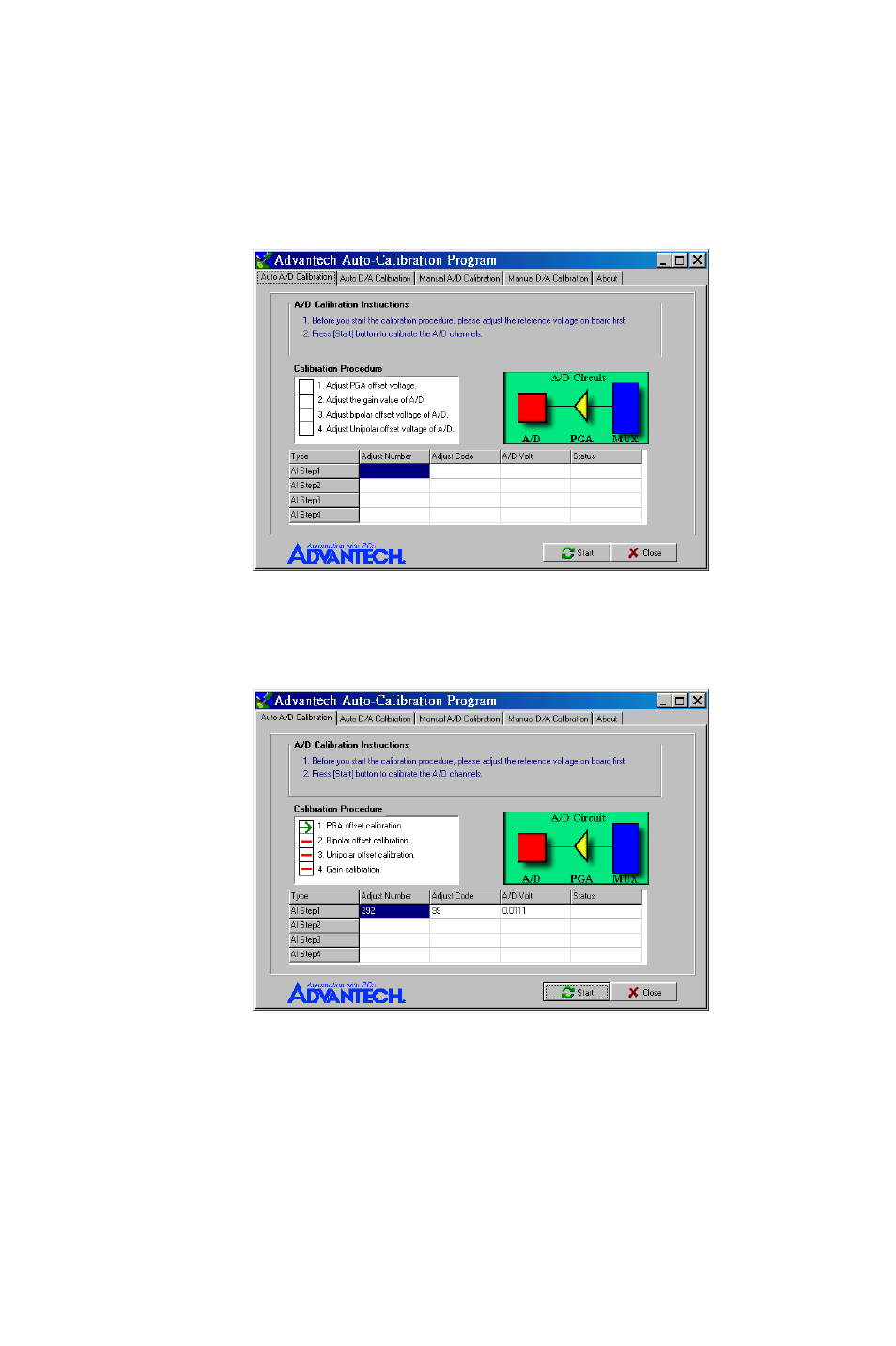

Figure 5-6: Auto A/D Calibration Dialog Box

Step 5: The first A/D calibration procedure is enabled (Fig. 5-7).

Figure 5-7: A/D Calibration Procedure 1
