Chapter 5

– 51 –

PCI-1710 series User’s Manual

Advantech Co., Ltd.
www.advantech.com

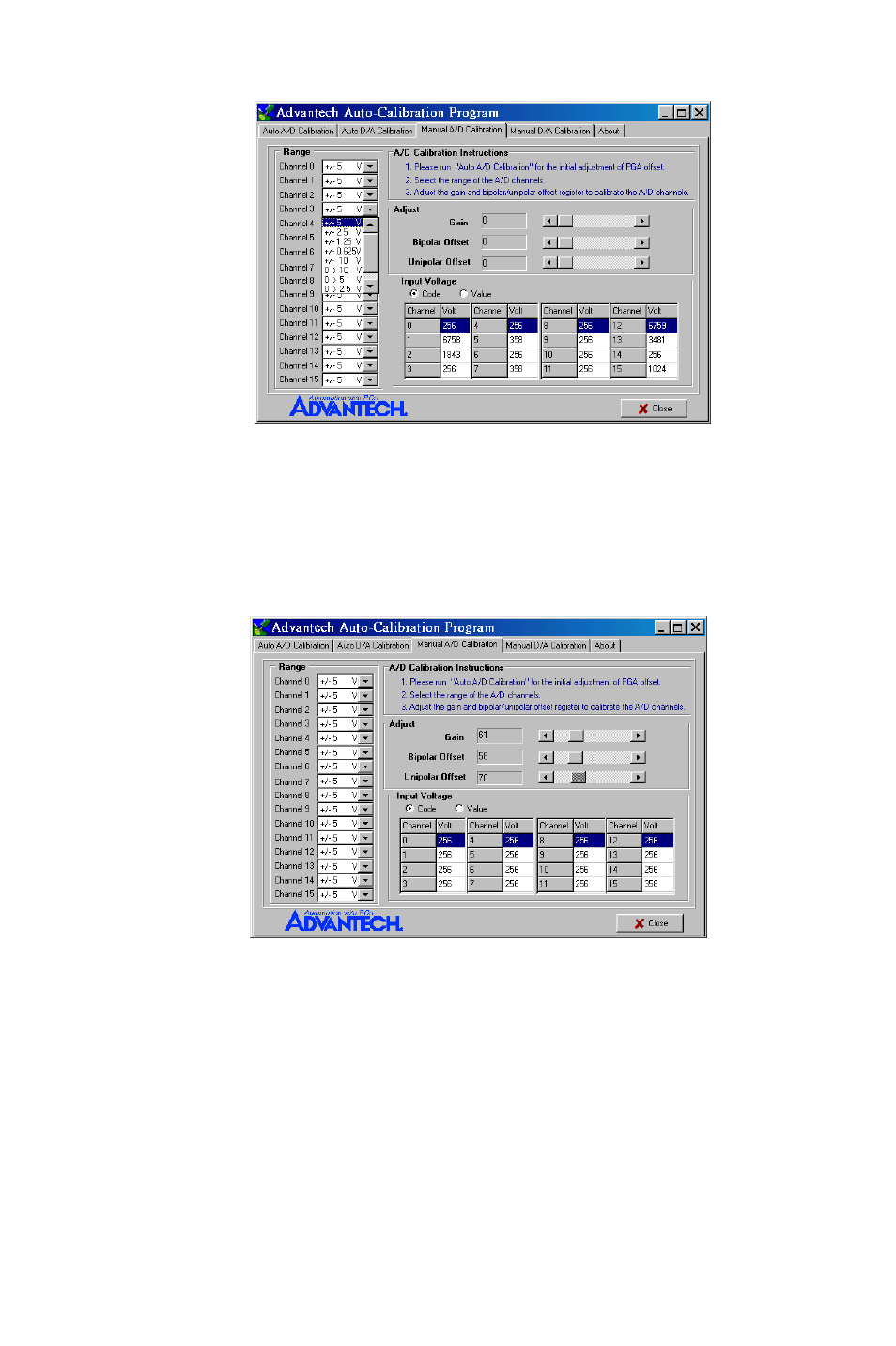

Figure 5-15: Selecting Input Rage in Manual A/D Calibration panel

Step 2: According to the difference between reference voltage and

receiving data in PCI-1716/1716L, adjust the gain, bipolar
offset and unipolar offset registers (Figure 5-16)

Figure 5-16: Adjusting registers
