9. Appendices VlinxMESR9xx Modbus Gateway
Page 78 Manual Documentation Number MESR9xx-2113m
www.bb-elec.com/
www.bb-europe.com/

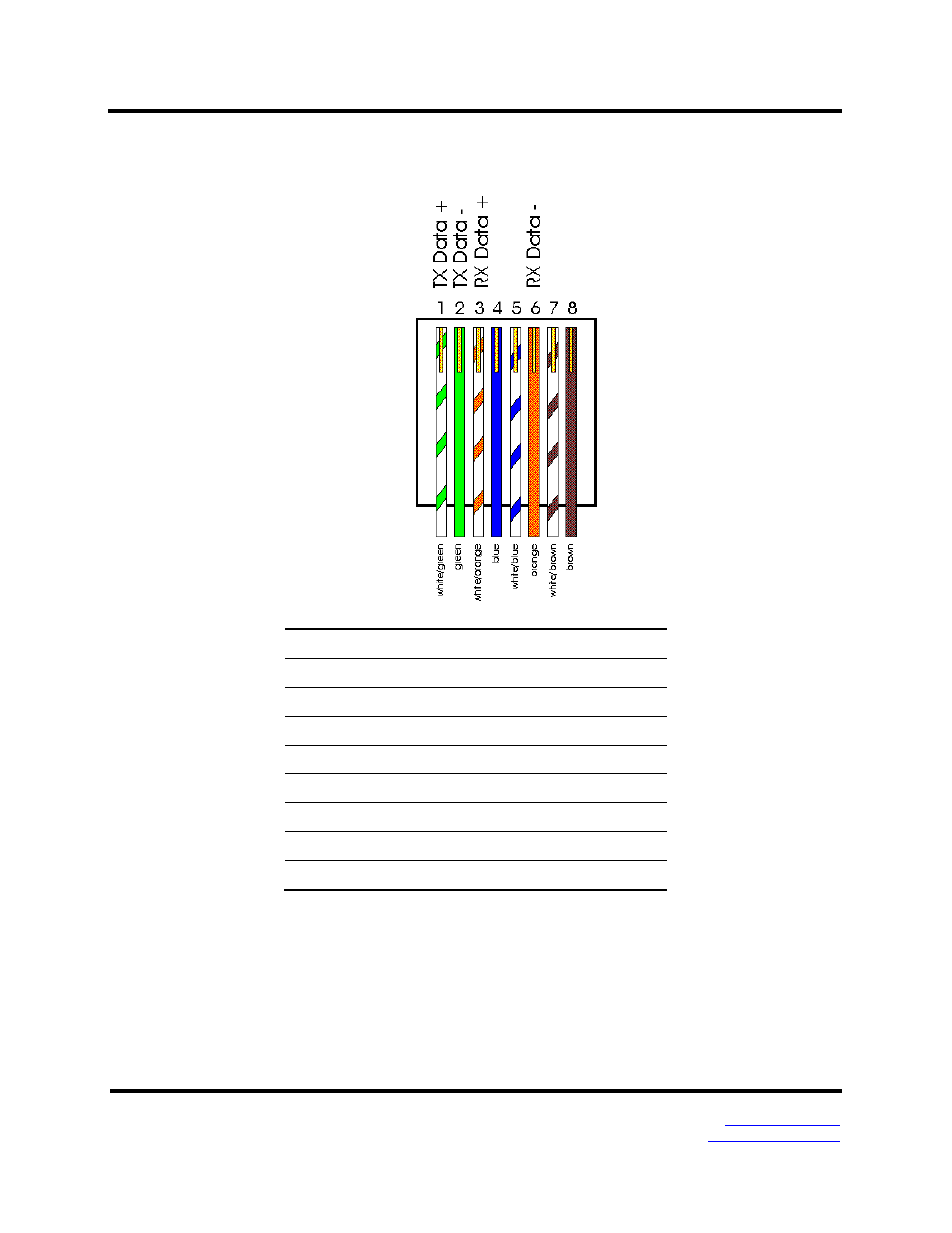

Standard Ethernet Cable RJ-45 Pin-out
RJ-45 Pin Signal Wire Color
1 TX+ White-Green
2 TX+ Green
3 RX+ White-Orange
4 Not used Blue
5 Not used White-Blue
6 RX- Orange
7 Not used White-Brown
8 Not used Brown
