2. Hardware VlinxMESR9xx Modbus Gateway
Page 6 Manual Documentation Number MESR9xx-2113m
www.bb-elec.com/
www.bb-europe.com/
2 2 . . M M E E S S R R 9 9 x x x x M M o o d d b b u u s s G G a a t t e e w w a a y y H H a a r r d d w w a a r r e e
MESR9xx Modbus Gateways are enclosed in DIN rail mountable enclosures and feature
LED indicators, power, Ethernet and serial connectors and a recessed Mode switch.
Package Checklist
MESR9xx Modbus Gateways are shipped with the following items included:

MESR9xx Modbus Gateway Module

Quick Start Guide

CD with User Manual, Quick Start Guide and firmware, and configuration
software.
MESR9xx Modbus Gateway Enclosures and Mounting
All MESR9xx Modbus Gateway models are built into similar enclosures. Modules are
DIN rail mountable. The MESR92x (shown below) enclosure is larger than the
MESR90x.See the specification table for dimensions.

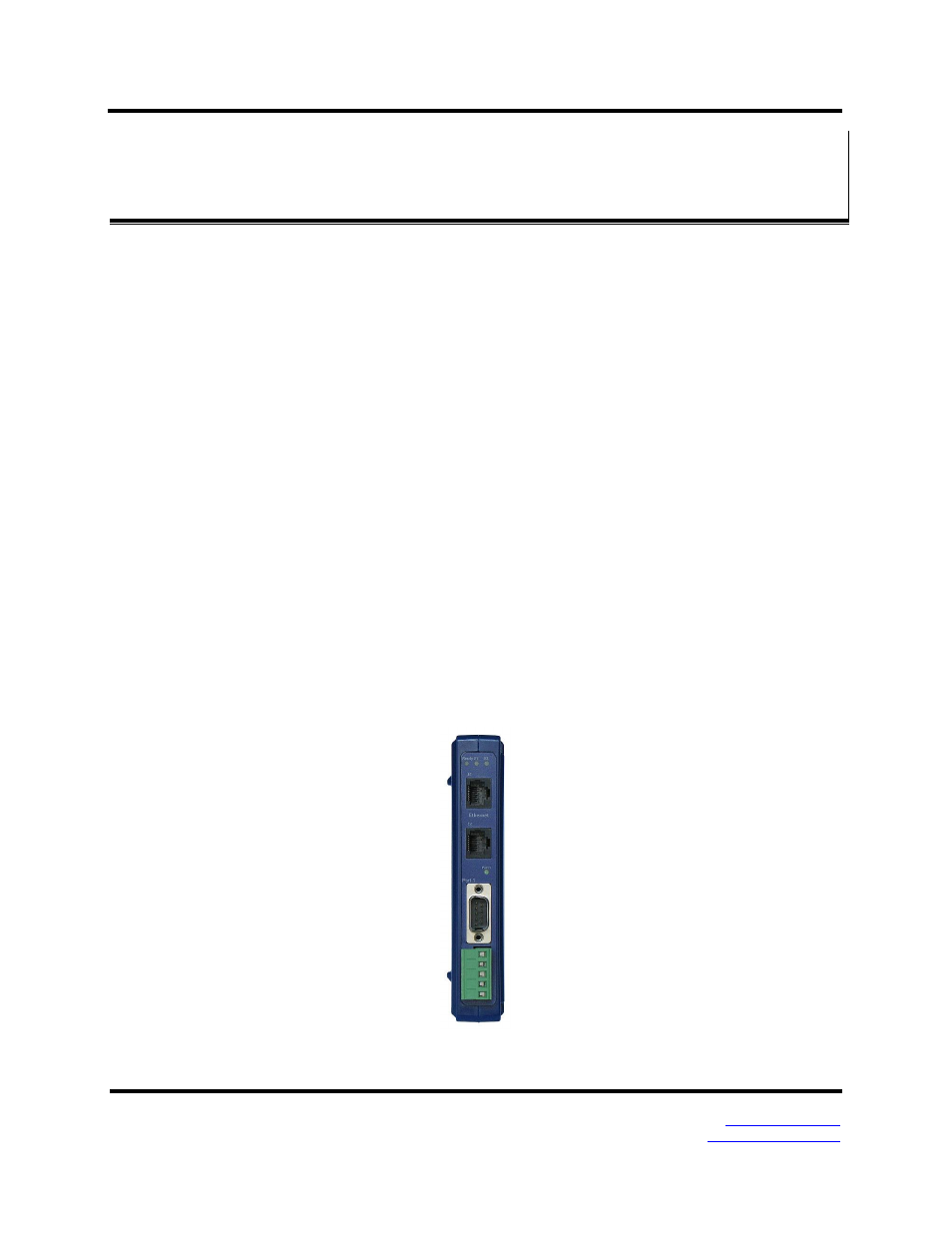

Figure 2. Front View of an MESR921 Modbus Gateway
