3. Setup and Connections VlinxMESR9xx Modbus Gateway
Page 28 Manual Documentation Number MESR9xx-2113m
www.bb-elec.com/
www.bb-europe.com/
Figure 35. TCP Connection Filter “Allow Specific Range of IP Addresses to Connect
10. PORT x Serial Settings
a. To access this screen, click the “Next” button or click the Port X Serial link on the
left side of the screen. X = The Serial Port number (1 or 2).
b. This screen allows you to change the serial port settings.

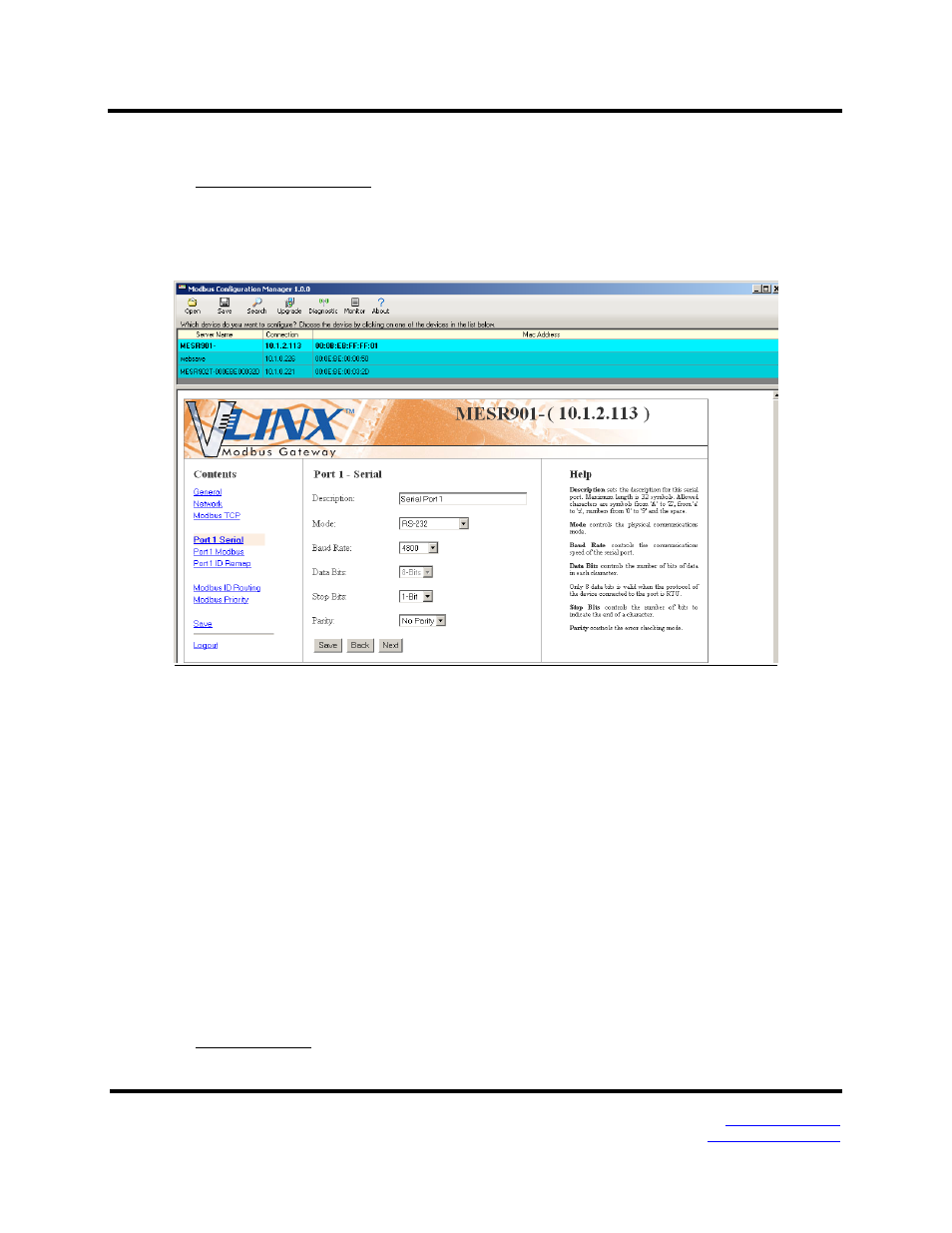

Figure 36. Serial Port Screen
c. Description - sets the description for this serial port. Maximum length is 32
symbols. Allowed characters are symbols from 'A' to 'Z', from 'a' to 'z', numbers
from '0' to '9' and the space.
d. Mode – Controls the physical communications mode for the. The Mode can be
RS-232, RS-422 (4-Wire), RS-485 (2-Wire), or RS-485 (4-Wire).
e. Baud Rate – Controls the communications speed of the serial port. The Baud Rate
can be 2400, 7200, 9600, 14400, 19200, 14400, 28800, 38400, 57600, 115200, or
230400.
f. Stop Bits – Controls the number of bits to end a character. Choices are 1 or 2.
g. Parity – Controls the error checking mode. Choices are Odd, Even, Mark, or
Space.
h. Save settings by clicking the “Save” button.
11. Port X Modbus
