e. The third box in line is the starting ID of a range to remap to. Valid value range is
from 1 to 255.
f. The fourth box in line is auto filled in based on the range filled in the first 3
boxes. Valid value range is from 1 to 255.
g. Save settings by clicking the “Save” button.
13. Modbus ID Routing
a. To access this screen click the “Next” button or click the “Modbus ID Routing”
Link on the left side of the screen.
b. This screen allows you to set the Modbus Slave ID routing.

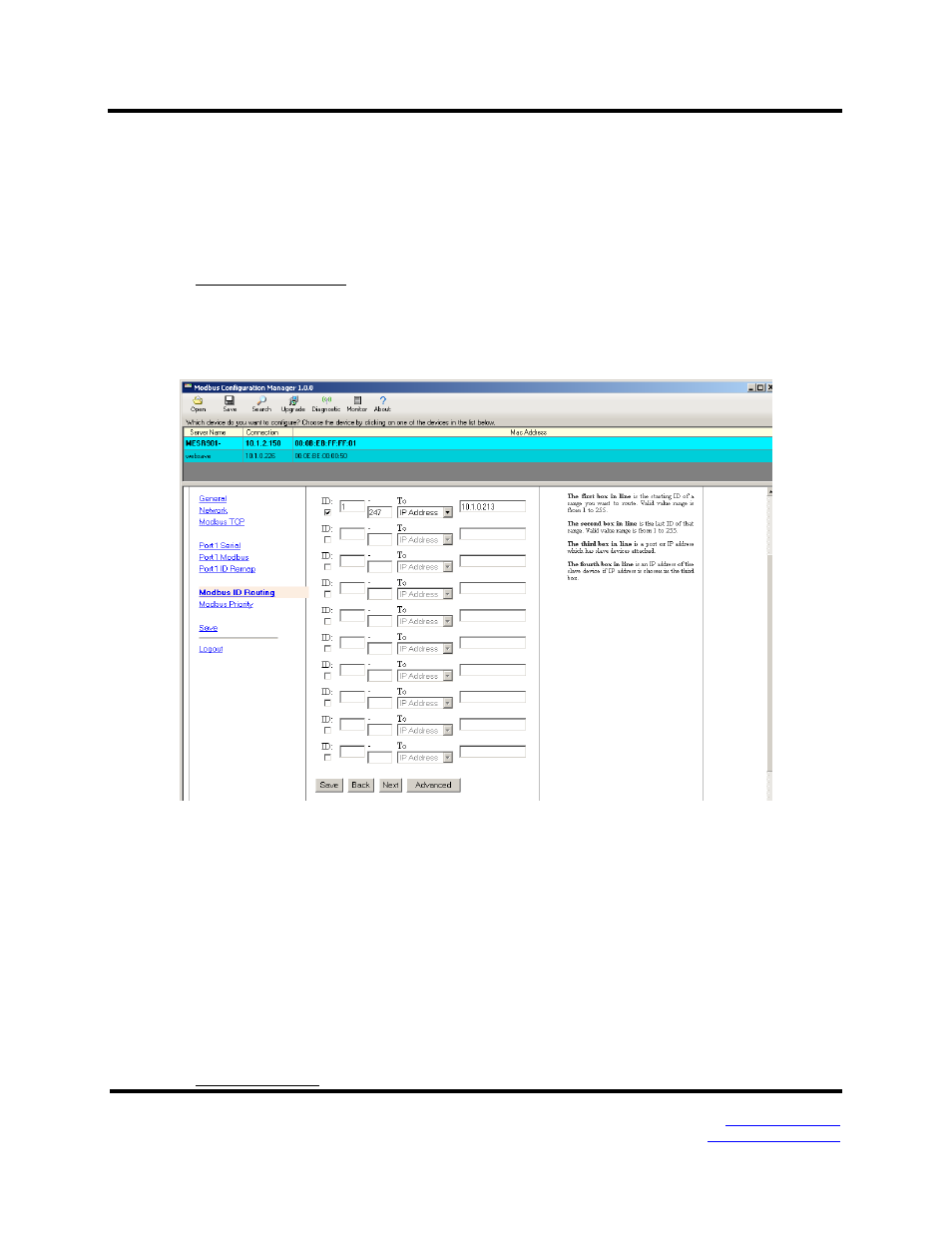

Figure 39. Modbus ID Routing Screen
c. The first box in line is the starting ID of a range you want to route. Valid value
range is from 1 to 255.
d. The second box in line is the last ID of that range. Valid value range is from 1 to
255.
e. The third box in line is a port or IP address which has slave devices attached.
f. The fourth box in line is an IP address of the slave device if IP address is chosen
in the third box.
g. Save settings by clicking the “Save” button.
14. Modbus Priority
