8. Modbus Help
VlinxMESR9xx Modbus Gateway
Page 55
Manual Documentation Number MESR9xx-2113m
www.bb-elec.com/
www.bb-europe.com/
1. In this example, and ASCII Master is connected to Serial Port 1 and an RTU Master
is connected to Serial Port 2. Configure the serial ports as appropriate for these
devices.

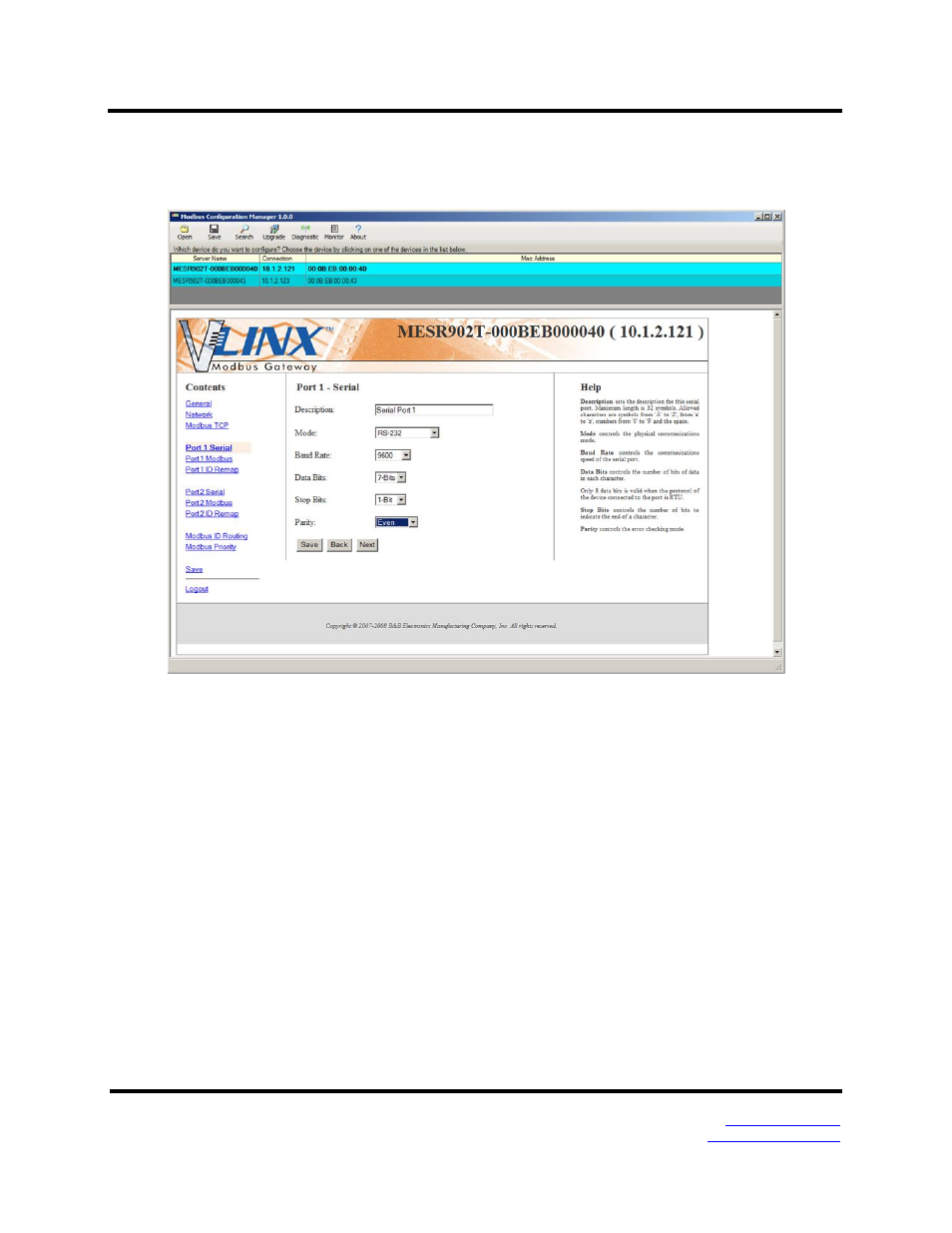

Figure 61. Port 1 Serial
