9. Appendices VlinxMESR9xx Modbus Gateway
Page 76 Manual Documentation Number MESR9xx-2113m
www.bb-elec.com/
www.bb-europe.com/

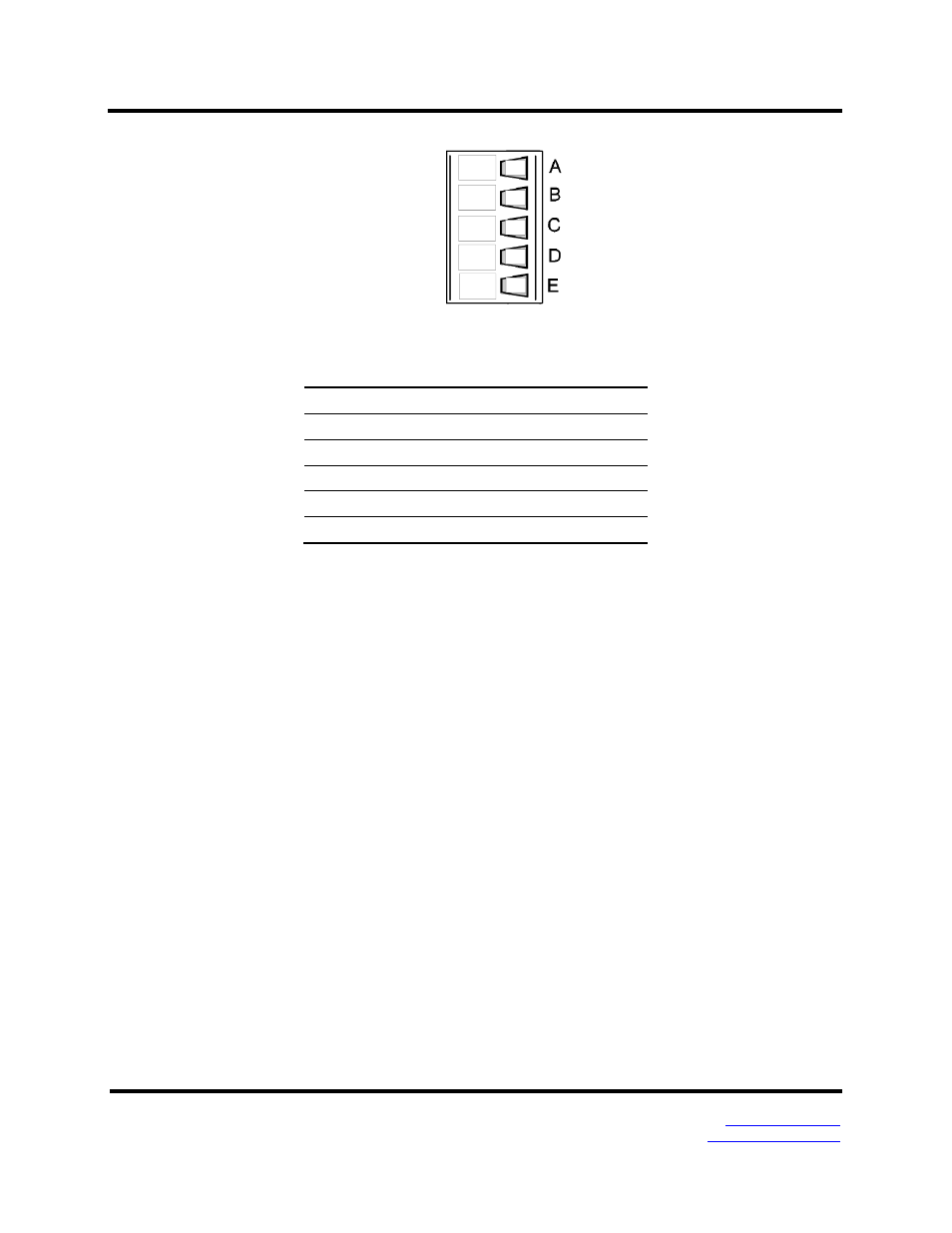

Terminal RS-422/485 4-Wire RS-485 2-Wire
A
TDA (-) Data A (-)
B TDB (+) Data B (+)
C RDA (-) ---
D RDB (+) ---
E GND GND
