d. This area contains helpful information about the configuration screen you are
currently on.
e. This area contains shortcuts to specific functions.
1. Open allows you to load a previously saved configuration file into
your Modbus Gateway.
2. Save allows you to save your configuration to a file. This should not
be confused with the “Save” button described in 6.c above.
3. Search allows you to search for Modbus Gateways on the network.
4. Upgrade allows you to upgrade your Modbus Gateway’s firmware.
5. Diagnostic allows you to test a configured Modbus Gateway. See
Section 5.
6. Monitor allows you to monitor a Modbus Gateway. See Section 5.
7. About contains information about your Modbus Gateway.
7. General Settings

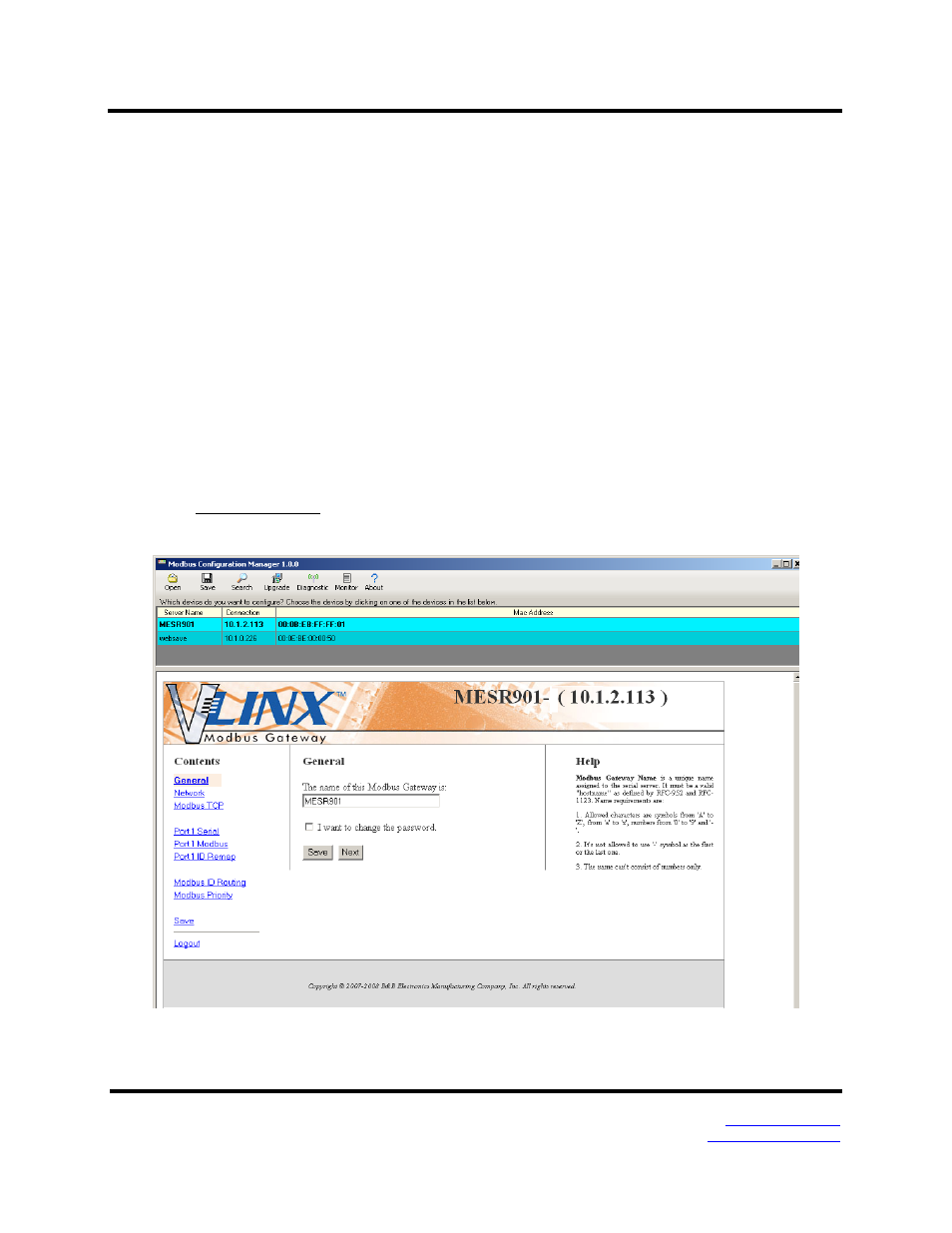

Figure 29. General Settings Screen
