9. Appendices VlinxMESR9xx Modbus Gateway
Page 75 Manual Documentation Number MESR9xx-2113m
www.bb-elec.com/
www.bb-europe.com/
Appendix D: Connector Pinouts

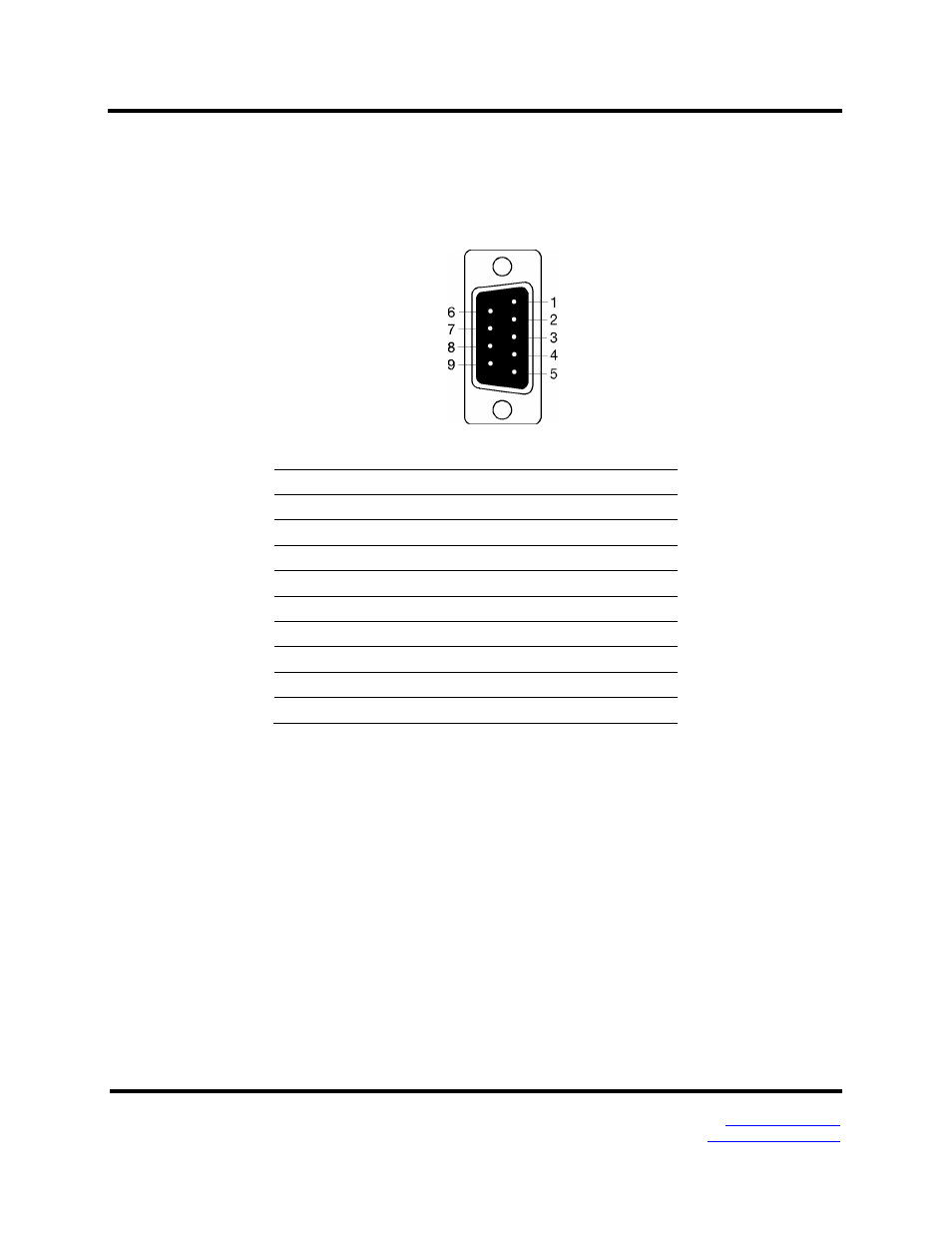

MESR901-x Serial Port Pinouts
DB9 M Pin Direction RS-232
1 Input DCD
2 Input RXD
3 Output TXD
4 Output DTR
5 --- GND
6 Input DSR
7 Output RTS
8 Input CTS
9 Input RI
